TCL Solar S Class: The Complete UK Installer’s Guide

The TCL Solar S Class brings advanced shingled cell technology to the UK residential solar market, available to installers through Bimble Solar.

Built around N-type TOPCon one-third cut shingled cells with bifacial energy generation, these panels deliver between 455W and 465W (TCL-MRxxxDT182-58NS model) with efficiency ratings up to 22.9%.

The shingled design – where overlapping cell strips replace conventional busbars – provides notably superior shade performance compared to standard half-cut panels, making the S Class a compelling choice for UK roofs where chimneys, dormers, and vent pipes create partial shading.

Backed by the financial strength of TCL Group – a Fortune Global 500 company with over $42 billion in annual revenue – and carrying Bloomberg NEF Tier 1 status, the S Class offers UK installers a high-performance residential panel with strong warranty coverage at a competitive price point.

This guide covers everything you need to know about specifying, sourcing, and installing TCL Solar S Class panels in the UK market.

Table of Contents

1. What Is TCL Solar S Class?

2. Who Makes TCL Solar Panels?

3. Shingled Cell Technology Explained

4. TCL S Class Technical Specifications

5. Warranty and Certifications

6. Installation Considerations

7. Why Buy TCL S Class from Bimble Solar?

8. Frequently Asked Questions

9. Next Steps

What is TCL Solar S Class?

The S Class TCL-MRxxxDT182-58NS sits within TCL Solar’s residential product range as a performance-focused panel that prioritises energy yield and shade management.

Where conventional panels use ribbons or busbars soldered across individual cells, S Class panels employ a shingled cell architecture. Full-size N-type TOPCon cells are laser-cut into thirds, then overlapped like roof tiles and bonded with a flexible conductive adhesive. This eliminates the inactive gaps between cells found in traditional designs and removes the need for front-surface busbars.

The practical result is a panel that generates more power per square metre, manages partial shading significantly better than standard half-cut panels, and resists the ribbon failures and micro-cracks that can affect conventionally wired modules over time.

Within the broader TCL Solar portfolio, the S Class complements the E Class (back contact cells, premium segment) and T Class (TOPCon half-cut cells, value segment).

Where the E Class targets homeowners who prioritise clean aesthetics and maximum efficiency, the S Class offers strong all-round performance with particular advantages on shaded roofs – at a more accessible price point than back contact technology.

S Class Product Range

The S Class residential range comprises the TCL-MRxxxDT182-58NS series: 58-cell modules available in three power variants:

Model	Power Output	Efficiency
TCL-MR465DT182-58NS	465W	22.9%
TCL-MR460DT182-58NS	460W	22.7%
TCL-MR455DT182-58NS	455W	22.4%

All variants share identical physical dimensions (1790mm × 1134mm × 30mm) and mounting hole positions, simplifying installation planning and allowing flexibility when matching available stock to project requirements.

At the moment, the highest-rated S Class panel available in the UK is 460W (the TCL-MR460DT182-58NS panel).

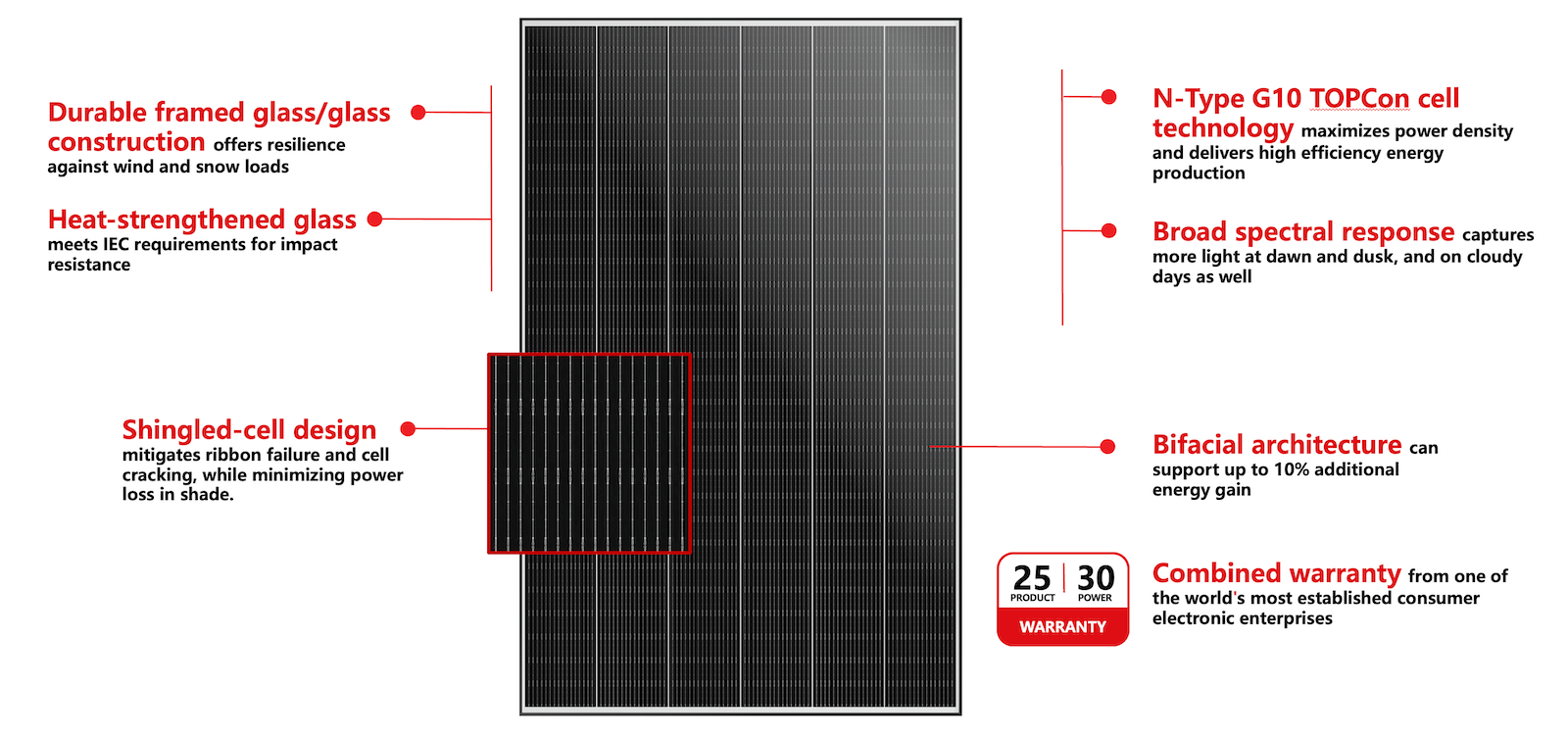

Key Features at a Glance

• N-type TOPCon one-third cut shingled solar cells
• Bifacial design capturing reflected light from the rear surface
• Framed glass-glass construction (2mm + 2mm heat-strengthened)
• 30mm black anodised aluminium frame
• IP68-rated junction box with three bypass diodes
• Stäubli MC4-EVO2A connectors with 1,200mm cable length
• POE encapsulant for enhanced moisture and humidity resistance
• 25-year product warranty and 30-year performance warranty

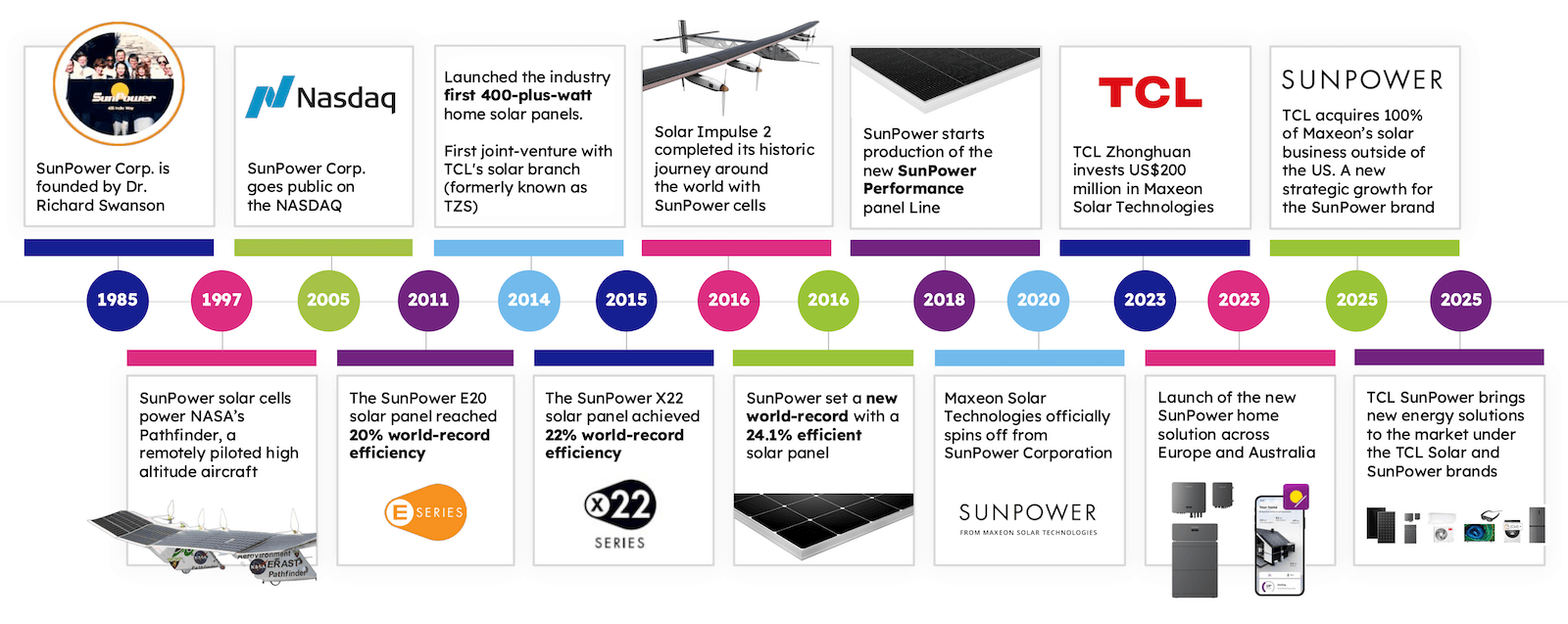

Who Makes TCL Solar Panels?

For UK installers unfamiliar with TCL in the solar context, understanding the company’s background provides important context for the brand proposition you’re presenting to customers.

TCL Technology Group was founded in 1981 and has grown into one of the world’s largest consumer electronics manufacturers. With annual operating income exceeding $42 billion and a presence in over 170 countries, TCL ranks among the global top two for LCD display panels, TV panels, and branded televisions. The company employs over 130,000 people across 32 manufacturing facilities worldwide.

TCL’s involvement in solar extends back to 2014 through its subsidiary TCL Zhonghuan, which became one of the world’s largest producers of monocrystalline silicon wafers – the foundation material for high-efficiency solar cells. This vertical integration, controlling production from raw silicon through to finished panels, distinguishes TCL from manufacturers who rely on third-party cell suppliers.

The SunPower Connection

In late 2024, TCL Group reached agreement to acquire Maxeon Solar Technologies’ sales and marketing operations across Europe, the Middle East, Africa, Asia-Pacific, and Latin America. This transaction, completed in early 2025, brought the SunPower brand under TCL ownership outside North America and created TCL SunPower Global.

This acquisition matters for the S Class because the SunPower Performance range – which pioneered shingled cell panel design – forms the technological foundation for TCL’s shingled products. The S Class draws directly on SunPower’s years of refinement in shingled cell interconnection, circuit design, and shade management. By combining this expertise with TCL’s manufacturing scale and silicon wafer production, TCL SunPower Global delivers proven shingled technology at a broader market price point.

Bloomberg NEF Tier 1 Status

TCL Solar achieved Bloomberg NEF Tier 1 module manufacturer status in 2025 – a designation that carries significant weight in project finance and insurance contexts. The BNEF Tier 1 list applies rigorous criteria covering technical reliability, production capacity, financial health, and documented project delivery across multiple years.

For installers, this status provides confidence when discussing manufacturer credibility with customers concerned about long-term warranty backing.

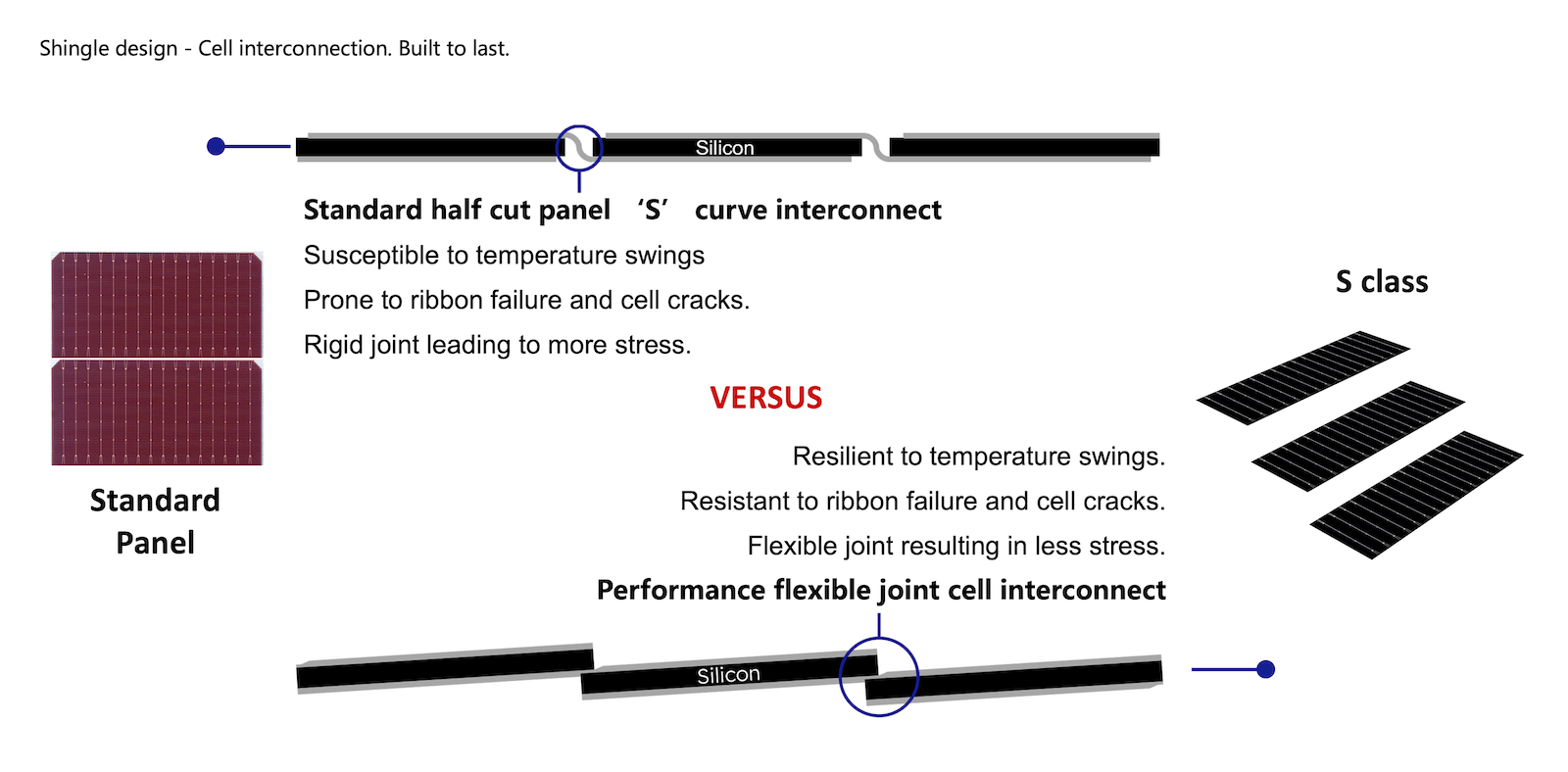

Shingled Cell Technology Explained

Understanding shingled cell technology helps installers explain the S Class value proposition to customers weighing up their options.

In conventional solar panels – whether half-cut or multi-busbar designs – individual cells are connected by metal ribbons soldered to busbars running across the cell surface. While effective, this approach has inherent limitations: the busbars and ribbons shade portions of the cell, the solder joints create stress points vulnerable to thermal cycling, and the gaps between cells represent inactive areas that generate no electricity.

Shingled cell technology takes a different approach. Each full-size N-type TOPCon cell is laser-cut into three strips (one-third cut). These strips are then overlapped at their edges – like tiles on a roof – and bonded using an electrically conductive adhesive (ECA) rather than rigid solder. This creates continuous strings of cells with no inactive gaps between them.

The S Class design offers several practical advantages over conventional half-cut panels:

• Higher power density – eliminating the inactive gaps between cells means more of the panel surface area actively generates electricity. This translates to more watts per square metre of roof space.

• Superior shade performance – the one-third cut design reduces cell-level current by a third compared to half-cut cells. Combined with three parallel substring circuits that can redistribute current through unshaded paths, the S Class maintains significantly more output under partial shading. TCL’s testing shows up to 5.1% more energy production in shade over 30 years compared to standard half-cut panels.

• Reduced hot-spot risk – lower cell current and better current redistribution mean the S Class operates 20-40°C cooler than standard panels under shade conditions, substantially reducing the risk of hot spots that can damage cells over time.

• Greater mechanical resilience – the flexible ECA joints absorb thermal expansion and contraction better than rigid solder connections. This makes shingled cells more resistant to ribbon failure and micro-cracking – two common long-term degradation mechanisms in conventionally wired panels.

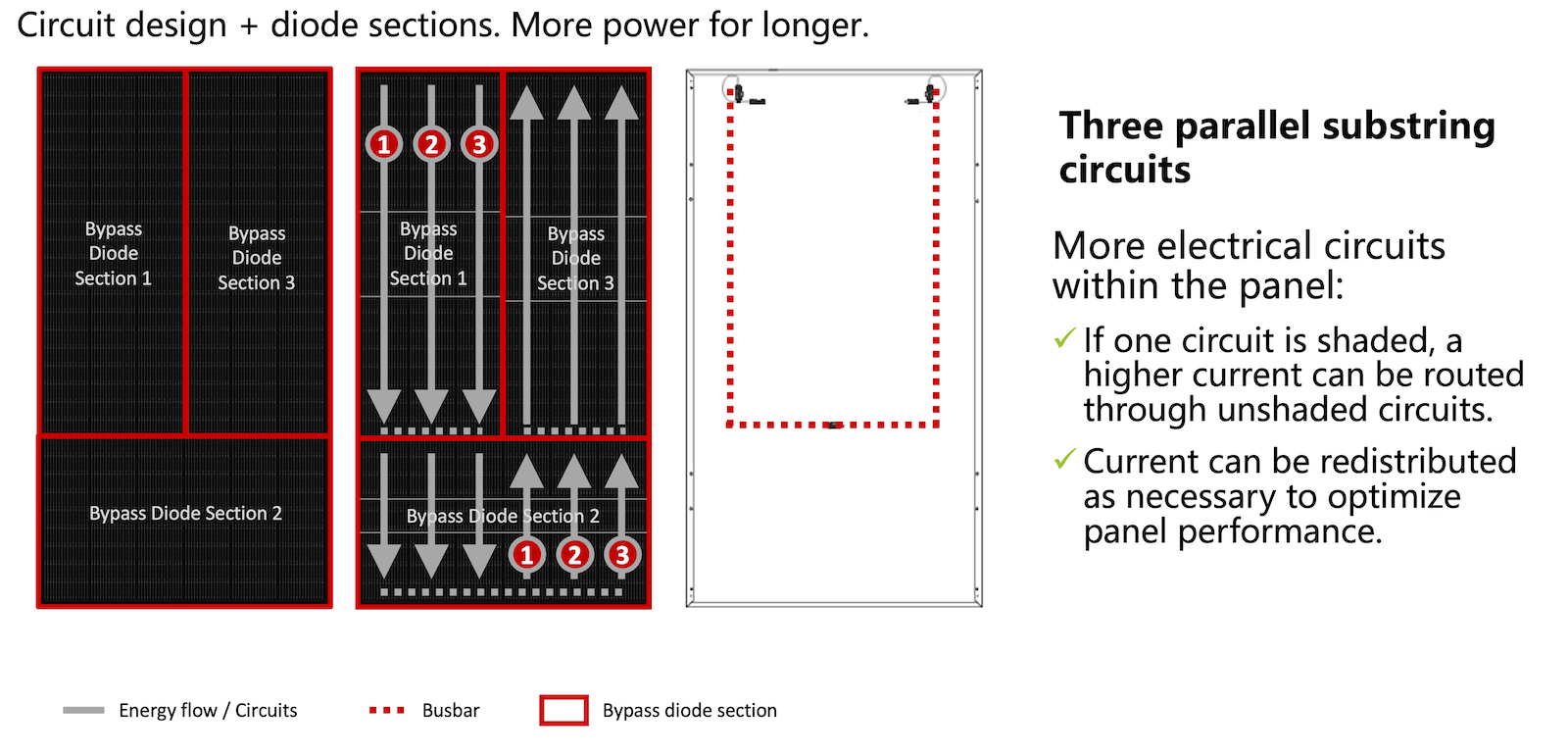

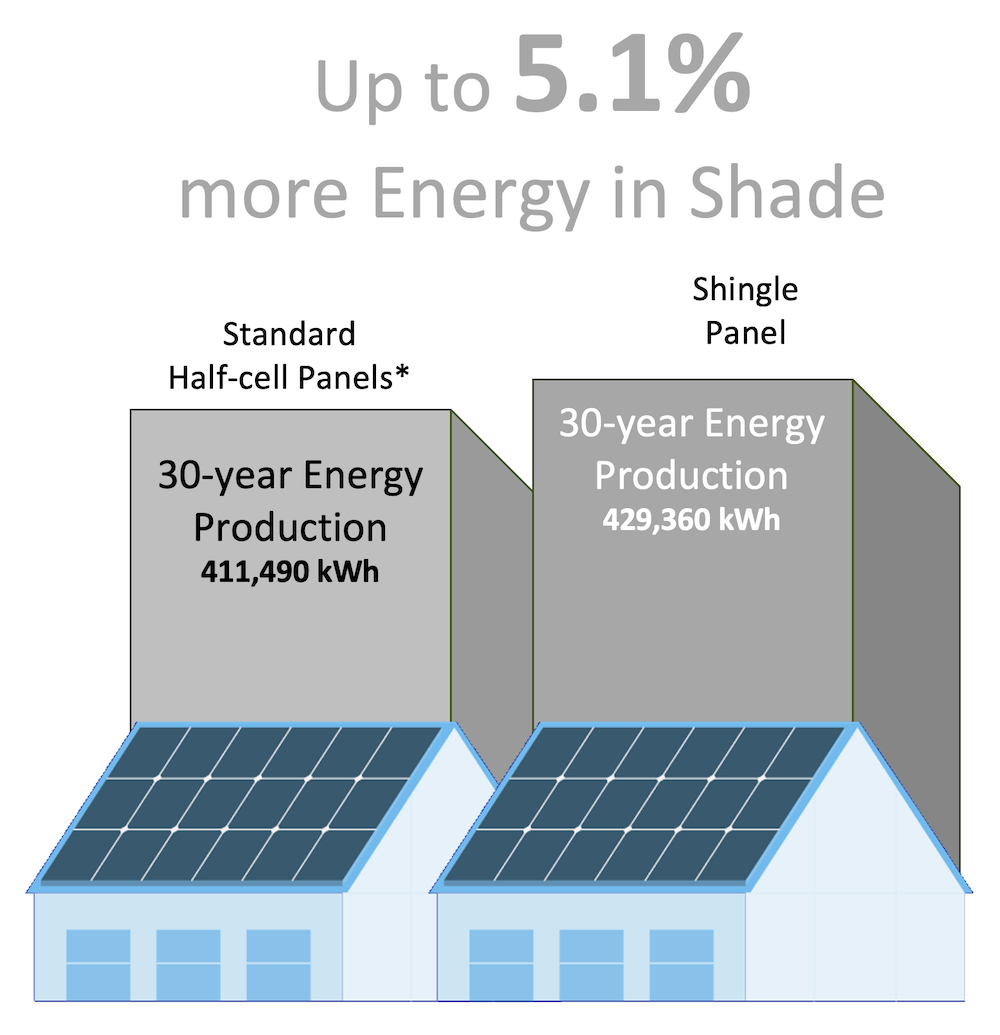

Shade Performance Data

One of the S Class’s most compelling advantages is its measured shade performance. TCL SunPower Global’s internal R&D testing compared the S Class against standard half-cut TOPCon panels across a range of real-world shading scenarios:

Shade Scenario	S Class Power Loss	Standard Half-Cut Power Loss
Spot shadow (120×120mm)	–16%	–23%
Short edge shade (100mm)	–32%	–36%
Long edge shade (50mm)	–3%	–8%
Long edge shade (200mm)	–23%	–35%
Diagonal pole shadow (25mm)	–28%	–40%

For UK installations, these figures are particularly relevant. Chimneys, vent pipes, satellite dishes, and dormers all create the kinds of partial shading patterns shown above.

The S Class’s ability to maintain output where standard panels lose significantly more power makes it well suited to the many British roofs that aren’t completely shade-free.

Shingled vs Half-Cut vs Back Contact: Which to Choose?

For installers offering multiple panel options across the TCL Solar range, the choice often comes down to the customer’s priorities and roof conditions.

• Choose S Class shingled panels when the property has shading challenges – chimneys, dormers, vent pipes, trees, or neighbouring buildings. The S Class’s shade management makes it the strongest performer in the TCL range under real-world partial shading. It also suits customers who want strong long-term energy yield at a competitive price point.

• Choose E Class back contact panels when the customer prioritises clean aesthetics and is willing to invest in premium technology. The E Class’s busbar-free front surface creates a uniform all-black appearance ideal for properties with prominent roof visibility or conservation area considerations. Its higher efficiency (up to 23.5%) also makes it the better choice for space-constrained roofs where maximising output per square metre matters most.

• Choose T Class half-cut panels when budget is the primary consideration and the roof has good orientation with minimal shading. The T Class offers solid TOPCon performance at the most accessible price point in the TCL Solar range.

TCL S Class Technical Specifications

The following specifications apply to the S Class TCL-MRxxxDT182-58NS series. We’ve focused on the data most relevant to UK installation planning and include the 460W panel currently available in the UK.

Electrical Specifications

All electrical data measured at Standard Test Conditions (1000 W/m² irradiance, AM 1.5, 25°C).

Parameter	TCL-MR465DT182-58NS	TCL-MR460DT182-58NS	TCL-MR455DT182-58NS
Nominal Power (Pnom)	465W	460W	455W
Panel Efficiency	22.9%	22.7%	22.4%
Rated Voltage (Vmpp)	36.20V	35.90V	35.65V
Rated Current (Impp)	12.85A	12.82A	12.77A
Open-Circuit Voltage (Voc)	42.49V	42.20V	42.00V
Short-Circuit Current (Isc)	13.55A	13.53A	13.48A
Power Binning	+3/0%	+3/0%	+3/0%

The positive-only power binning (+3/0%) means panels will meet or exceed their rated output – a detail worth highlighting to customers comparing warranty terms.

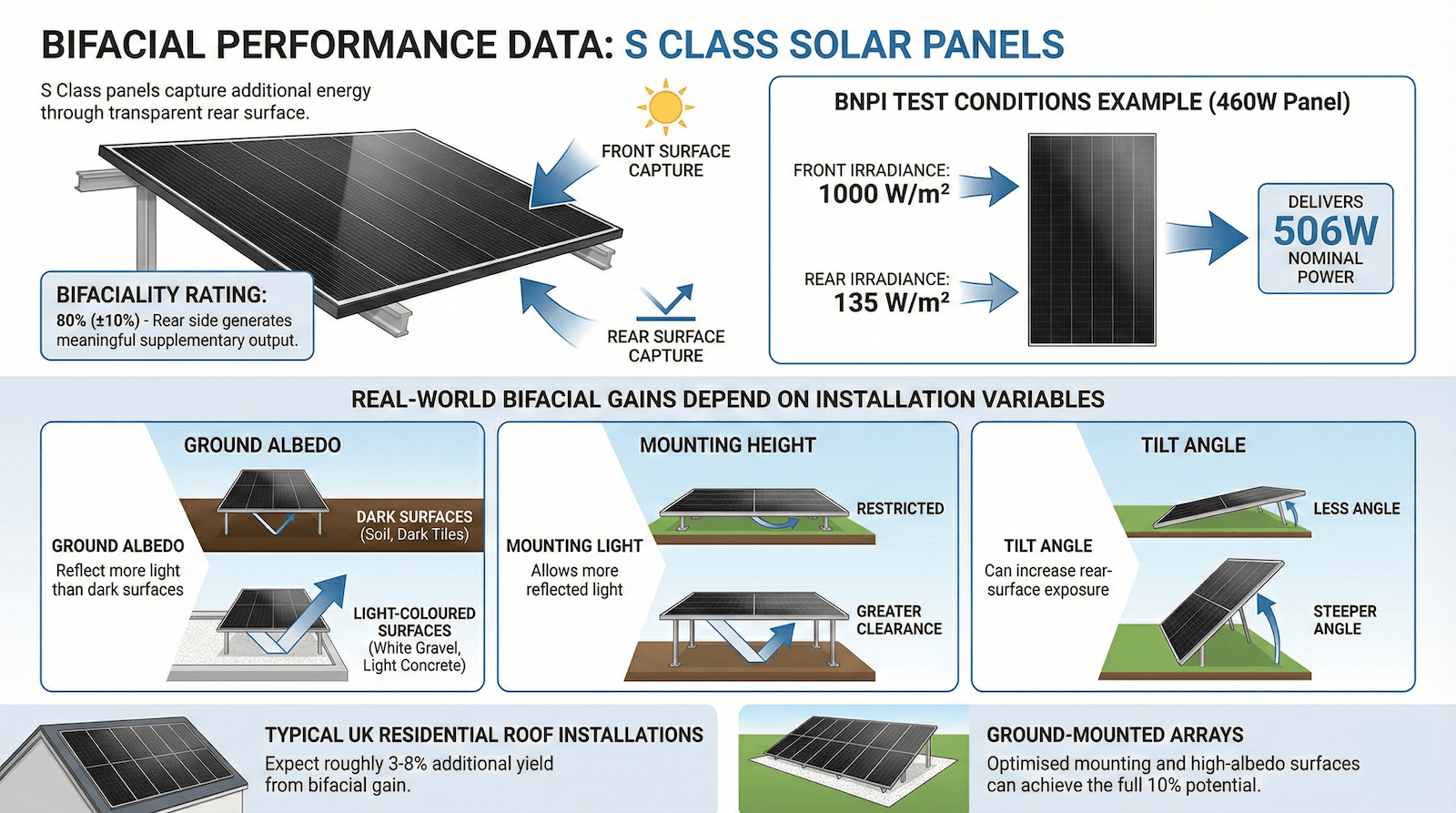

Bifacial Performance Data

S Class panels can capture additional energy through their transparent rear surface. With a bifaciality rating of 80% (±10%), the rear side generates meaningful supplementary output when reflected light is available.

For example, under BNPI test conditions (front 1000 W/m², rear 135 W/m²), the 460W panel delivers 506W nominal power.

Real-world bifacial gains depend on installation variables:

• Ground albedo – light-coloured surfaces (white gravel, light concrete) reflect more light than dark surfaces (soil, dark tiles).

• Mounting height – greater clearance between panels and roof/ground allows more reflected light to reach the rear surface.

• Tilt angle – steeper angles can increase rear-surface exposure to reflected light.

For typical UK residential roof installations, expect roughly 3-8% additional yield from bifacial gain. Ground-mounted arrays with optimised mounting and high-albedo surfaces can achieve the full 10% potential.

Mechanical Specifications

Parameter	Specification
Dimensions	1790mm × 1134mm × 30mm
Weight	24.8 kg
Front Glass	2.0mm heat-strengthened, AR coating
Rear Glass	2.0mm heat-strengthened
Encapsulant	POE (Polyolefin Elastomer)
Frame	30mm black anodised aluminium alloy
Junction Box	IP-68 rated, 3 bypass diodes
Connectors	Stäubli MC4-EVO2A
Cable Length	1,200mm (±15mm)

Load and Environmental Ratings

Parameter	Rating
Wind Load	2,400 Pa (245 kg/m²) front and back
Snow Load	5,400 Pa (550 kg/m²) front
Hail Resistance	25mm diameter at 23 m/s
Operating Temperature	−40°C to +70°C (IEC TS 63126)
Maximum System Voltage	1,500V IEC

The 5,400 Pa snow load rating exceeds requirements for virtually all UK installations, providing comfortable margin even in areas prone to heavy snowfall.

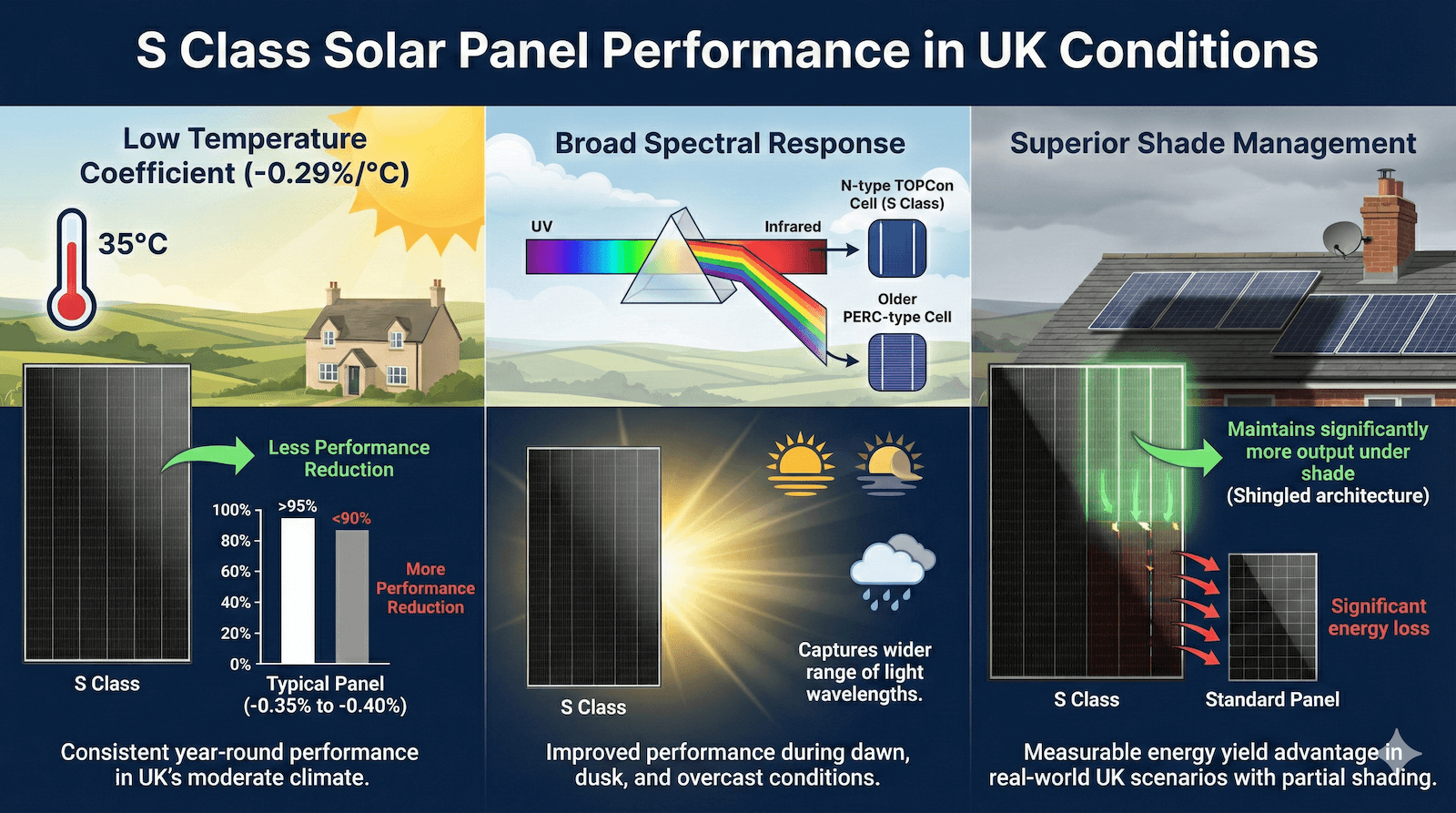

Performance in UK Conditions

Several S Class characteristics suit the UK’s temperate maritime climate:

• Low temperature coefficient (−0.29%/°C): Solar panels lose efficiency as cell temperature rises above the 25°C test standard. The S Class’s low temperature coefficient means less performance reduction during warm summer conditions compared to panels with typical −0.35% to −0.40% coefficients. In the UK’s moderate climate, this translates to consistent year-round performance.

• Broad spectral response: N-type TOPCon cells capture a wider range of light wavelengths than older PERC-type cells, improving performance during dawn, dusk, and overcast conditions – precisely when UK systems often operate.

• Superior shade management: This is the S Class’s standout characteristic for UK installations. British roofs frequently contend with partial shading from chimneys, dormers, vent pipes, satellite dishes, and neighbouring structures. The shingled cell architecture’s ability to maintain significantly more output under these conditions (see shade data above) gives the S Class a measurable energy yield advantage in real-world UK scenarios.

Warranty and Certifications

TCL Solar S Class panels carry a strong warranty package backed by the financial strength of a Fortune Global 500 company.

Understanding the 30-Year Performance Warranty

The S Class warranty structure comprises two elements:

Product warranty (25 years): Covers defects in materials that impact panel function under normal use. This exceeds the industry standard of 12-15 years and matches premium competitors.

Performance warranty (30 years): Guarantees minimum power output throughout the warranty period:

• Year 1: 99.0% of rated power minimum
• Annual degradation: 0.40% maximum
• Year 30: 87.4% of rated power minimum

The 0.40% annual degradation rate is competitive against the industry typical of 0.5-0.55%, meaning the S Class will produce meaningfully more electricity over its lifetime compared to many standard alternatives.

For the 460W panel, the warranty guarantees at least 402W output at year 30 – a strong lifetime value proposition for customers evaluating total cost of ownership.

It’s worth noting that the E Class offers a slightly lower degradation rate of 0.35% (guaranteeing 88.9% at year 30) – a point of differentiation for customers comparing the two ranges. However, the S Class’s 0.40% rate still represents strong performance, and the price-to-warranty ratio may favour the S Class for many projects.

Warranty Claims Process

Warranty claims should be directed through the distributing partner (Bimble Solar for UK purchases). TCL will, at their discretion, repair, replace, or refund covered panels. Replacement panels will be electrically and mechanically compatible with the original installation. TCL also covers reasonable transportation costs for valid claims.

Certifications

Certification	Standard/Rating
Performance Testing	IEC 61215
Safety Testing	IEC 61730
Fire Rating	Class A (IEC 61730-2 / UL 790)
Protection Class	Class II (IEC 61140)
Quality Management	ISO 9001:2015
Environmental Management	ISO 14001:2015
Health & Safety	ISO 45001:2018
EHS Compliance	Recycling Scheme

MCS Certification

TCL Solar S Class panels hold MCS (Microgeneration Certification Scheme) approval, confirming eligibility for:

• Smart Export Guarantee (SEG) payments for exported electricity
• Building Regulations compliance for domestic installations
• DNO notification under G98/G99 frameworks

MCS certification should be verified against the current MCS product database when specifying systems.

Installation Considerations

The following guidance addresses practical questions commonly raised by installers new to the S Class range.

String Sizing and Inverter Compatibility

With open-circuit voltages around 42V and a 1,500V maximum system voltage rating, the TCL-MRxxxDT182-58NS series supports long strings typical of UK residential installations:

• Maximum theoretical string length: 35 panels (after cold-temperature Voc correction)

• Practical UK residential strings: 10-15 panels typical

The S Class is compatible with string, hybrid, optimiser, and microinverter systems from major manufacturers.

When using optimisers or microinverters, confirm input current limits against the module’s 13.53A Isc (460W panel), which is typical for modern high-power residential modules.

Mounting and Handling

At 24.8 kg, S Class panels are slightly heavier than the E Class (24.2 kg) and sit at the heavier end of the residential range due to their glass-glass construction. Two-person handling is recommended, particularly when working at height or in windy conditions.

The panel dimensions (1790mm × 1134mm) are marginally taller than the E Class (1757mm × 1134mm) – a difference of 33mm that may be relevant when planning tight roof layouts, but is unlikely to affect most installations.

Standard mounting clamps compatible with 30mm frames are required. The panel’s 2,400 Pa wind load rating accommodates typical UK roof installations without requiring additional structural assessment in most cases.

Cable Management

The 1,200mm factory-fitted cables with MC4-EVO2A connectors are adequate for most residential installations. Note that this is 200mm shorter than the E Class’s 1,400mm cables – worth factoring in when planning cable routing, particularly if you’re familiar with the E Class and transitioning to S Class on a project.

Why Buy TCL S Class from Bimble Solar?

Bimble Solar has established itself as a trusted UK distributor for installers seeking quality products with reliable service. Our TCL Solar S Class stock offers:

• UK-held inventory for rapid delivery
• Trade account pricing for registered installers
• Technical support from our experienced team
• Straightforward warranty support through our UK operation
• Complementary products including mounting systems, inverters, and batteries

We’ve worked with TCL SunPower Global to ensure UK installers have access to full technical documentation, specification sheets, and installation guidance in English.

Frequently Asked Questions

Are TCL Solar S Class panels any good?

Yes. TCL Solar S Class panels are manufactured by a Bloomberg NEF Tier 1 company backed by the financial strength of TCL Group – a Fortune Global 500 company with over $42 billion in annual revenue. The S Class range uses proven shingled cell technology with roots in SunPower’s Performance panel heritage, and carries one of the longest warranty terms available in the UK market (25-year product, 30-year performance). Independent testing confirms specifications, and the panels hold all relevant certifications for UK installation.

Is TCL Solar the same as SunPower?

TCL SunPower Global operates both the TCL Solar and SunPower brands following TCL’s acquisition of Maxeon Solar Technologies’ EMEA operations in early 2025. In the UK market, you’ll find both TCL-branded panels (including the S Class) and SunPower-branded panels available through the same distribution network. The shingled cell technology used in TCL S Class panels draws on SunPower’s Performance panel expertise in shingled cell interconnection and shade management.

What warranty do TCL S Class panels have?

TCL S Class panels carry a 25-year product warranty covering defects in materials, plus a 30-year performance warranty guaranteeing at least 87.4% of rated power output at year 30. The 0.40% maximum annual degradation rate is competitive against typical industry standards of 0.5% or higher, meaning S Class panels will produce more electricity over their lifetime compared to many alternatives.

Are TCL Solar S Class panels MCS approved?

Yes, TCL Solar S Class panels hold MCS certification, making them eligible for Smart Export Guarantee (SEG) payments and compliant with UK Building Regulations requirements for domestic solar installations.

What is the difference between TCL S Class and E Class?

The S Class uses TOPCon shingled cell technology – one-third cut cells overlapped and bonded with conductive adhesive – delivering excellent shade performance and strong energy yield at a competitive price. The E Class uses back contact cell technology with all electrical connections on the rear of each cell, producing higher peak efficiency (up to 23.5%) and a clean all-black appearance with no visible busbars or grid lines. Both use N-type cells and glass-glass construction with similar warranty terms (25-year product, 30-year performance). Choose S Class for shade-challenged roofs or value-focused projects; choose E Class for premium aesthetics or space-constrained roofs.

What is shingled cell technology?

Shingled cell technology involves laser-cutting full-size solar cells into strips (one-third cut in the S Class) and overlapping them like roof tiles, bonded with a flexible conductive adhesive. This eliminates the gaps between cells and removes front-surface busbars, resulting in higher power density, better shade performance, and improved resistance to micro-cracking and ribbon failure compared to conventional half-cut panel designs.

How do TCL S Class panels perform in shade?

The S Class’s shingled cell design provides significantly better shade performance than standard half-cut panels. TCL’s testing shows up to 5.1% more energy production in shade over 30 years, and the panels operate 20-40°C cooler than standard panels under shade conditions. In a typical spot shadow scenario (120×120mm), the S Class loses 16% of power compared to 23% for a standard half-cut panel – a meaningful difference over time for UK roofs with chimneys, dormers, or vent pipes.

Can TCL S Class panels be used with any inverter?

TCL S Class panels are compatible with string inverters, hybrid inverters, and microinverter/optimiser systems from all major manufacturers. The 1,500V maximum system voltage and standard MC4-EVO2A connectors ensure broad compatibility. When using microinverters or optimisers, verify the unit’s current handling capacity accommodates the panel’s 13.53A short-circuit current (for the TCL-MR460DT182-58NS 460W panel).

Next Steps

TCL Solar S Class panels offer UK installers a compelling residential option: proven shingled cell technology with excellent shade performance, competitive pricing, strong warranty coverage, and the backing of a financially robust Tier 1 manufacturer.

For customers with shaded roofs or those seeking strong long-term energy yield without the premium price of back contact technology, the S Class makes a strong case.

To discuss trade pricing, check current stock availability, register for a trade account, or arrange delivery, contact Bimble Solar's trade team. We’re here to support your projects from specification through to installation.
