TCL Solar T Class: The Complete UK Installer’s Guide

The TCL Solar T Class brings proven N-type TOPCon half-cut cell technology to the UK market at an accessible price point, available to installers through Bimble Solar.

Built around G12R TOPCon cells with Super Multi Busbar interconnection and bifacial energy generation, the 54-cell variant delivers between 485W and 510W (HSM-ND54-DR model) with an efficiency rating of up to 22.9%.

The framed glass-glass construction and bifacial architecture provide durability and supplementary rear-surface energy capture, whilst the half-cut cell design reduces resistive losses and improves shade tolerance compared to older full-cell modules.

Backed by the financial strength of TCL Group – a Fortune Global 500 company with over $42 billion in annual revenue – and carrying Bloomberg NEF Tier 1 status, the T Class offers UK installers a reliable, well-specified TOPCon panel with strong warranty coverage and a competitive price-to-performance ratio.

This guide covers everything you need to know about specifying, sourcing, and installing TCL Solar T Class panels in the UK market.

Table of Contents

• What Is TCL Solar T Class?
• Who Makes TCL Solar Panels?
• TOPCon Half-Cut Cell Technology Explained
• TCL T Class Technical Specifications
• Warranty and Certifications
• Installation Considerations
• Why Buy TCL T Class from Bimble Solar?
• Frequently Asked Questions
• Next Steps

What Is TCL Solar T Class?

The T Class HSM-ND54-DR sits within TCL Solar’s product range as a versatile, value-focused panel built on widely adopted TOPCon half-cut cell technology.

Where the S Class employs a shingled cell architecture – overlapping laser-cut cell strips bonded with conductive adhesive – and the E Class uses back contact cells with all electrical connections on the rear surface, the T Class takes a more conventional approach:

Full-size N-type TOPCon cells are laser-cut in half and connected using Super Multi Busbar (SMBB) ribbon interconnection with 16 busbars per cell. This is a well-proven design that delivers strong efficiency and long-term reliability at a lower manufacturing cost than either shingled or back contact architectures.

The practical result is a panel that offers solid TOPCon performance – high efficiency, low degradation, good low-light response – at the most accessible price point in the TCL Solar range. For installations where the roof has good orientation and minimal shading, the T Class delivers excellent value without compromising on build quality or warranty coverage.

Within the broader TCL Solar portfolio, the T Class complements the S Class (shingled cells, shade performance) and E Class (back contact cells, premium aesthetics). Where the S Class targets roofs with shading challenges and the E Class targets customers who prioritise clean aesthetics and maximum efficiency, the T Class serves the larger market of straightforward installations where performance per pound is the primary consideration.

T Class Product Range

The T Class range spans three cell configurations designed for different installation scales:

• The 48-cell HSM-ND48-DR series (up to 455W) targets residential applications

• The 54-cell HSM-ND54-DR series (up to 510W) suits both residential and commercial projects

• The 66-cell HSM-ND66-GR series (up to 625W) is designed for larger commercial installations

In the UK, the 54-cell HSM-ND54-DR series is the relevant product for most installers. The range comprises six power variants:

Model	Power Output	Efficiency
HSM-ND54-DR510	510W	22.9%
HSM-ND54-DR505	505W	22.7%
HSM-ND54-DR500	500W	22.5%
HSM-ND54-DR495	495W	22.3%
HSM-ND54-DR490	490W	22.0%
HSM-ND54-DR485	485W	21.8%

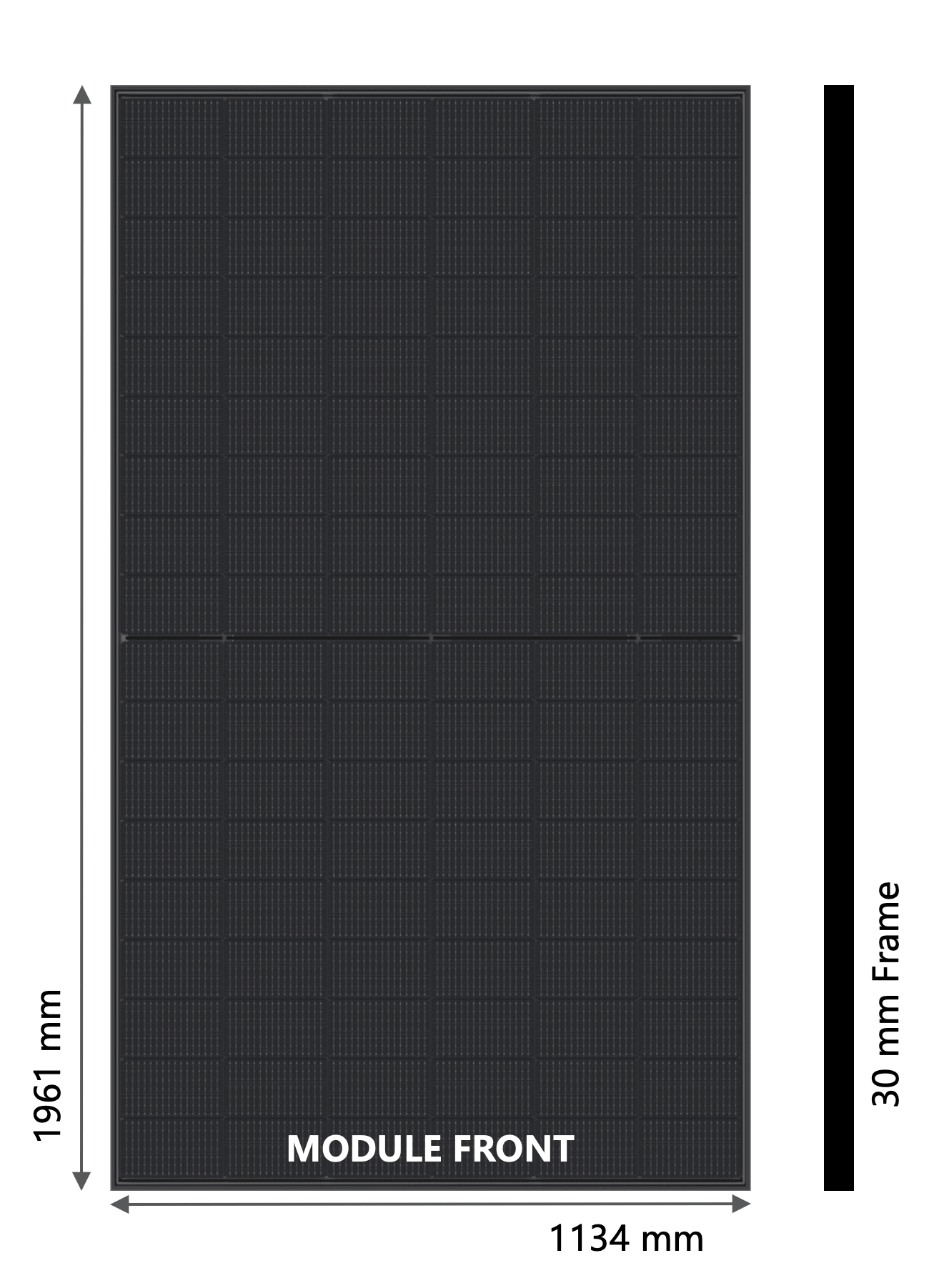

All variants share identical physical dimensions (1961mm × 1134mm × 30mm) and mounting hole positions, simplifying installation planning and allowing flexibility when matching available stock to project requirements.

At the time of writing, the highest-rated T Class panel available in the UK is the 505W (HSM-ND54-DR505).

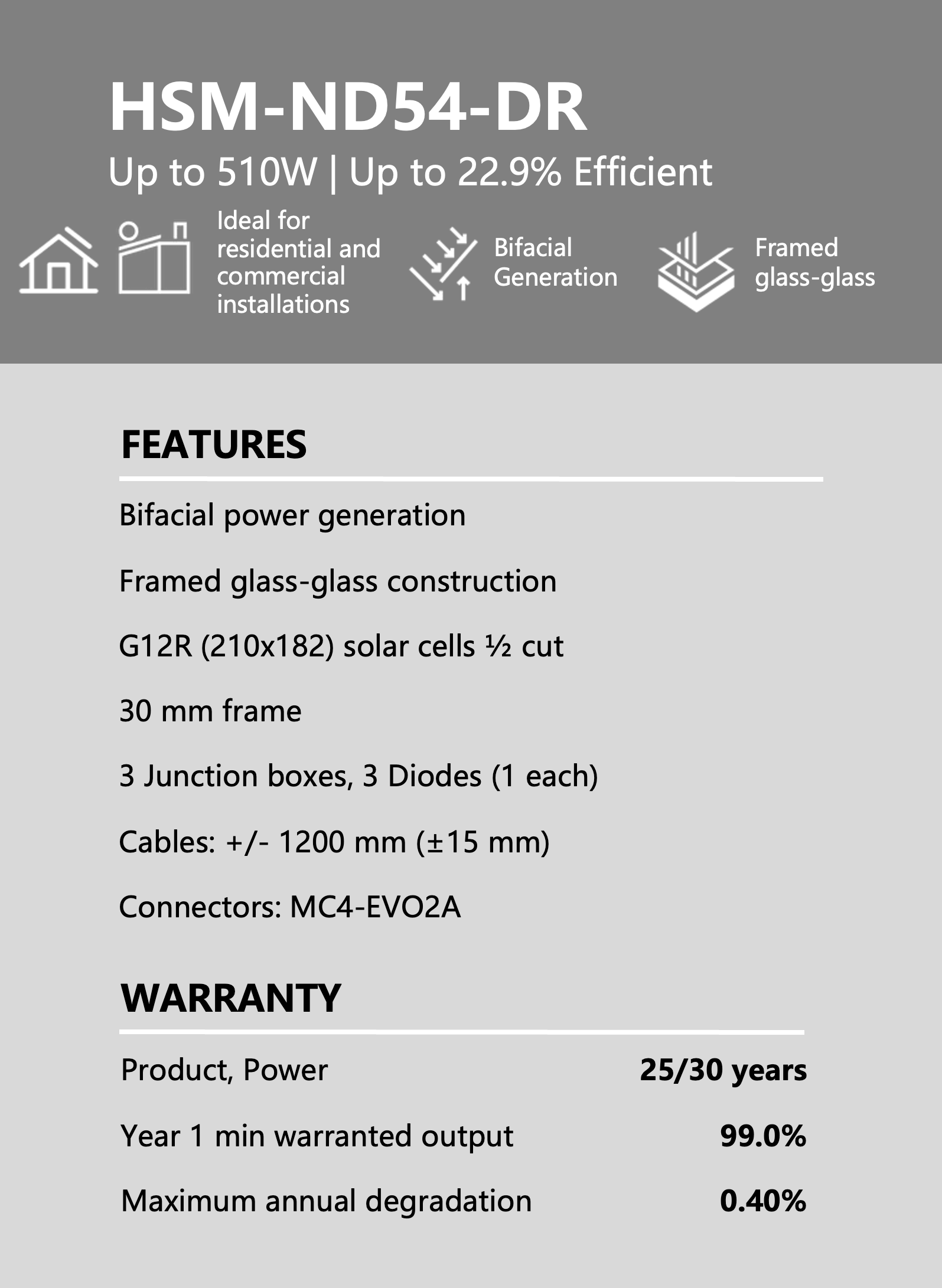

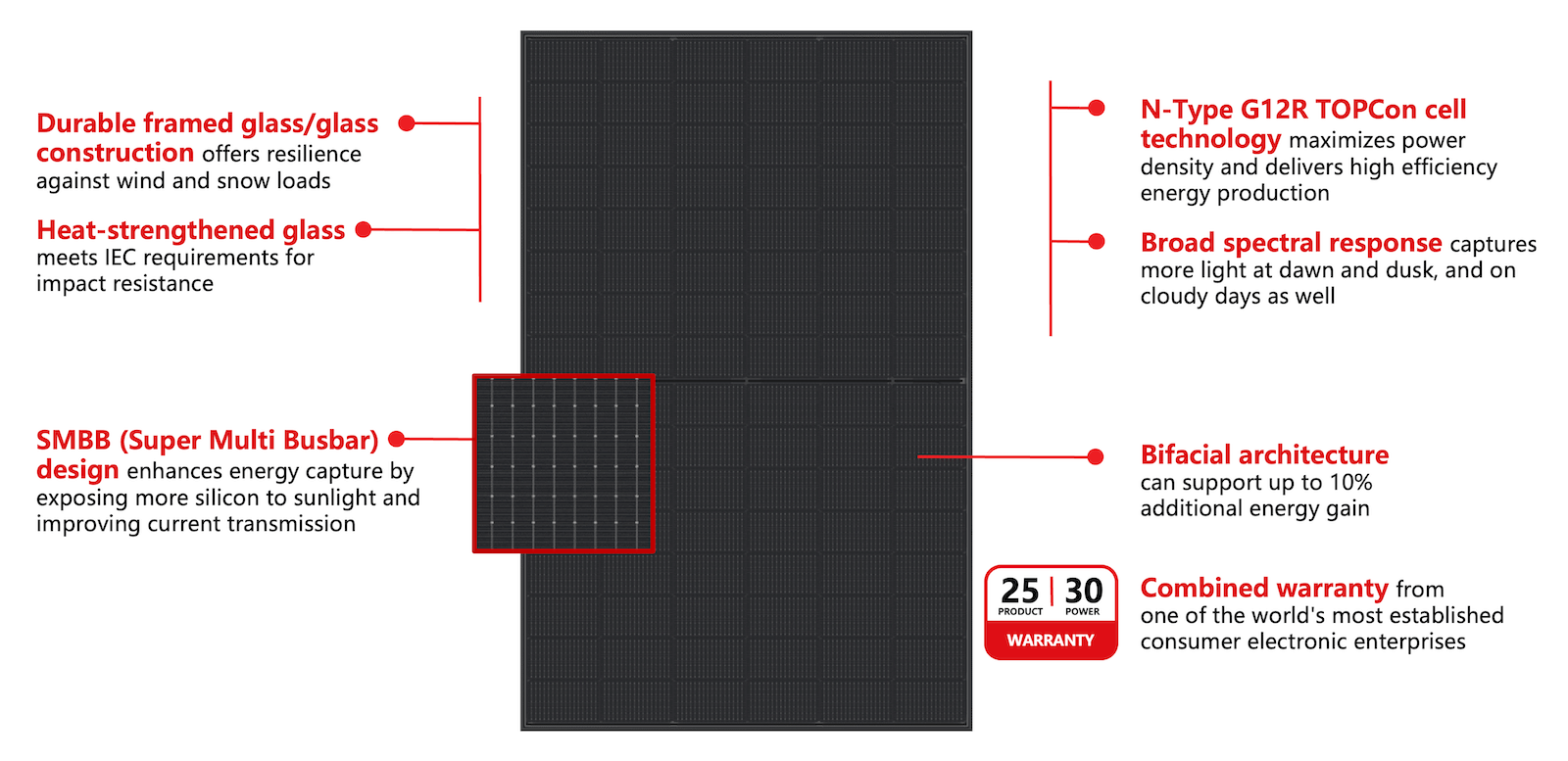

Key Features at a Glance

• N-type TOPCon G12R half-cut solar cells with 16x Super Multi Busbar
• Bifacial design capturing reflected light from the rear surface
• Framed glass-glass construction (2.0mm + 2.0mm heat-strengthened, AR coating on front)
• 30mm black anodised aluminium frame
• IP68-rated junction box with three bypass diodes
• Stäubli MC4-EVO2 connectors with 1,400mm cable length
• 25-year product warranty and 30-year performance warranty

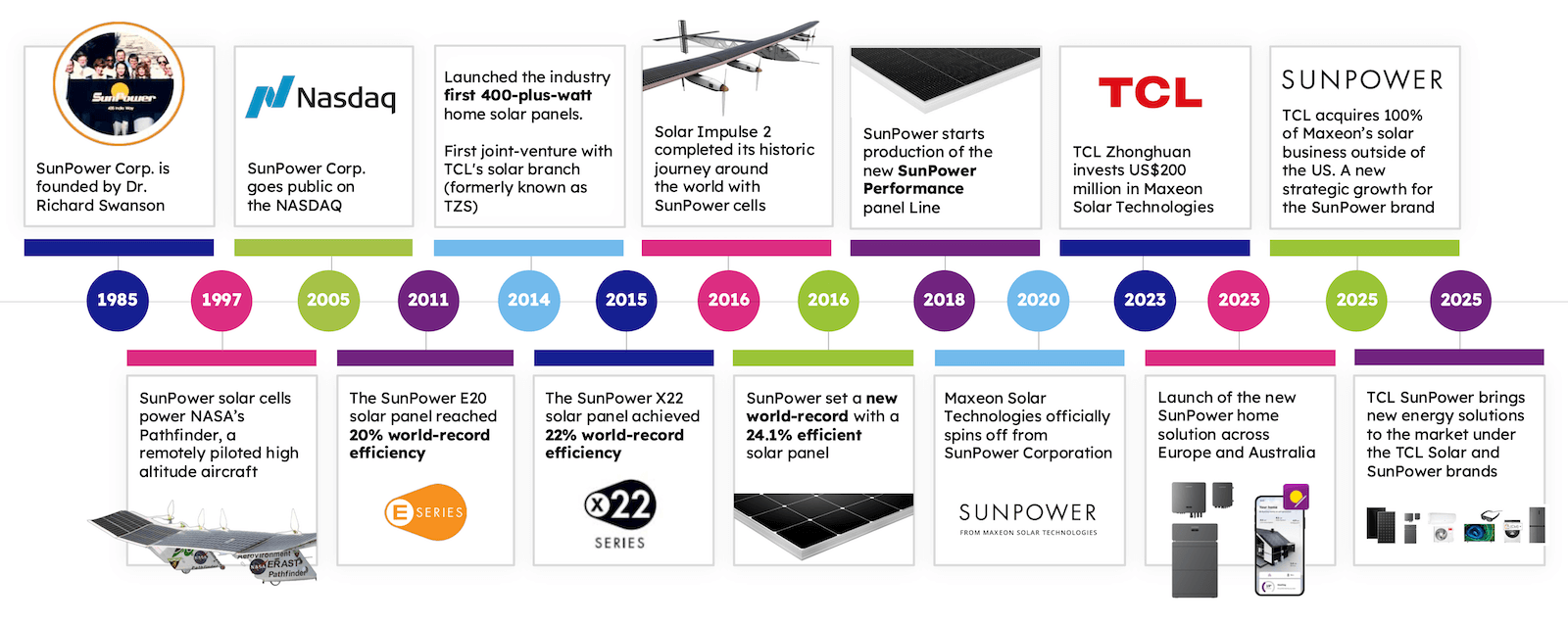

Who Makes TCL Solar Panels?

For UK installers unfamiliar with TCL in the solar context, understanding the company’s background provides important context for the brand proposition you’re presenting to customers.

TCL Technology Group was founded in 1981 and has grown into one of the world’s largest consumer electronics manufacturers. With annual operating income exceeding $42 billion and a presence in over 170 countries, TCL ranks among the global top two for LCD display panels, TV panels, and branded televisions. The company employs over 130,000 people across 32 manufacturing facilities worldwide.

TCL’s involvement in solar extends back to 2014 through its subsidiary TCL Zhonghuan, which became one of the world’s largest producers of monocrystalline silicon wafers – the foundation material for high-efficiency solar cells. This vertical integration, controlling production from raw silicon through to finished panels, distinguishes TCL from manufacturers who rely on third-party cell suppliers.

The SunPower Connection

In late 2024, TCL Group reached agreement to acquire Maxeon Solar Technologies’ sales and marketing operations across Europe, the Middle East, Africa, Asia-Pacific, and Latin America. This transaction, completed in early 2025, brought the SunPower brand under TCL ownership outside North America and created TCL SunPower Global.

While the SunPower heritage is most directly relevant to the S Class (which draws on SunPower’s shingled Performance panel technology) and the E Class (which builds on SunPower’s back contact Maxeon cell expertise), the broader organisational benefits extend across all TCL Solar products. The T Class benefits from TCL SunPower Global’s quality management systems, European distribution infrastructure, and the combined engineering resources of both organisations.

Bloomberg NEF Tier 1 Status

TCL Solar achieved Bloomberg NEF Tier 1 module manufacturer status in 2025 – a designation that carries significant weight in project finance and insurance contexts. The BNEF Tier 1 list applies rigorous criteria covering technical reliability, production capacity, financial health, and documented project delivery across multiple years.

For installers, this status provides confidence when discussing manufacturer credibility with customers concerned about long-term warranty backing.

TOPCon Half-Cut Cell Technology Explained

Understanding the T Class’s cell technology helps installers explain what differentiates modern TOPCon panels from the older PERC modules that dominated the market until recently.

TOPCon – short for Tunnel Oxide Passivated Contact – represents the current mainstream of high-efficiency solar cell design. The technology builds on the proven PERC architecture by adding an ultra-thin tunnel oxide layer and a doped polysilicon contact on the rear of the cell. This passivated contact structure significantly reduces electron recombination losses at the cell surface, meaning a greater proportion of absorbed sunlight is converted into usable electricity.

The T Class uses N-type silicon as its base material, which offers several inherent advantages over the P-type silicon used in older PERC cells. N-type cells are immune to Light Induced Degradation (LID), a phenomenon that causes P-type cells to lose 1-3% of output in their first hours of sun exposure. They also exhibit a lower temperature coefficient, meaning less performance reduction when cell temperatures rise above the 25°C test standard. And they deliver a broader spectral response, capturing a wider range of light wavelengths for improved performance at dawn, dusk, and during overcast conditions.

The ‘half-cut’ element refers to the cell format. Conventional full-size cells are laser-cut in half before being wired into the panel. This halving reduces the current flowing through each cell string, which in turn reduces resistive (I²R) losses and lowers cell operating temperatures. The result is higher real-world output and improved tolerance to partial shading compared to full-cell designs, though not to the same degree as the S Class’s shingled architecture.

The T Class specifically uses G12R format cells (210mm × 182mm) with 16x Super Multi Busbar (SMBB) interconnection. The SMBB design uses numerous thin busbars rather than fewer thick ones, which improves current collection across the cell surface, reduces resistive losses at the busbar level, and provides redundant current paths; if one busbar connection is compromised, the remaining busbars continue to carry current effectively.

Half-Cut vs Shingled vs Back Contact: Which to Choose?

For installers offering multiple panel options across the TCL Solar range, the choice typically comes down to the customer’s priorities and roof conditions.

• Choose T Class half-cut panels when budget is the primary consideration and the roof has good orientation with minimal shading. The T Class offers solid TOPCon performance at the most accessible price point in the TCL Solar range, making it well suited to the larger volume of straightforward residential and commercial installations.

• Choose S Class shingled panels when the property has shading challenges, like chimneys, dormers, vent pipes, trees, or neighbouring buildings. The S Class’s shingled design maintains significantly more output under partial shading (up to 5.1% more energy over 30 years compared to standard half-cut panels, according to TCL’s testing), making it the strongest performer in the TCL range under real-world partial shading. It also suits customers who want strong long-term energy yield at a competitive price point.

• Choose E Class back contact panels when the customer prioritises clean aesthetics and is willing to invest in premium technology. The E Class’s busbar-free front surface creates a uniform all-black appearance ideal for visually prominent roofs or conservation area considerations. Its higher efficiency (up to 23.5%) also makes it the better choice for space-constrained roofs where maximising output per square metre matters most.

TCL T Class Technical Specifications

The following specifications apply to the T Class HSM-ND54-DR series. We’ve focused on the data most relevant to UK installation planning and include all six power variants, with the 505W panel currently available in the UK.

Electrical Specifications

All electrical data measured at Standard Test Conditions (1000 W/m² irradiance, AM 1.5, 25°C):

Parameter	HSM-ND54- DR510	HSM-ND54- DR505	HSM-ND54- DR500	HSM-ND54- DR495	HSM-ND54- DR490	HSM-ND54- DR485
Nominal Power (Pnom)	510W	505W	500W	495W	490W	485W
Panel Efficiency	22.9%	22.7%	22.5%	22.3%	22.0%	21.8%
Rated Voltage (Vmpp)	34.10V	33.90V	33.70V	33.50V	33.30V	33.10V
Rated Current (Impp)	14.96A	14.90A	14.84A	14.78A	14.72A	14.66A
Open-Circuit Voltage (Voc)	40.36V	40.14V	39.92V	39.70V	39.50V	39.34V
Short-Circuit Current (Isc)	15.95A	15.88A	15.81A	15.74A	15.67A	15.60A
Power Binning	+3/0%	+3/0%	+3/0%	+3/0%	+3/0%	+3/0%

The positive-only power binning (+3/0%) means panels will meet or exceed their rated output – a detail worth highlighting to customers comparing warranty terms.

Bifacial Performance Data

T Class panels can capture additional energy through their transparent rear surface. With a bifaciality rating of 80% (±5%), the rear side generates meaningful supplementary output when reflected light is available.

The datasheet provides bifacial gain projections for two scenarios:

Scenario	DR510	DR505	DR500	DR495	DR490	DR485
Nominal Power (Pnom)	510W	505W	500W	495W	490W	485W
Pmax at 5% bifacial gain	536W	530W	525W	520W	515W	509W
Pmax at 10% bifacial gain	561W	556W	550W	545W	539W	534W

Real-world bifacial gains depend on installation variables:

• Ground albedo – light-coloured surfaces (white gravel, light concrete) reflect more light than dark surfaces (soil, dark tiles)

• Mounting height – greater clearance between panels and roof or ground allows more reflected light to reach the rear surface

• Tilt angle – steeper angles can increase rear-surface exposure to reflected light

For typical UK residential roof installations, expect roughly 3-8% additional yield from bifacial gain. Ground-mounted arrays with optimised mounting and high-albedo surfaces can achieve the full 10% potential.

Mechanical Specifications

Parameter	Specification
Dimensions	1961mm × 1134mm × 30mm
Weight	27 kg
Front Glass	2.0mm heat-strengthened, AR coating
Rear Glass	2.0mm heat-strengthened
Frame	30mm black anodised aluminium alloy
Junction Box	IP-68 rated, 3 bypass diodes
Connectors	Stäubli MC4-EVO2
Cable Length	1,400mm (±15mm)

It’s worth noting the physical differences from other panels in the TCL Solar range:

• The T Class is 171mm taller than the S Class (1961mm vs 1790mm) and 204mm taller than the E Class (1757mm), due to its 54-cell half-cut layout versus the more compact shingled and back contact architectures.

• At 27 kg, it is also 2.2 kg heavier than the S Class (24.8 kg) and 2.8 kg heavier than the E Class (24.2 kg) – worth factoring into handling and access planning.

On the positive side, the 1,400mm cable length is 200mm longer than the S Class’s 1,200mm cables, providing more flexibility for cable routing.

Load and Environmental Ratings

Parameter	Specification
Wind Load	2,400 Pa (245 kg/m²) front and back
Snow Load	5,400 Pa (550 kg/m²) front
Hail Resistance	25mm diameter at 23 m/s
Operating Temperature	−40°C to +70°C (IEC TS 63126)
Maximum System Voltage	1,500V IEC

The 5,400 Pa snow load rating exceeds requirements for virtually all UK installations, providing comfortable margin even in areas prone to heavy snowfall.

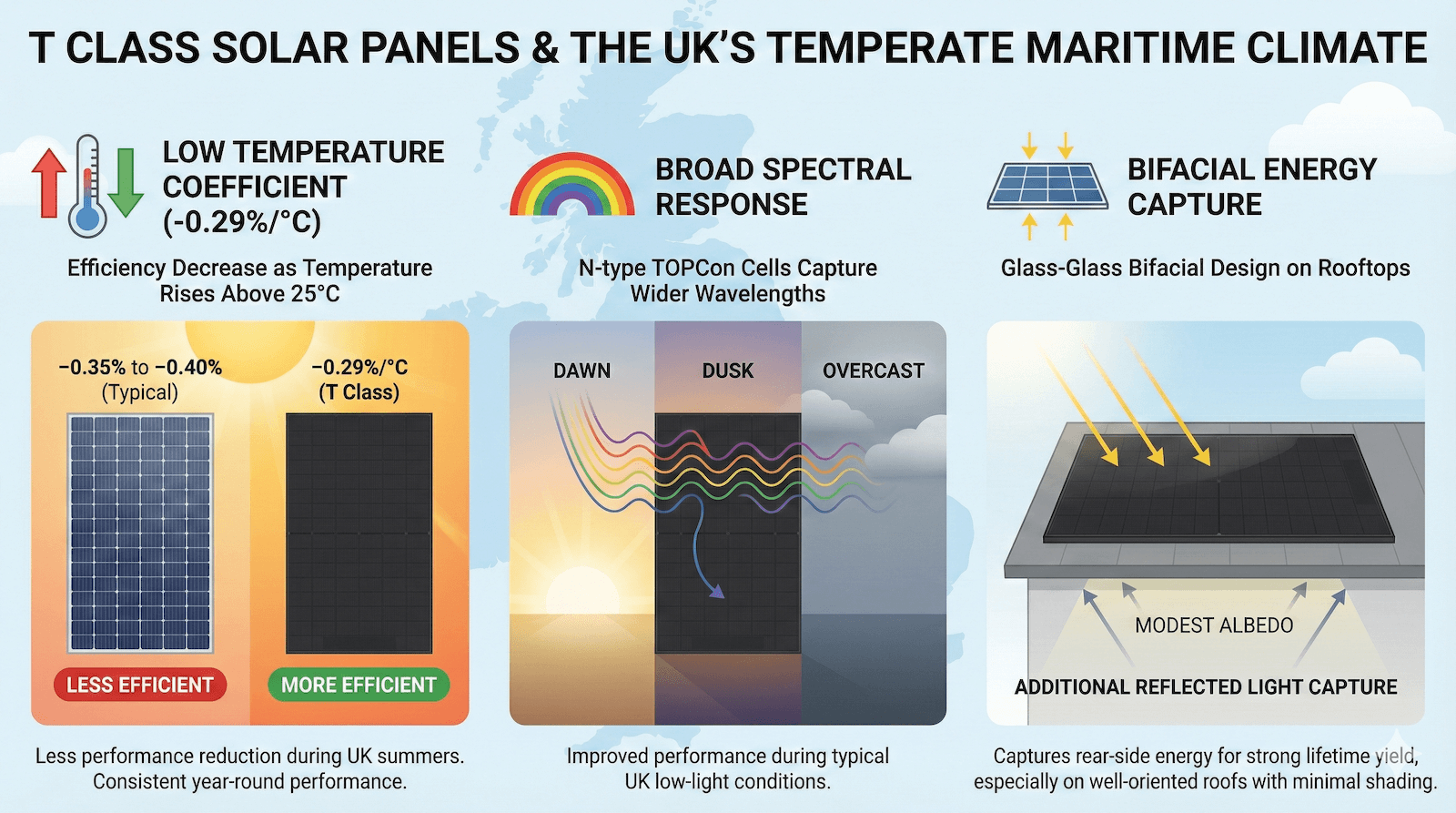

Performance in UK Conditions

Several T Class characteristics suit the UK’s temperate maritime climate:

• Low temperature coefficient (−0.29%/°C): Solar panels lose efficiency as cell temperature rises above the 25°C test standard. The T Class’s low temperature coefficient means less performance reduction during warm summer conditions compared to panels with typical −0.35% to −0.40% coefficients. In the UK’s moderate climate, this translates to consistent year-round performance.

• Broad spectral response: N-type TOPCon cells capture a wider range of light wavelengths than older PERC-type cells, improving performance during dawn, dusk, and overcast conditions – precisely when UK systems often operate.

• Bifacial energy capture: Even on UK rooftops where albedo is modest, the glass-glass bifacial design captures some additional reflected light. The T Class won’t deliver the same shade-management advantages as the S Class’s shingled architecture, but on well-oriented roofs with minimal shading, its combination of high cell efficiency, low degradation, and bifacial gain delivers strong lifetime energy yield.

Warranty and Certifications

TCL Solar T Class panels carry a strong warranty package backed by the financial strength of a Fortune Global 500 company.

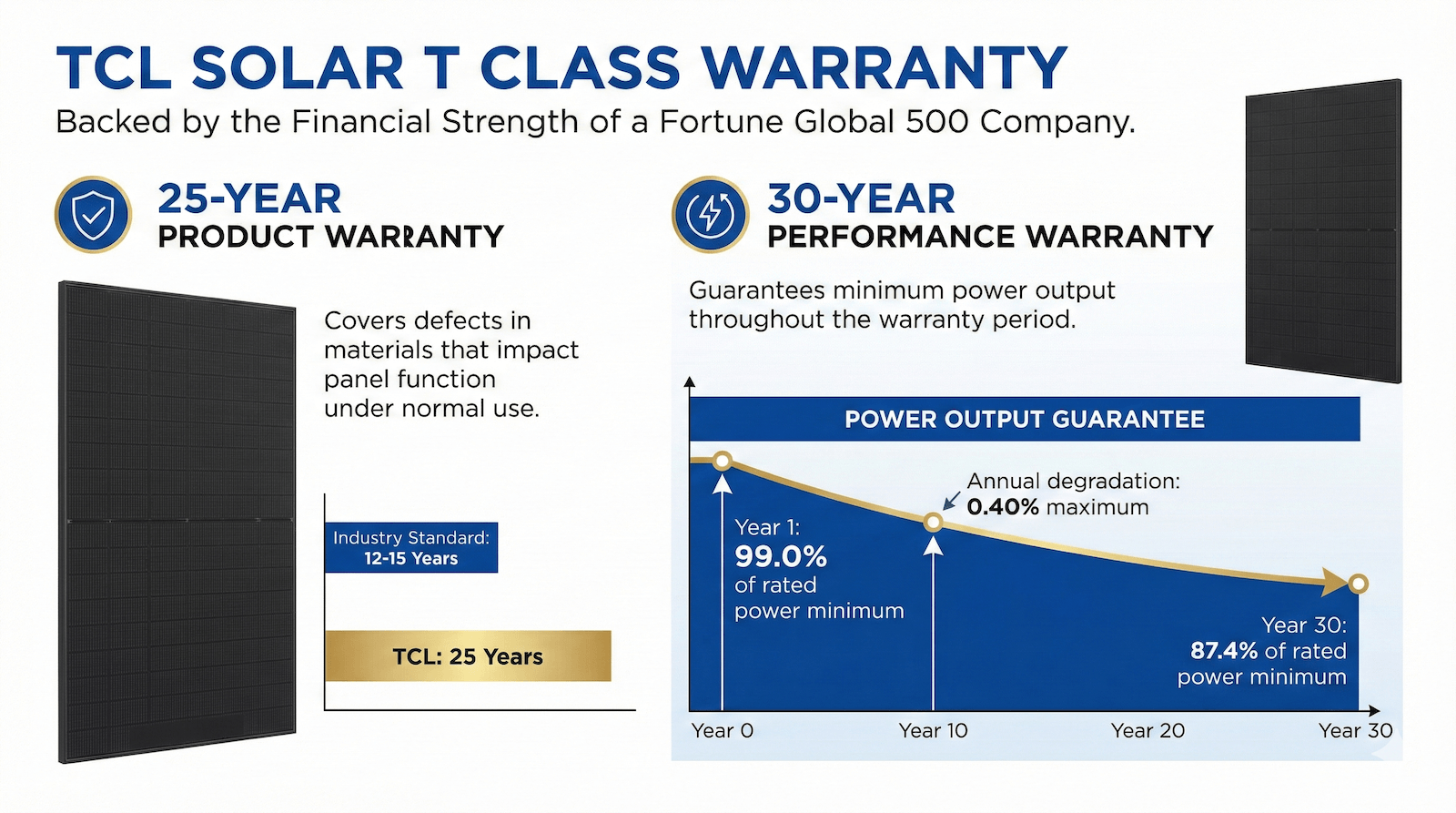

Understanding the 30-Year Performance Warranty

The T Class warranty structure comprises two elements:

Product warranty (25 years): Covers defects in materials that impact panel function under normal use. This exceeds the industry standard of 12-15 years and matches premium competitors.

Performance warranty (30 years): Guarantees minimum power output throughout the warranty period:

• Year 1: 99.0% of rated power minimum
• Annual degradation: 0.40% maximum
• Year 30: 87.4% of rated power minimum

The 0.40% annual degradation rate matches the S Class and is competitive against the industry typical of 0.5-0.55%, meaning the T Class will produce meaningfully more electricity over its lifetime compared to many standard alternatives.

For the 505W panel, the warranty guarantees at least approximately 441W output at year 30 – a strong lifetime value proposition for customers evaluating total cost of ownership.

It’s worth noting that the E Class offers a slightly lower degradation rate of 0.35% (guaranteeing 88.9% at year 30) – a point of differentiation for customers comparing the ranges. However, the T Class’s 0.40% rate still represents strong performance, and the price-to-warranty ratio may well favour the T Class for many projects.

Warranty Claims Process

Warranty claims should be directed through the distributing partner (Bimble Solar for UK purchases). TCL will, at their discretion, repair, replace, or refund covered panels. Replacement panels will be electrically and mechanically compatible with the original installation. TCL also covers reasonable transportation costs for valid claims.

The warranty is fully assignable to a third party – for example, if the property is sold – provided notice is given within 90 days and digital registration is completed.

Certifications

Certification	Standard/Rating
Performance Testing	IEC 61215
Safety Testing	IEC 61730
Fire Rating	Class A (IEC 61730-2 / UL 790)
Protection Class	Class II (IEC 61140)
Quality Management	ISO 9001:2015
Environmental Management	ISO 14001:2015
Health & Safety	ISO 45001:2018
EHS Compliance	Recycling Scheme

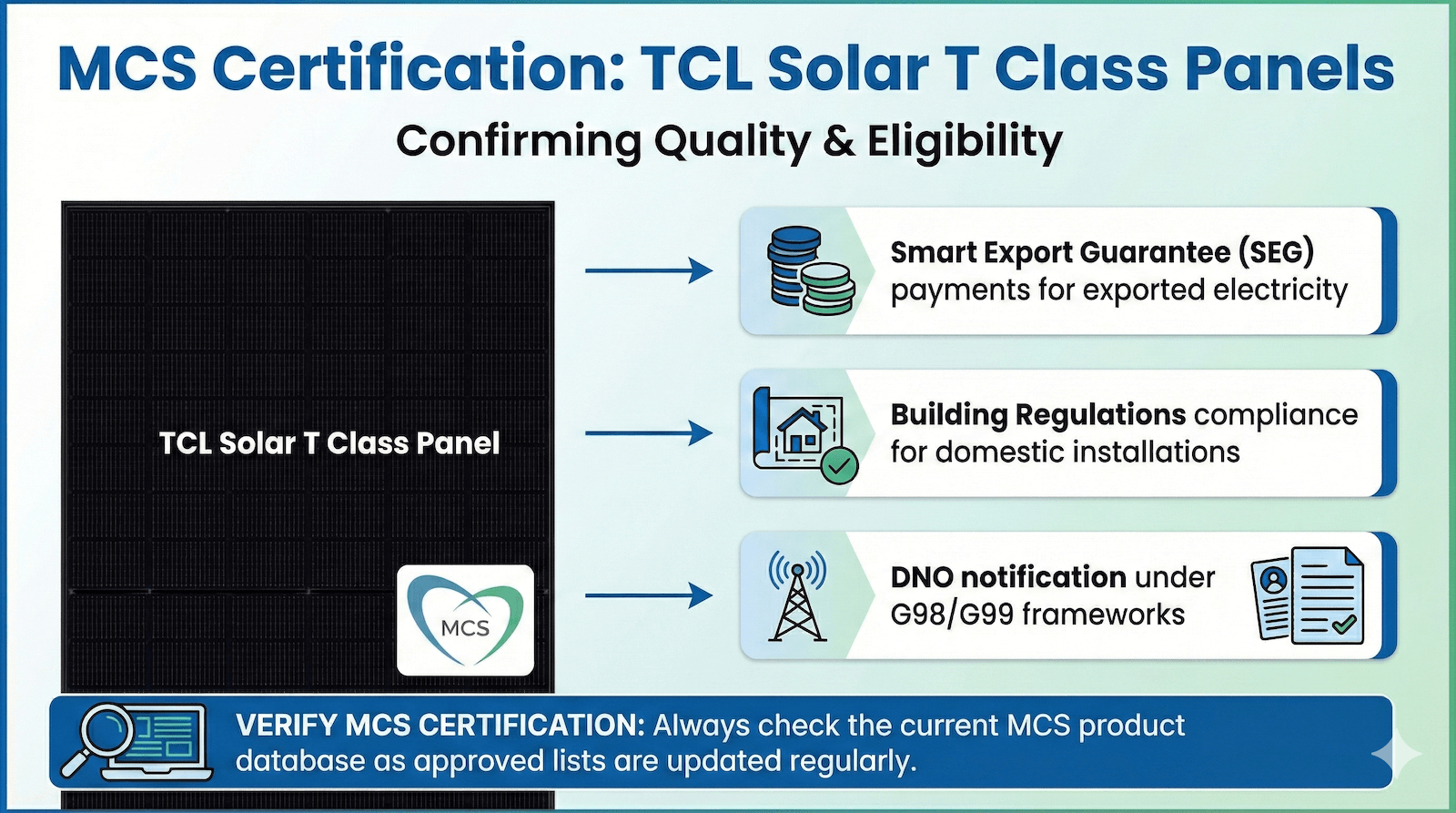

MCS Certification

TCL Solar T Class panels hold MCS (Microgeneration Certification Scheme) approval, confirming eligibility for:

• Smart Export Guarantee (SEG) payments for exported electricity
• Building Regulations compliance for domestic installations
• DNO notification under G98/G99 frameworks

MCS certification should always be verified against the current MCS product database when specifying systems, as approved product lists are updated regularly.

Installation Considerations

The following guidance addresses practical questions commonly raised by installers new to the T Class range.

String Sizing and Inverter Compatibility

With open-circuit voltages around 40V and a 1,500V maximum system voltage rating, the HSM-ND54-DR series supports long strings typical of UK residential and commercial installations:

• Maximum theoretical string length: approximately 37 panels (after cold-temperature Voc correction)

• Practical UK residential strings: 10-15 panels typical

The T Class is compatible with string, hybrid, optimiser, and microinverter systems from major manufacturers.

When using optimisers or microinverters, confirm input current limits against the module’s 15.88A Isc (505W panel). This is notably higher than the S Class’s 13.53A Isc, so installers familiar with the S Class should verify that their chosen power electronics can handle the T Class’s higher short-circuit current.

Mounting and Handling

At 27 kg, T Class panels are the heaviest in the TCL Solar residential and commercial range. Two-person handling is recommended as standard, and is particularly important when working at height or in windy conditions.

The panel dimensions (1961mm × 1134mm) make the T Class noticeably taller than the S Class (1790mm) and E Class (1757mm). This 171mm-204mm difference is relevant when planning tight roof layouts, particularly on properties with limited rafter length or dormer windows that constrain available panel height.

Standard mounting clamps compatible with 30mm frames are required – the same frame depth as the S Class and E Class, so no additional clamp sourcing is needed if you already stock 30mm-compatible hardware. The panel’s 2,400 Pa wind load rating accommodates typical UK roof installations without requiring additional structural assessment in most cases.

Cable Management

The 1,400mm factory-fitted cables with MC4-EVO2 connectors provide good reach for most residential and commercial installations. This is 200mm longer than the S Class cables (1,200mm), which is a practical advantage for cable routing, particularly where junction box access or inter-panel spacing requires additional cable length.

A note for installers working across the TCL Solar range: the T Class uses Stäubli MC4-EVO2 connectors, while the S Class uses MC4-EVO2A. If you are mixing ranges on the same project, confirm cross-compatibility of the specific connector variants before installation.

Why Buy TCL T Class from Bimble Solar?

Bimble Solar has established itself as a trusted UK distributor for installers seeking quality products with reliable service. Our TCL Solar T Class stock offers:

• UK-held inventory for rapid delivery
• Trade account pricing for registered installers
• Technical support from our experienced team
• Straightforward warranty support through our UK operation
• Complementary products including mounting systems, inverters, and batteries

As a distributor offering the full TCL Solar range – E Class, S Class, and T Class – Bimble Solar can help you match the right panel to each project’s requirements, whether that’s the T Class for value-driven installations, the S Class for shaded roofs, or the E Class for premium aesthetics.

We’ve worked with TCL SunPower Global to ensure UK installers have access to full technical documentation, specification sheets, and installation guidance in English.

Frequently Asked Questions

Are TCL Solar T Class panels any good?

Yes. TCL Solar T Class panels are manufactured by a Bloomberg NEF Tier 1 company backed by the financial strength of TCL Group – a Fortune Global 500 company with over $42 billion in annual revenue. The T Class uses proven N-type TOPCon half-cut cell technology with SMBB interconnection, and carries one of the longest warranty terms available in the UK market (25-year product, 30-year performance). The panels hold all relevant IEC certifications for professional installation.

Is TCL Solar the same as SunPower?

TCL SunPower Global operates both the TCL Solar and SunPower brands following TCL’s acquisition of Maxeon Solar Technologies’ EMEA operations in early 2025. In the UK market, you’ll find both TCL-branded panels (including the T Class) and SunPower-branded panels available through the same distribution network. The T Class is a TCL Solar product built on TCL’s own TOPCon cell technology, whilst the SunPower brand is associated with the shingled Performance panels and back contact Maxeon panels.

What warranty do TCL T Class panels have?

TCL T Class panels carry a 25-year product warranty covering defects in materials, plus a 30-year performance warranty guaranteeing at least 87.4% of rated power output at year 30. The 0.40% maximum annual degradation rate is competitive against typical industry standards of 0.5% or higher, meaning T Class panels will produce more electricity over their lifetime compared to many alternatives.

Are TCL Solar T Class panels MCS approved?

Yes, TCL Solar T Class panels hold MCS certification, making them eligible for Smart Export Guarantee (SEG) payments and compliant with UK Building Regulations requirements for domestic solar installations.

What is the difference between TCL T Class and S Class?

The T Class uses TOPCon half-cut cell technology with Super Multi Busbar interconnection – a proven, cost-effective approach that delivers solid efficiency and reliability at an accessible price point. The S Class uses TOPCon shingled cell technology – one-third cut cells overlapped and bonded with conductive adhesive – delivering superior shade performance and higher power density per square metre. Both use N-type cells and glass-glass construction with identical warranty terms (25-year product, 30-year performance, 0.40% annual degradation). Choose T Class for well-oriented roofs with minimal shading and value-focused projects; choose S Class for shade-challenged roofs or when maximising energy yield under real-world conditions is the priority.

What is the difference between TCL T Class and E Class?

The T Class is the most accessible panel in the TCL Solar range, using TOPCon half-cut cells at a competitive price point. The E Class uses back contact cell technology with all electrical connections on the rear surface, producing higher peak efficiency (up to 23.5%) and a clean all-black appearance with no visible busbars or grid lines. The E Class carries a slightly lower degradation rate (0.35% vs 0.40%) and a higher guaranteed output at year 30 (88.9% vs 87.4%). Choose T Class when budget is the primary driver; choose E Class for premium aesthetics, space-constrained roofs, or when long-term energy yield justifies the price premium.

What is TOPCon solar panel technology?

TOPCon (Tunnel Oxide Passivated Contact) is an advanced solar cell technology that builds on older PERC designs by adding an ultra-thin tunnel oxide layer that reduces electron recombination losses. The result is higher cell efficiency, lower degradation rates, better performance in high temperatures and low light, and superior bifacial characteristics. TOPCon using N-type silicon has rapidly become the dominant technology in the global solar panel market, replacing P-type PERC as the mainstream choice for residential and commercial installations.

Can TCL T Class panels be used with any inverter?

TCL T Class panels are compatible with string inverters, hybrid inverters, and microinverter/optimiser systems from all major manufacturers. The 1,500V maximum system voltage and standard MC4-EVO2 connectors ensure broad compatibility. When using microinverters or optimisers, verify the unit’s current handling capacity accommodates the panel’s 15.88A short-circuit current (for the HSM-ND54-DR505 505W panel) – this is higher than some residential panels, so check your power electronics specifications.

Next Steps

TCL Solar T Class panels offer UK installers a strong value proposition: proven TOPCon half-cut technology, competitive pricing, robust warranty coverage, and the backing of a financially secure Tier 1 manufacturer.

For installations with good roof orientation and minimal shading – the majority of straightforward residential and commercial projects – the T Class delivers reliable performance without the premium pricing of shingled or back contact alternatives. And for customers with shading challenges or premium aesthetics requirements, the S Class and E Class sit within the same TCL Solar range, available from the same distributor.

To discuss trade pricing, check current stock availability, register for a trade account, or arrange delivery, contact Bimble Solar's trade team. We’re here to support your projects from specification through to installation.
