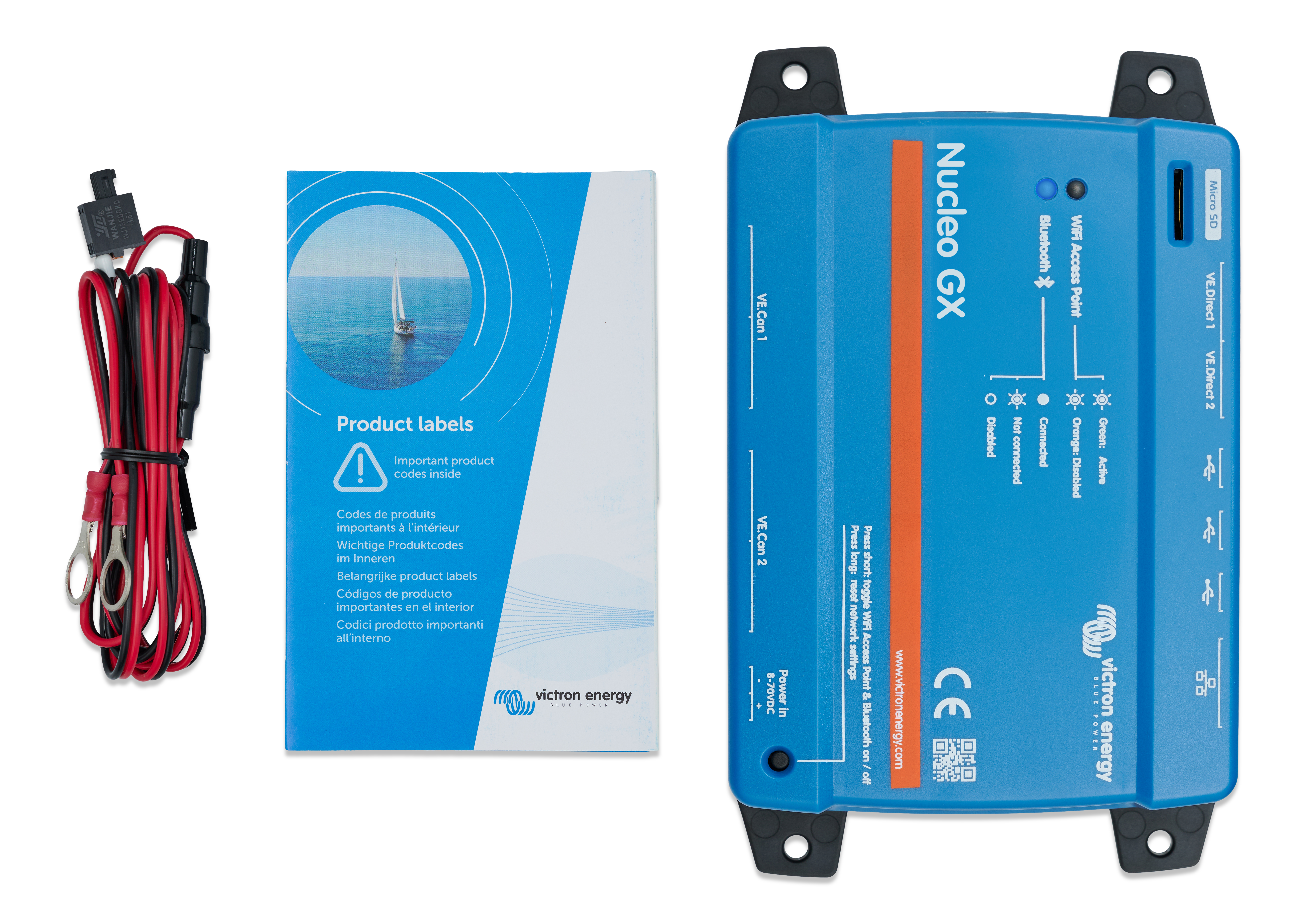

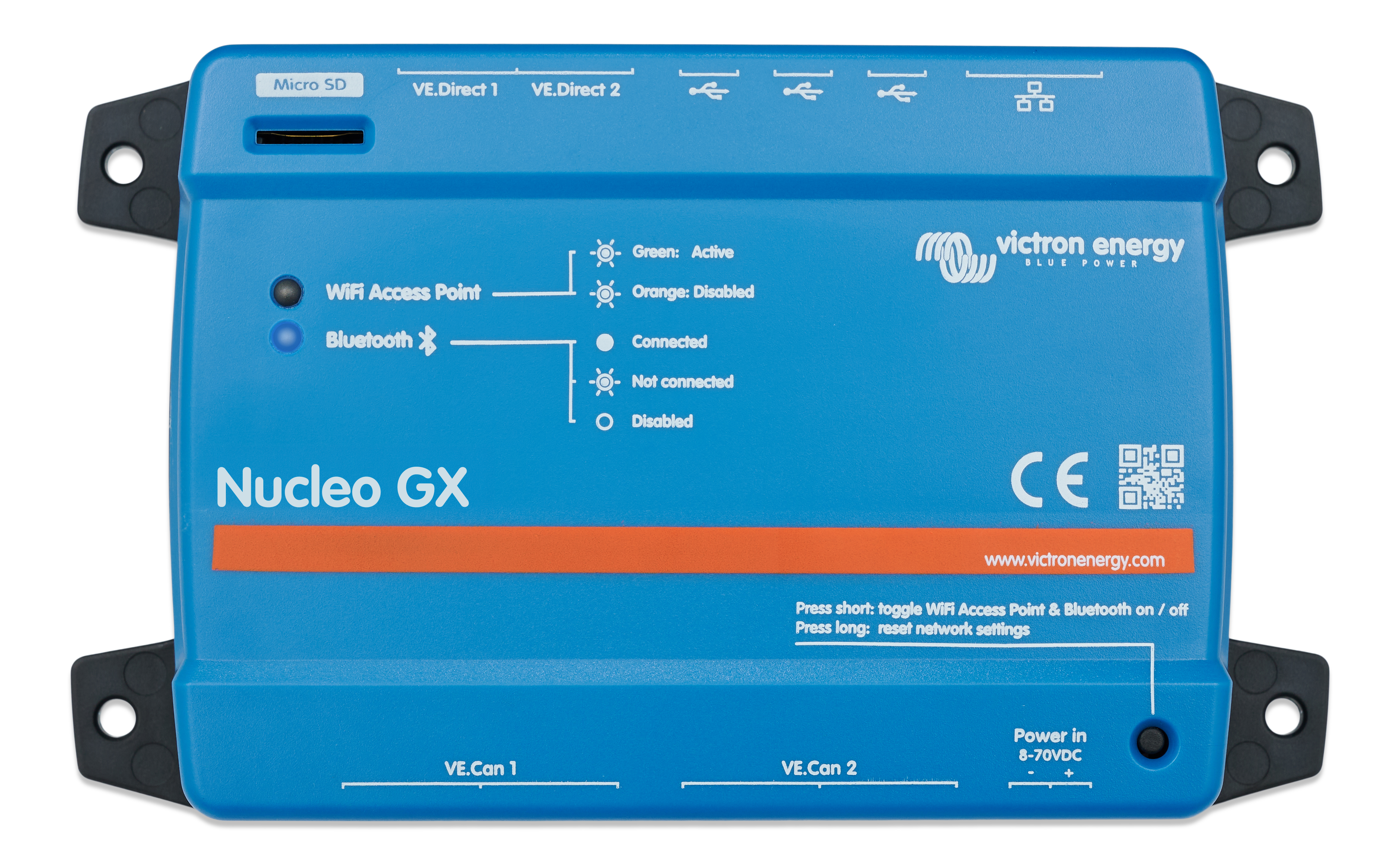

The Nucleo GX is a compact, high-performance GX device that offers Ekrano GX-level speed at a lower cost.
Powered by a quad core processor, it connects up to 25 devices via VE.Direct and USB, plus more via VE.Can, and provides real time monitoring of battery status, power consumption, and PV, generator, or mains input, along with automated generator start/stop and alerts. Where needed, the I/Os can be extended with the following optional USB accessories: the MK3-USB interface, GX I/O Extender 150, or GX Tank 140.
The system can be managed from anywhere through Remote Console on the VRM Portal, the VictronConnect app, or a web browser. For local display and control, an Android GX WiFi Display can be added.
With its focused feature set, the Nucleo GX is an ideal choice for ESS and off grid installations built around the Multi RS.
| Victron Specifications | |
| Supply Voltage Range | [8, 70] V |
| Power Draw | 3 W |
| Mounting | Wall or DIN rail 35mm (optiona ac |
| Ve Direct | 2 (max. possible VE.Direct devices: 25) |

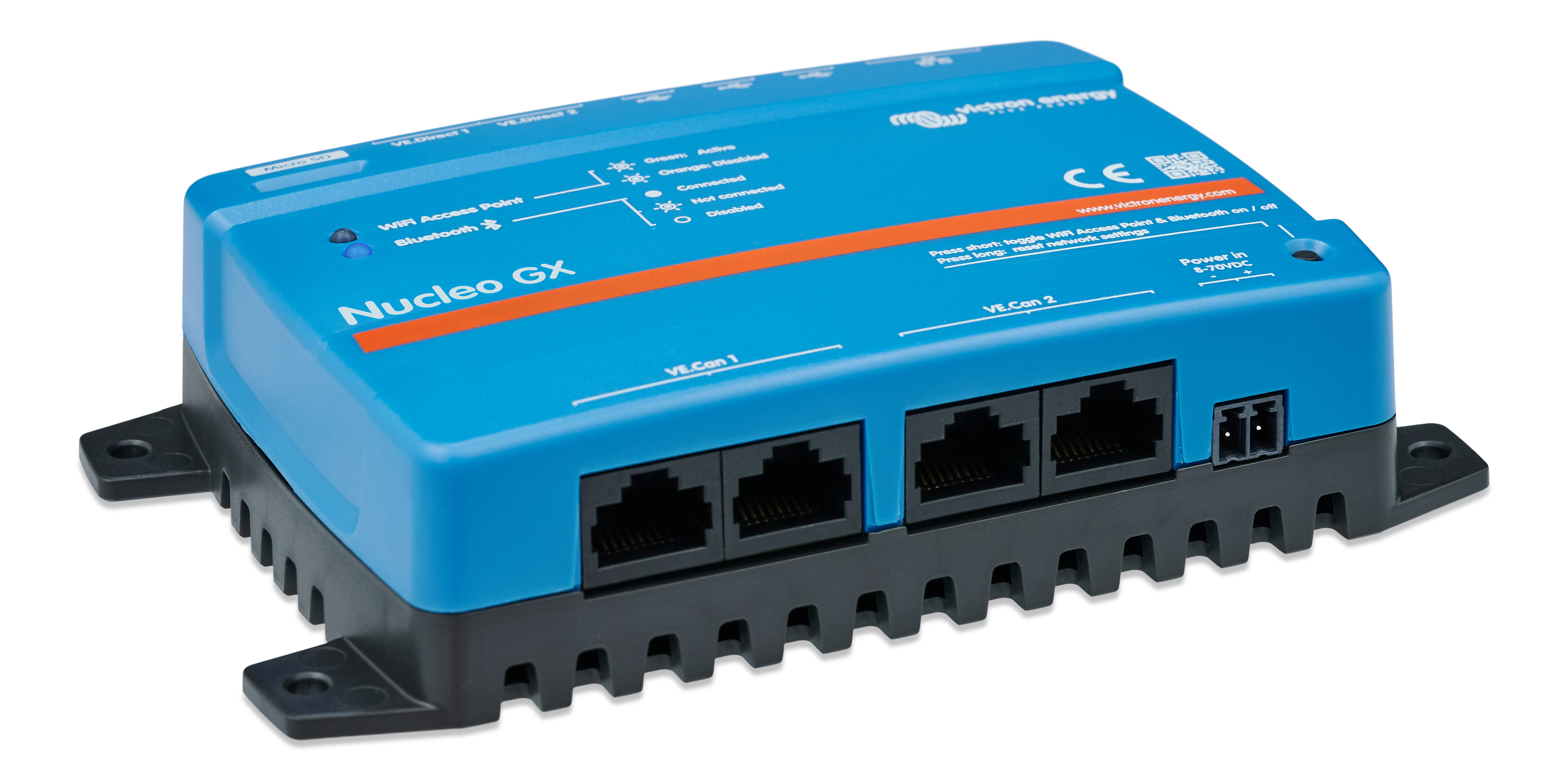

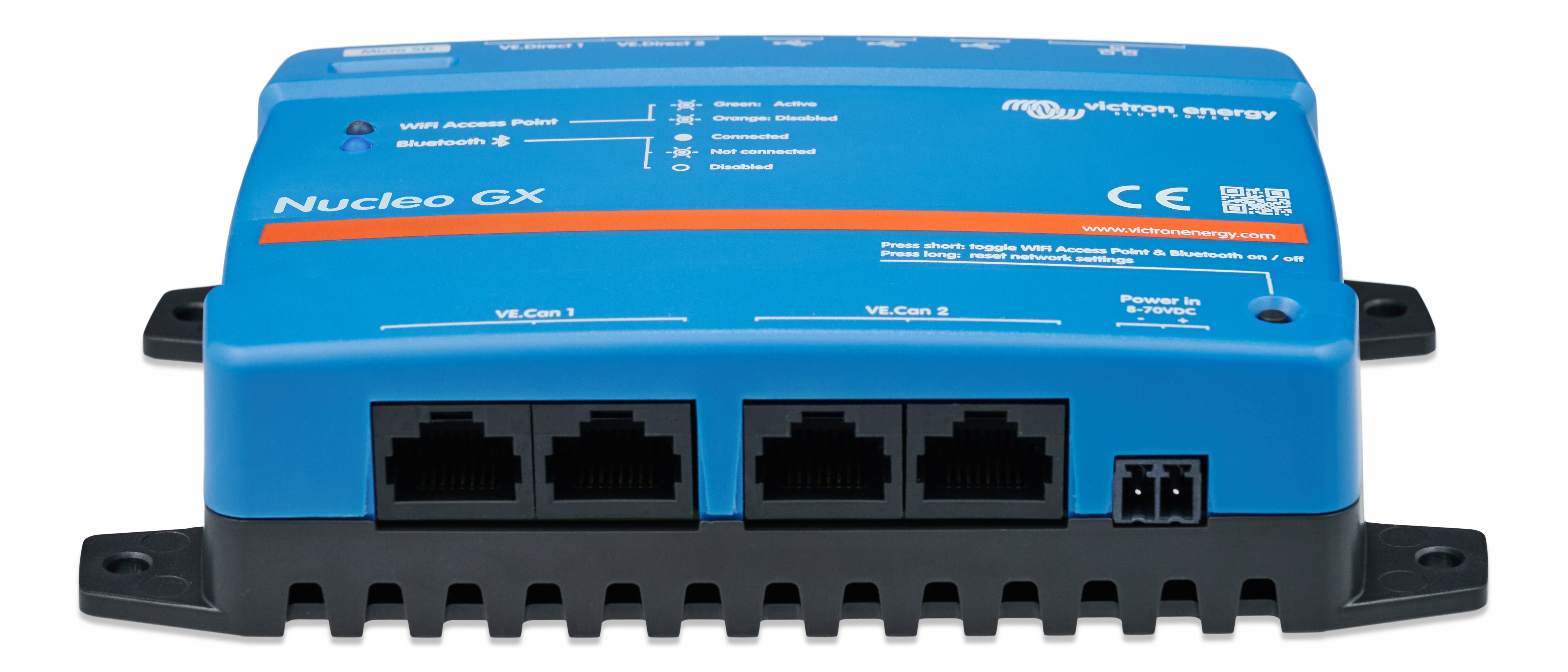

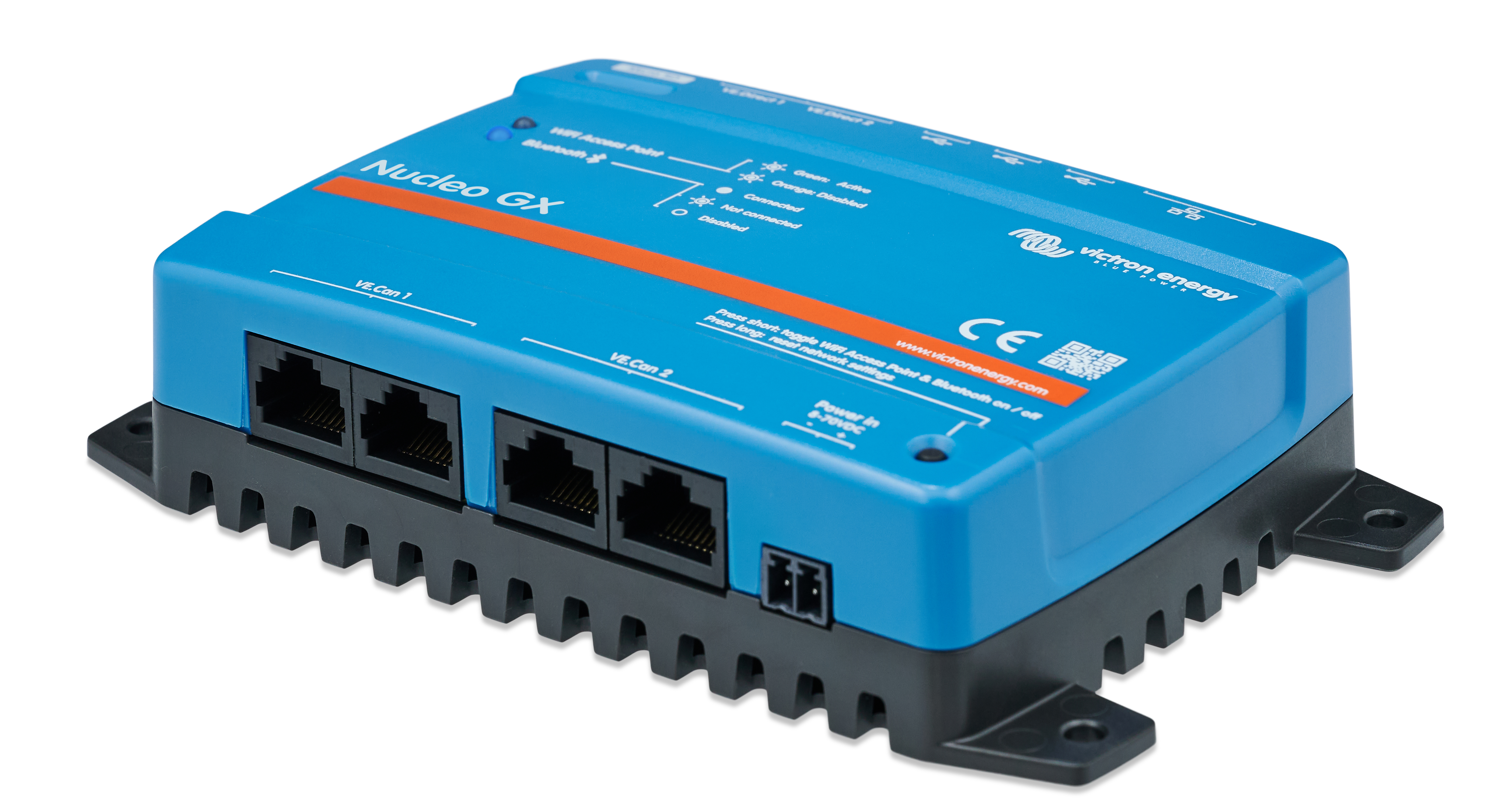

| Ve Can | Yes VE.Can 1 isolated VE.Can 2 non-isolated |
| Bluetooth | Yes |

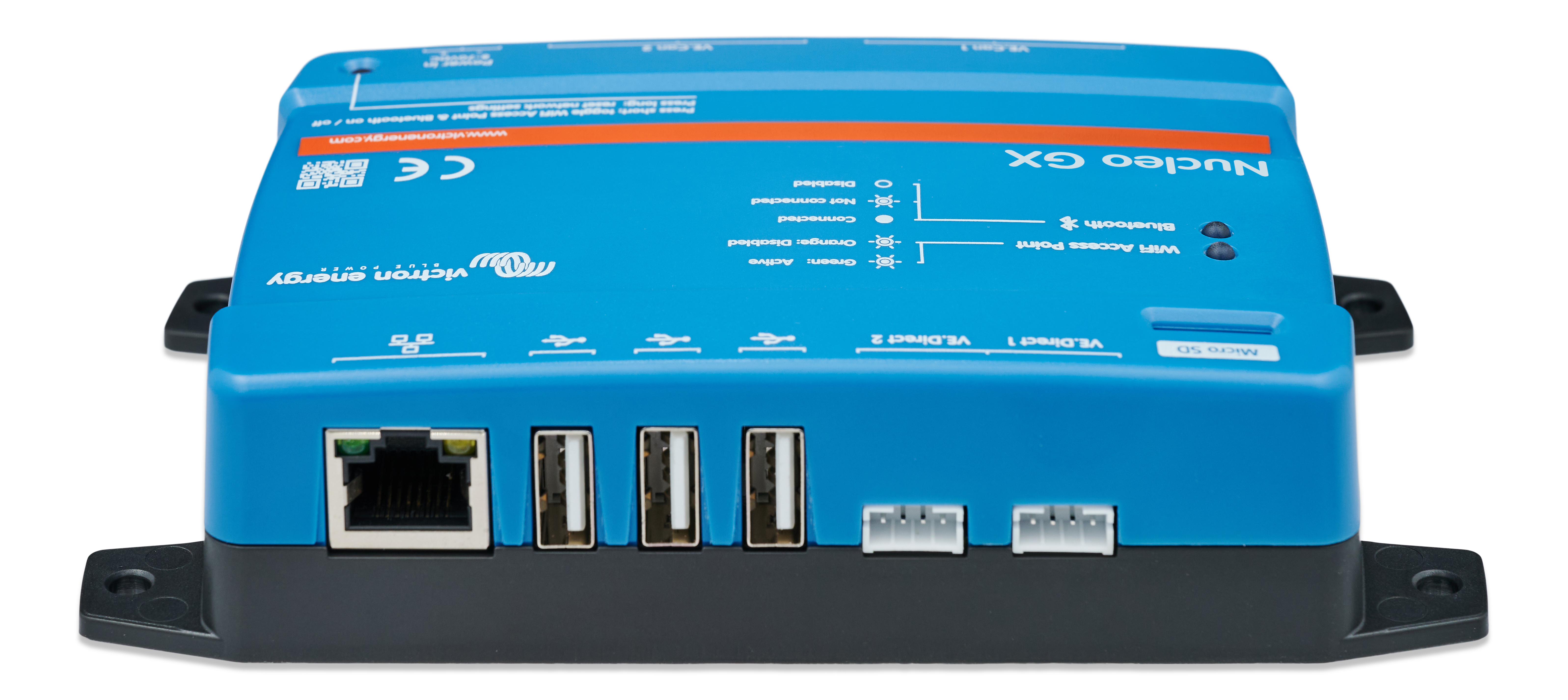

| Ethernet | 10/100 RJ45 socket - isolated except shield |
| Wifi | Built-in |
| Usb | 3 USB Host ports |
| Micro Sd Card Slot | Yes |
| Cellular | No |
| Antenna | No |
| Factory Sim | No |
| Resistive Tank Level Inputs | 0 |
| Temperature Sense Input | 0 |
| Digital Inputs | 0 |
| Ruuvi Tag Support | Yes |
| Relays | 0 |
| Buzzer | 1 |
| Colour | Blue (RAL 5012) |
| Protection Category | IP20 |
| Height | 78 mm |
| Width | 154 mm |
| Depth | 48 mm |
| Safety | IEC 62368-1 |
| Emission | EN 3011489-1,EN 3011489-17 |
| Automotive Directive | ECE R10-7 |
| Manufacturer Warranty | |
| Standard Warranty: | 5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote) |
| Warranty Exceptions: | Lead acid batteries 2 years Lithium batteries 3 years |
