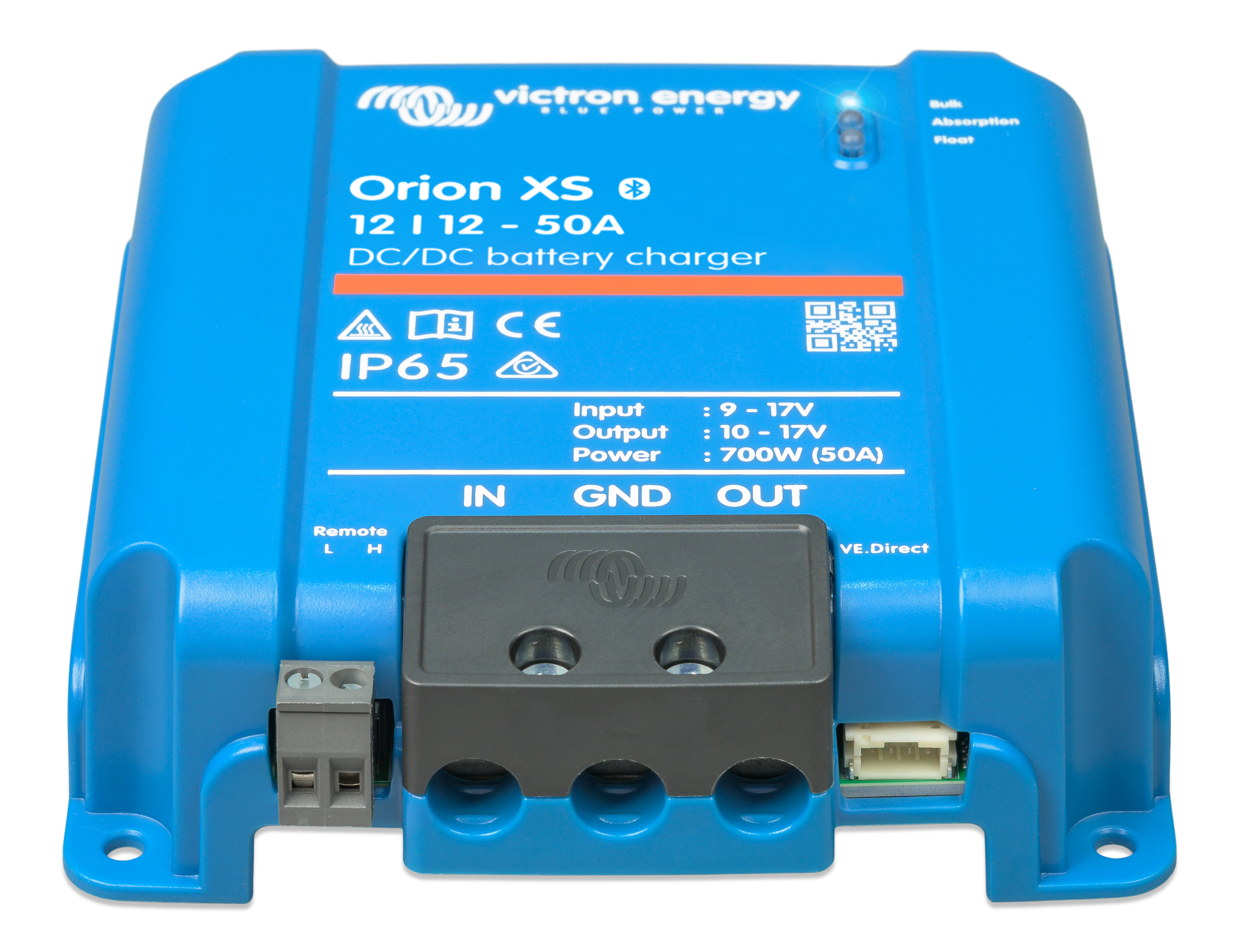

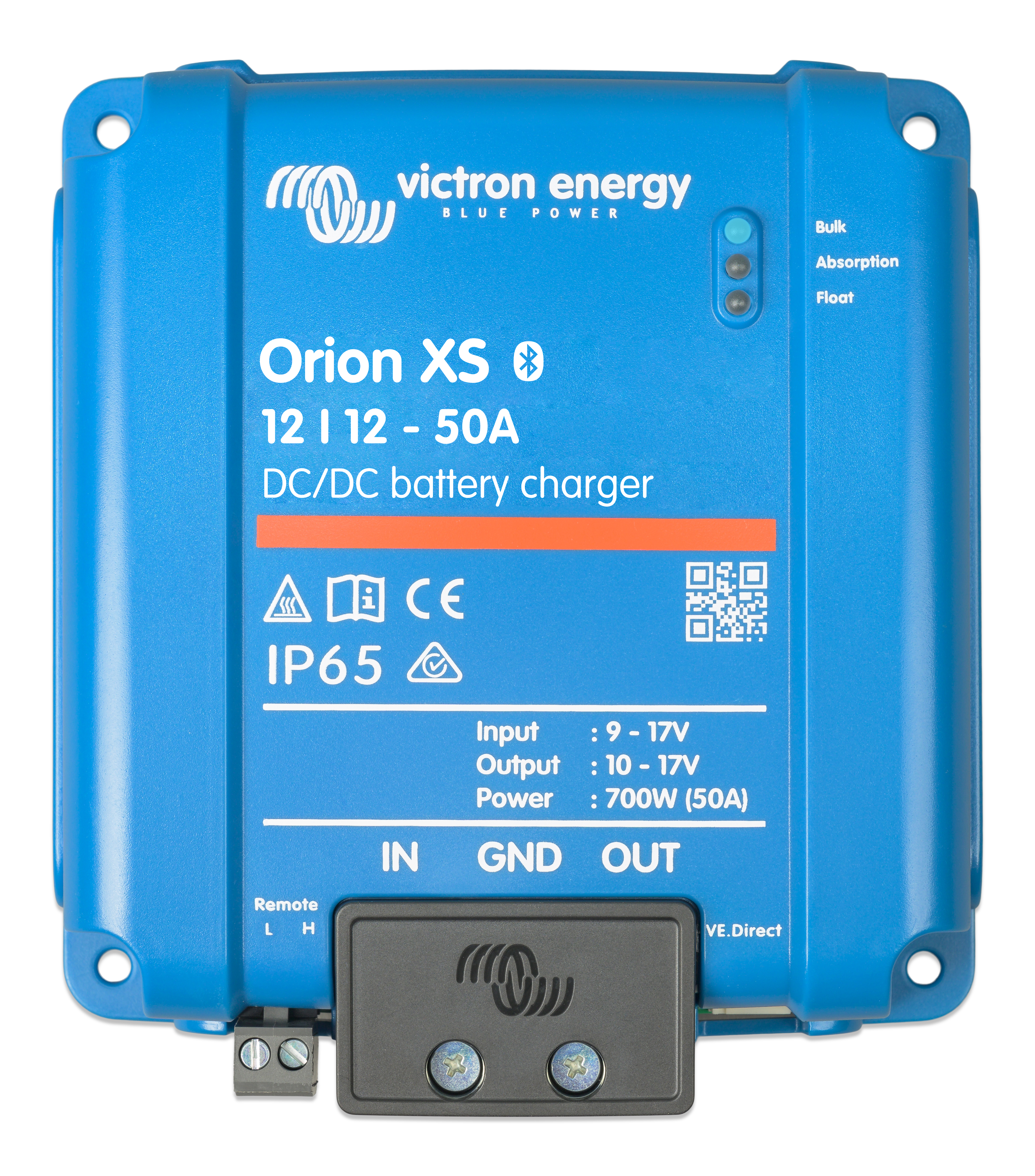

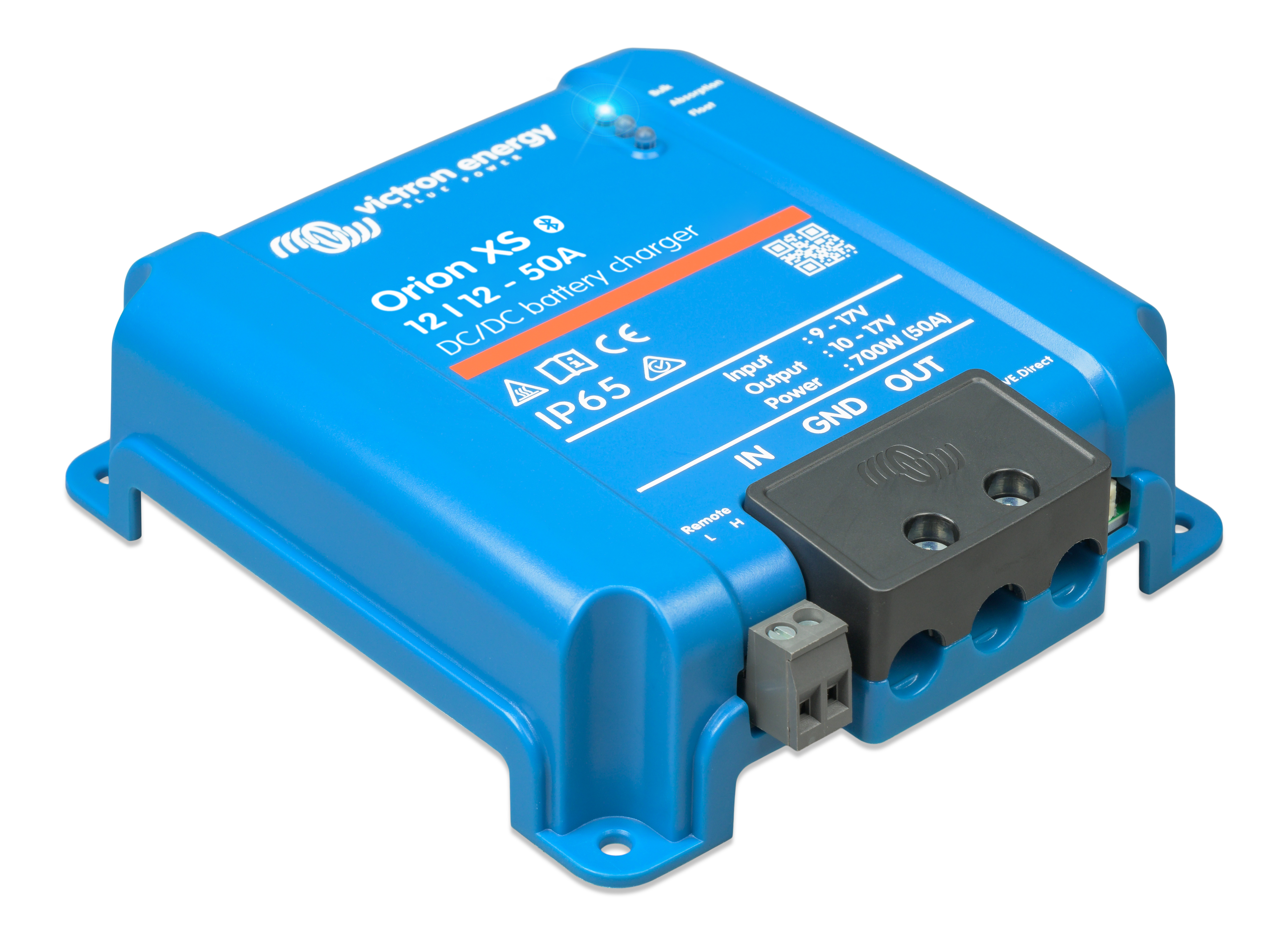

Victron Orion XS 12/12-50A DC-DC battery charger - with EMC improvements

Brand: Victron Energy

Price: £186.25 +vat
£223.50 (including VAT)

Pay Monthly Finance - Apply Now

Availability: In Stock - Delivery 1-3 days or collect from near Lewes

SKU: ORI121217050

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.

ID: 3799

NEW Orion XS model with EMC improvements – recommended for marine use as well as for other applications with VHF radios

Engineered from the ground up, the Orion XS redefines adaptive DC-DC charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system. Stay in charge with configurable input and output currents, and rest assured that your Orion XS will run at full capacity up to 40°C. The innovative aluminium circuit board cooling technology delivers an astonishing 98% efficiency without the need for fans. As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.

Fully configurable
Engine shutdown detection
Intelligent charge algorithms
Works with VictronConnect
Remote monitoring optional

Victron Specifications
Input Voltage	12 V
Input Voltage Range	[9, 17] V
Input Current Setting Range	[1, 50] A
Output Voltage	12 V
Output Voltage Range	[10, 17] V
Output Current Setting Range1	[1, 50] A
Output Voltage Tolerance	0.25 %
Output Voltage Noise	10 mVrms
Cont Output Current Rating40	50 A
Output Derating Above40	1.5 %
Maximum Shortcircuit Current	50 A
Power Rating	700 W
Continuous Output Power40	700 W
No Load Current Consumption	100 mA
Standby Current Consumption	1.5 mA
Max Efficiency	98.5 %
Power Supply Use	1
Parallelable	1
Programable	1
Remote On Off Terminal	1
Bluetooth	1
Victron Connectapp	1
Ve Smart Networking	1
Dvvc Compatibility	1
Data Communication	VE.Direct,Bluetooth
Protections	Overload,Short-circuit proof,Over temperature
Max Humidity	95 %
Remote On Off Terminal Connection	Pluggable screw terminals (included)
Colour	Blue (RAL 5012)
Material	ABS
Protection Category	IP65
Weight	0.33 kg
Height	137.3 mm
Width	123.1 mm
Depth	40 mm
Safety	IEC 62477-1
Emission	EN 300328,EN 3011489-1,FCC 15B,ICES-003
Automotive Directive	ECE R10-6

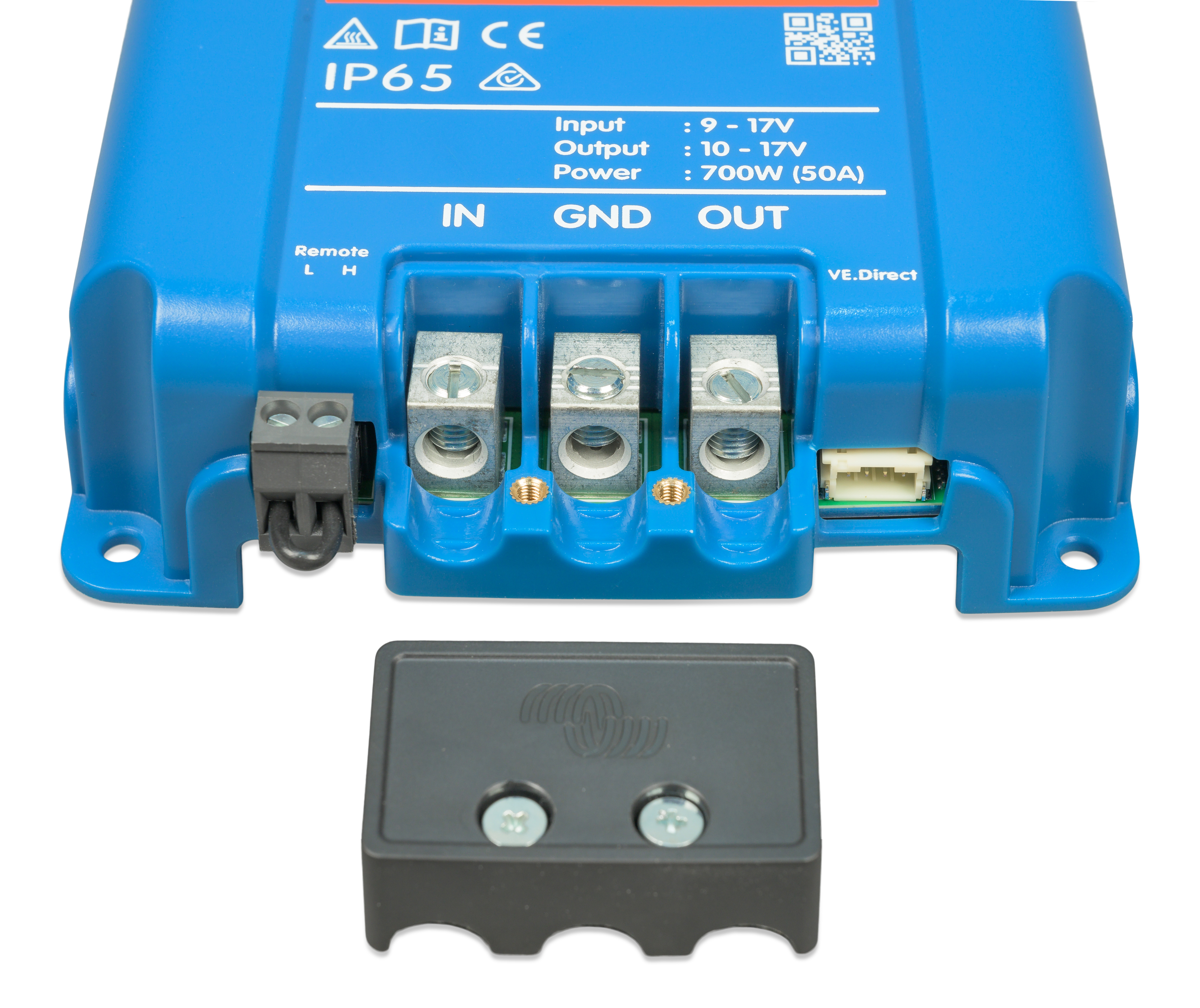

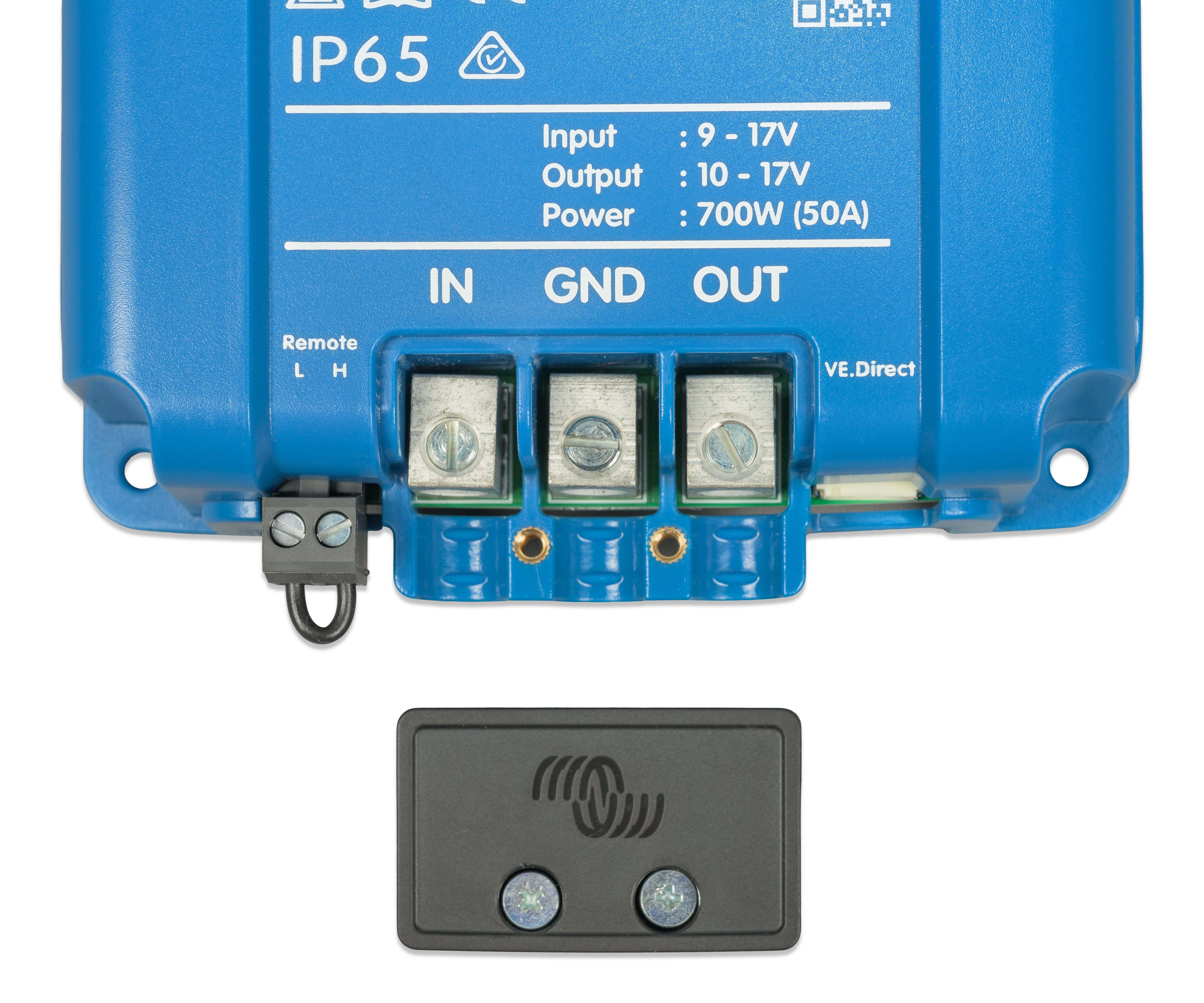

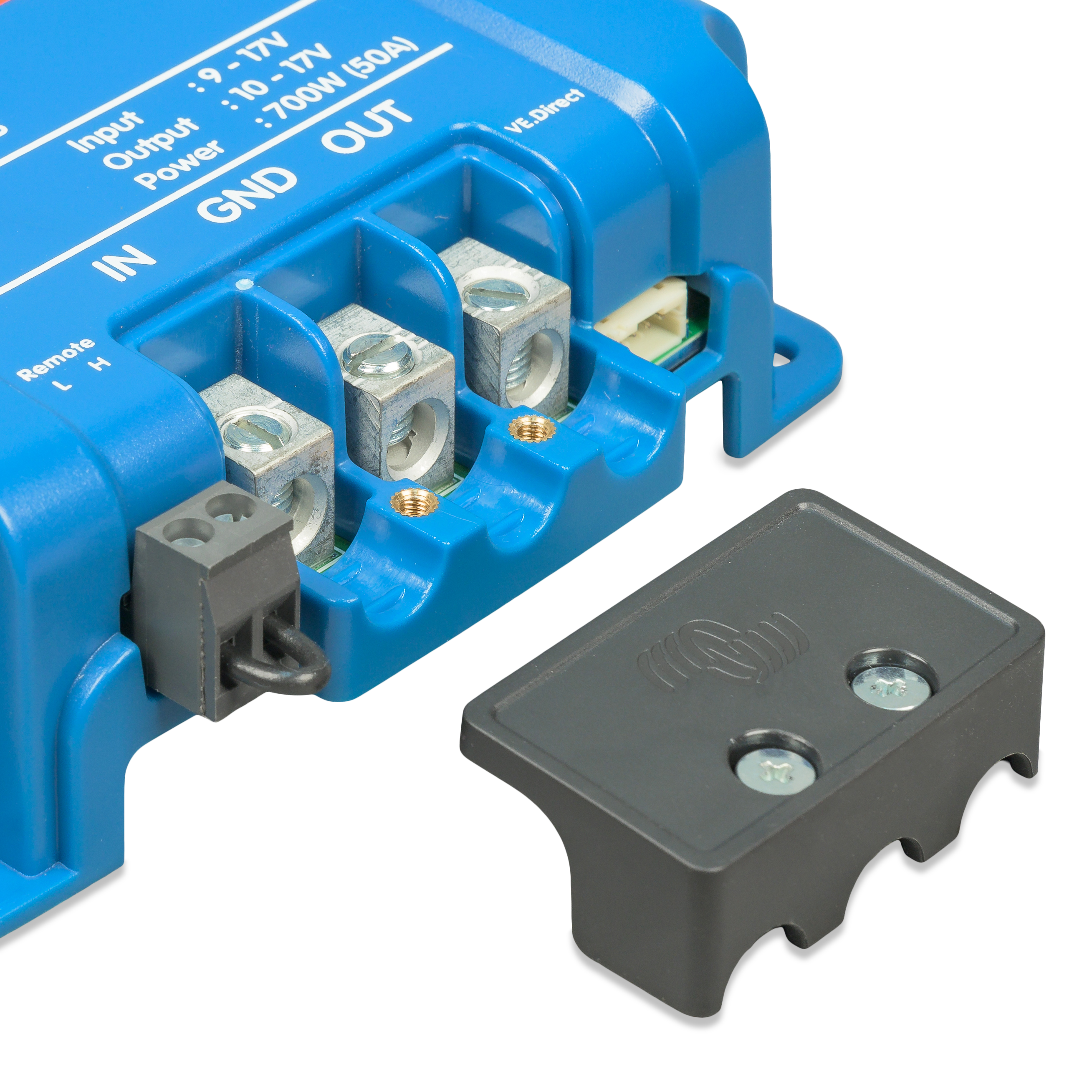

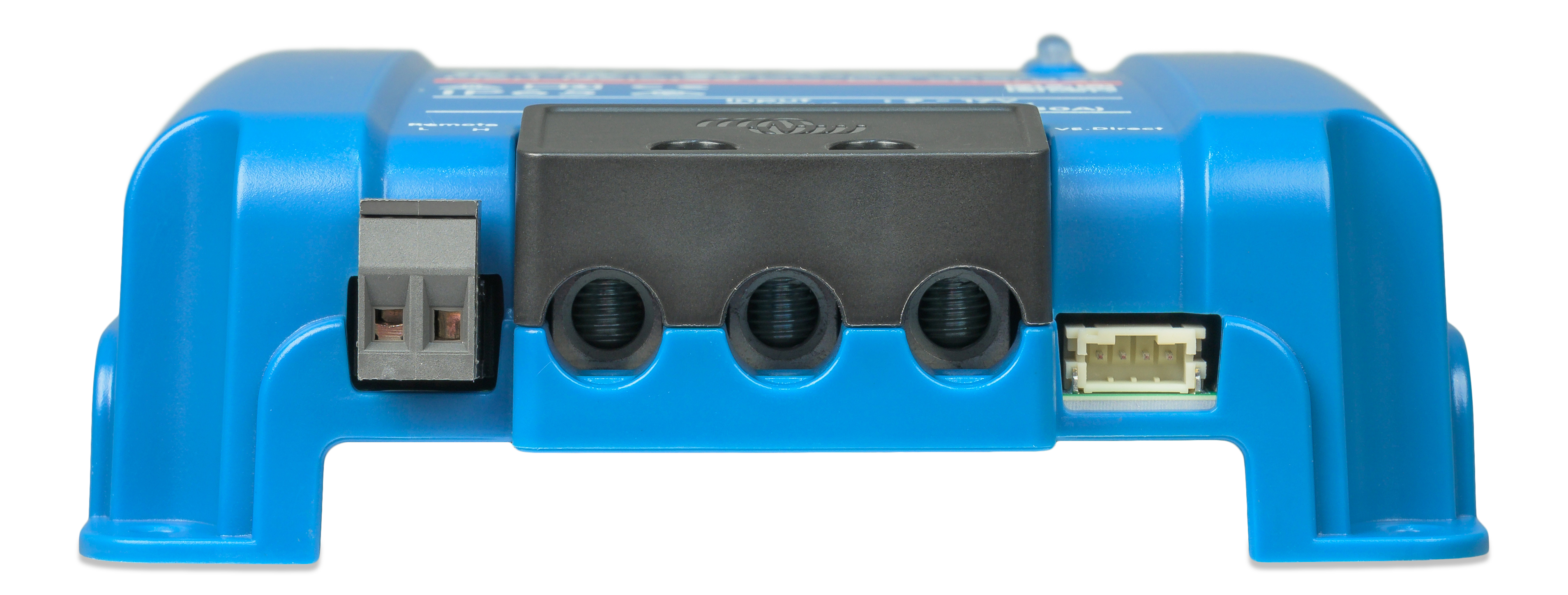

Cable Connection
Type and size	60A or 70A fuses
Size mm2	16mm up to 5m. 25mm >5m (16mm ends into Orion XS required)

Manufacturer Warranty
Standard Warranty:	5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions:	Lead acid batteries 2 years Lithium batteries 3 years
