Victron VE.Bus V2 Lithium BMS - For all Victron Lithium Batteries on VE BUS

Victron VE.Bus V2 Lithium BMS - For all Victron Lithium Batteries on VE BUS
Brand: Victron Energy
Price: £108.32 +vat
£129.98 (including VAT)
Pay Monthly Finance - Apply Now
Availability: In Stock - Delivery 1-3 days or collect from near Lewes

SKU: BMS300200200

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.


ID: 3594

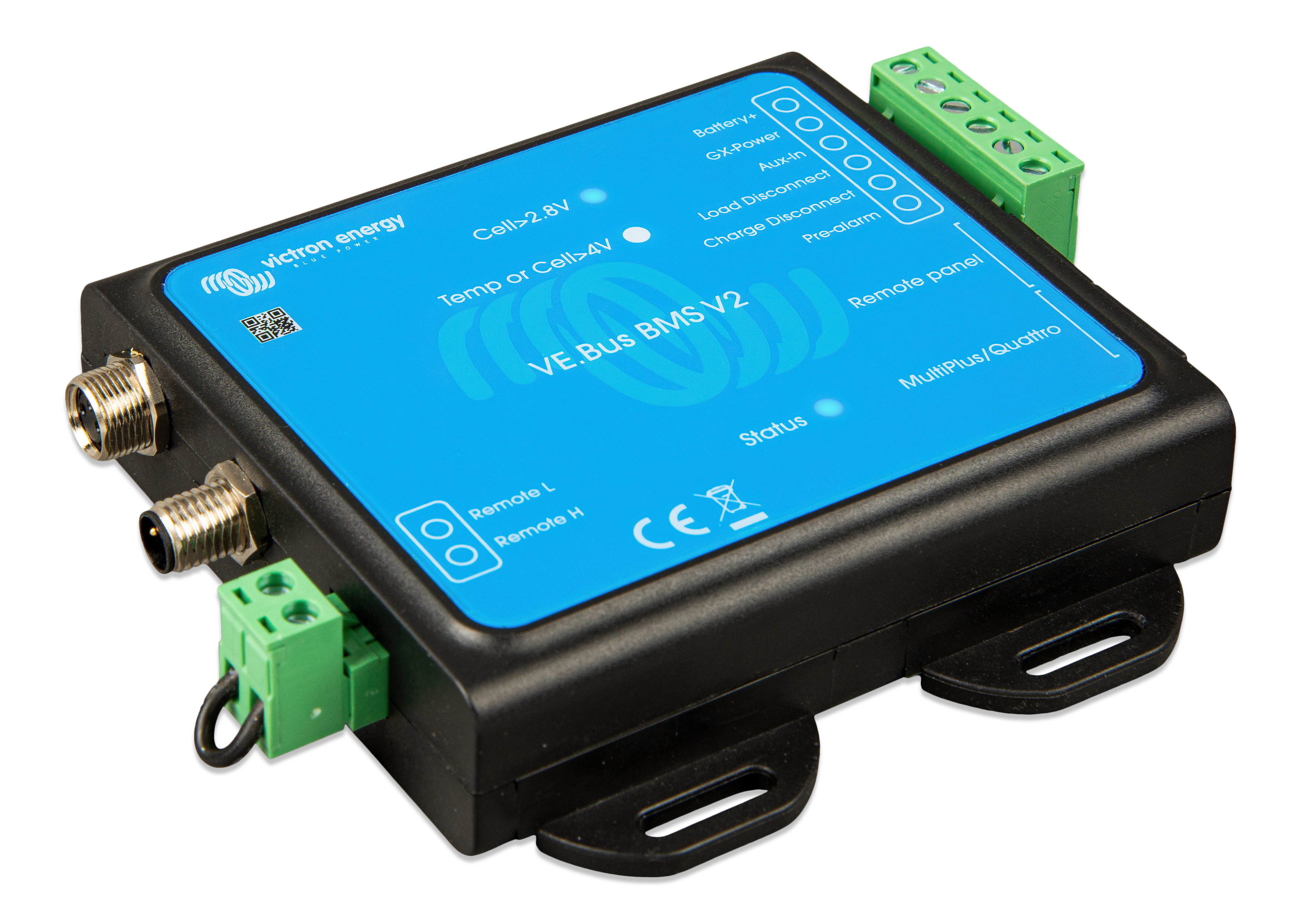

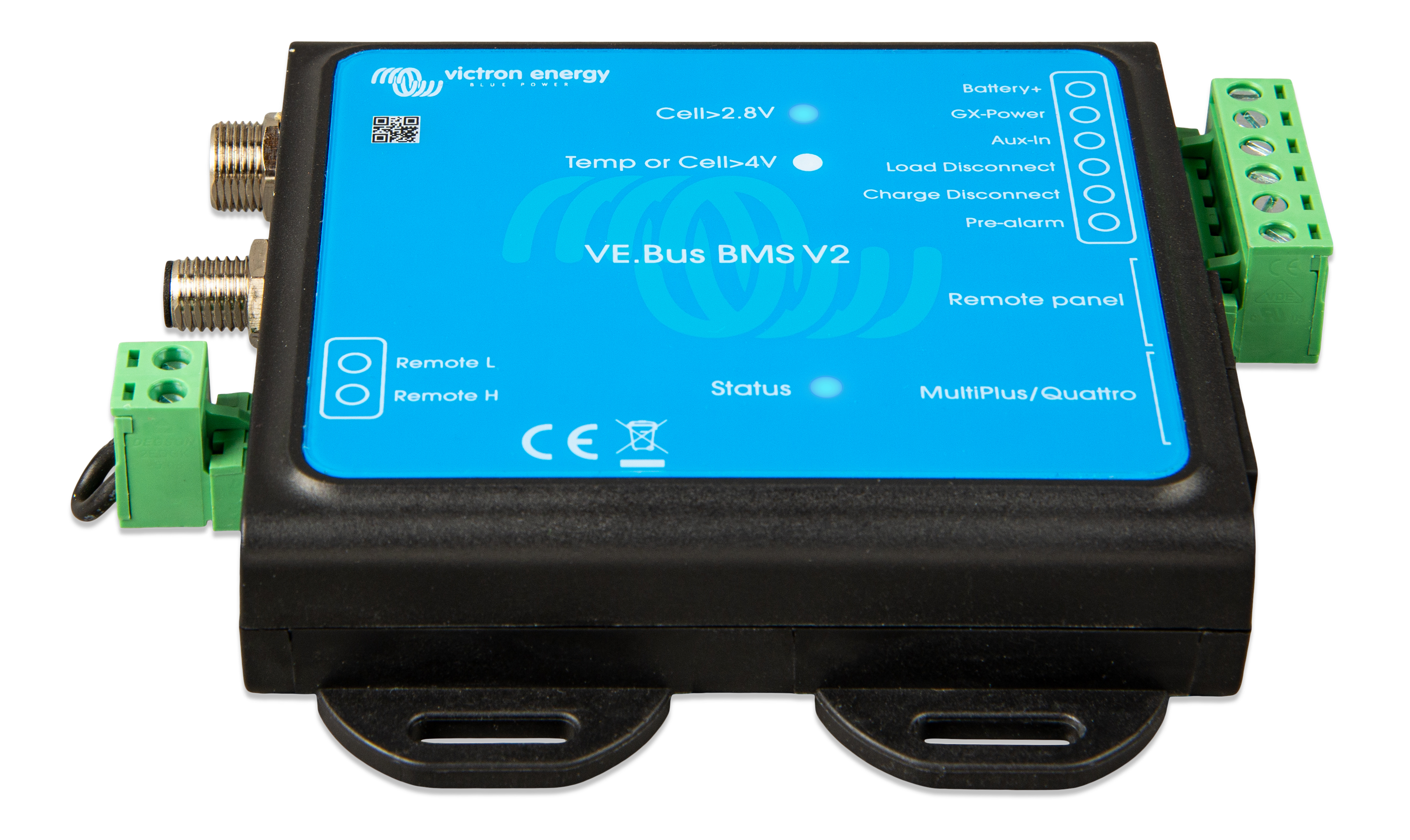

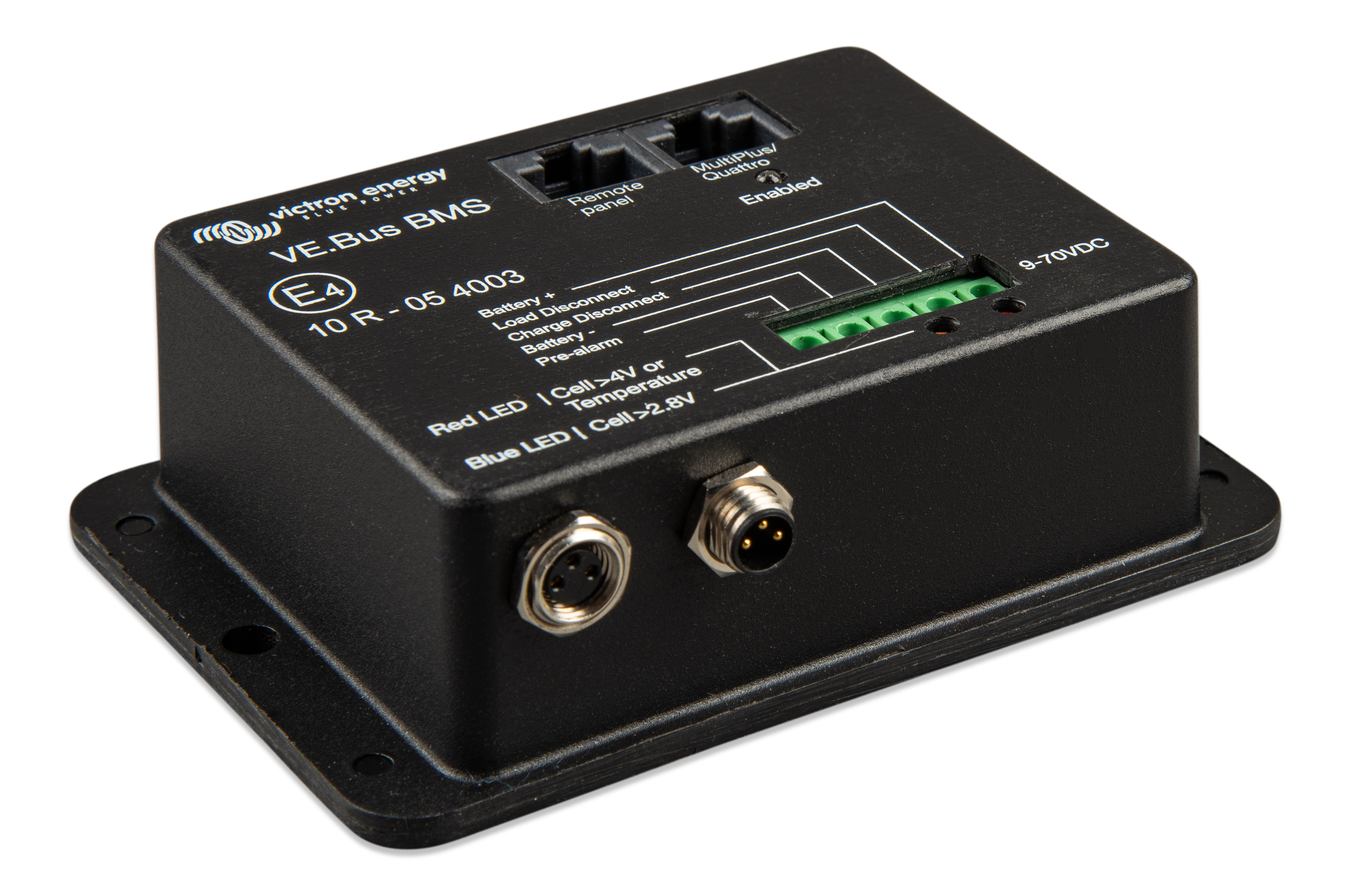

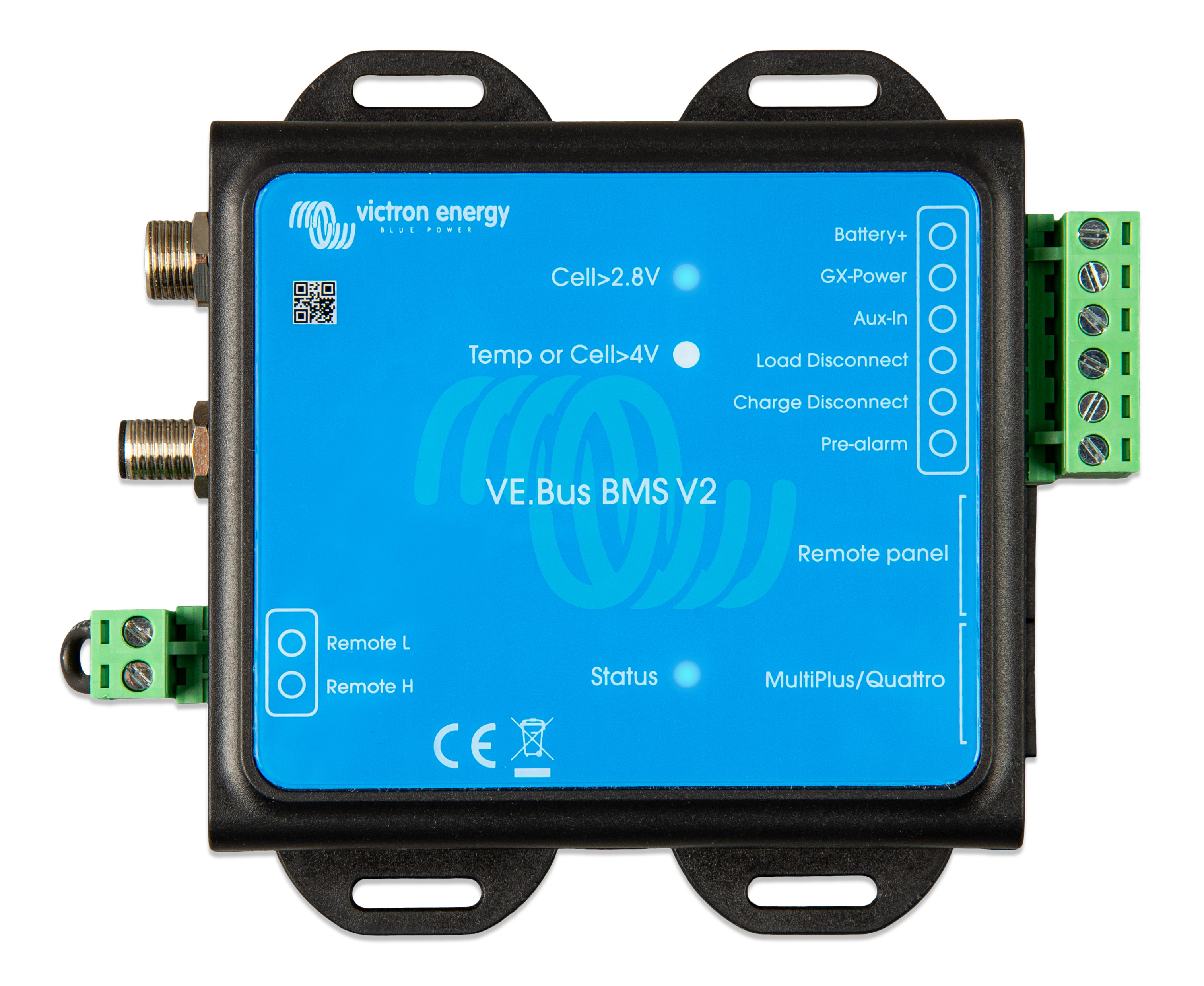

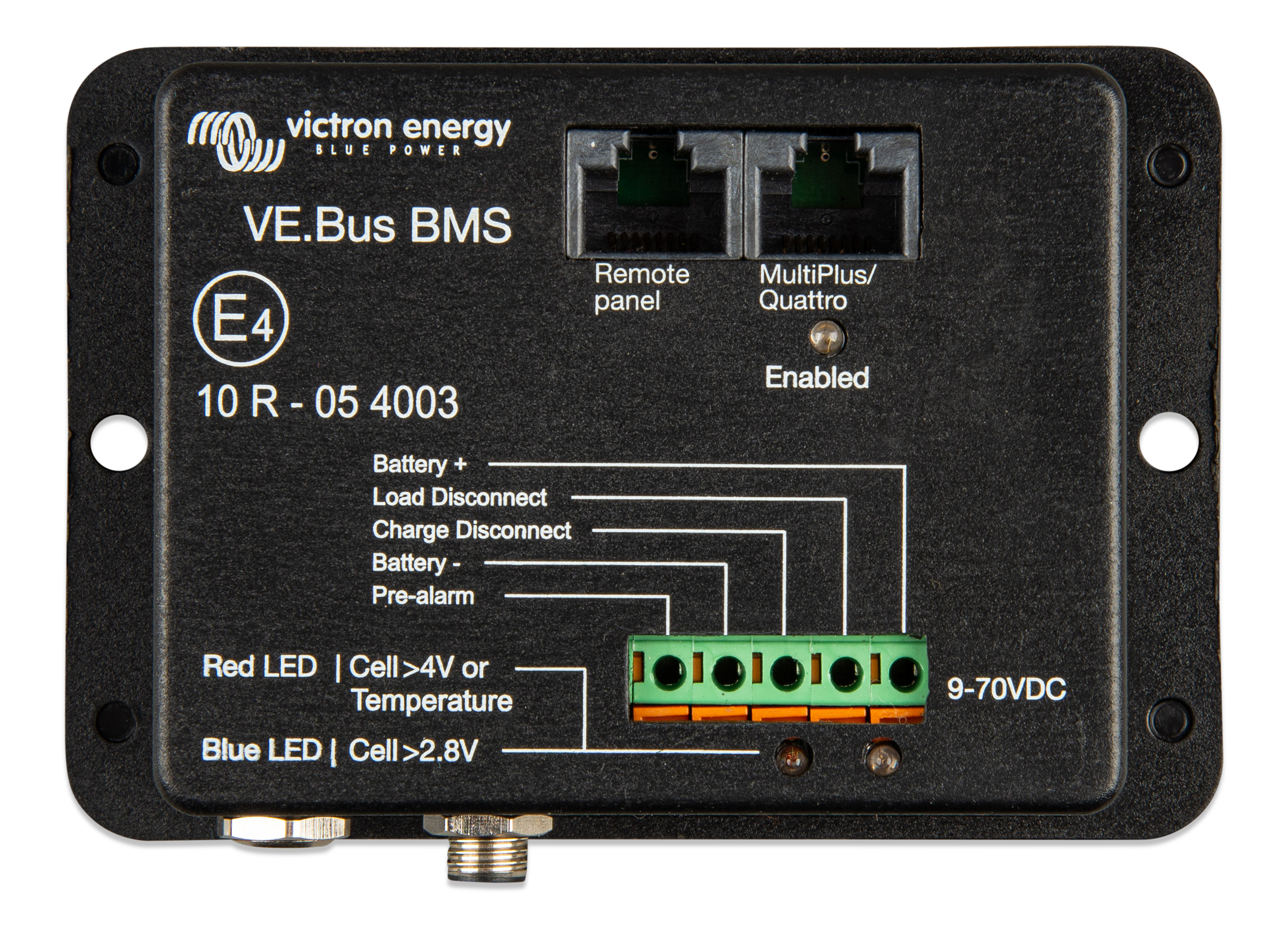

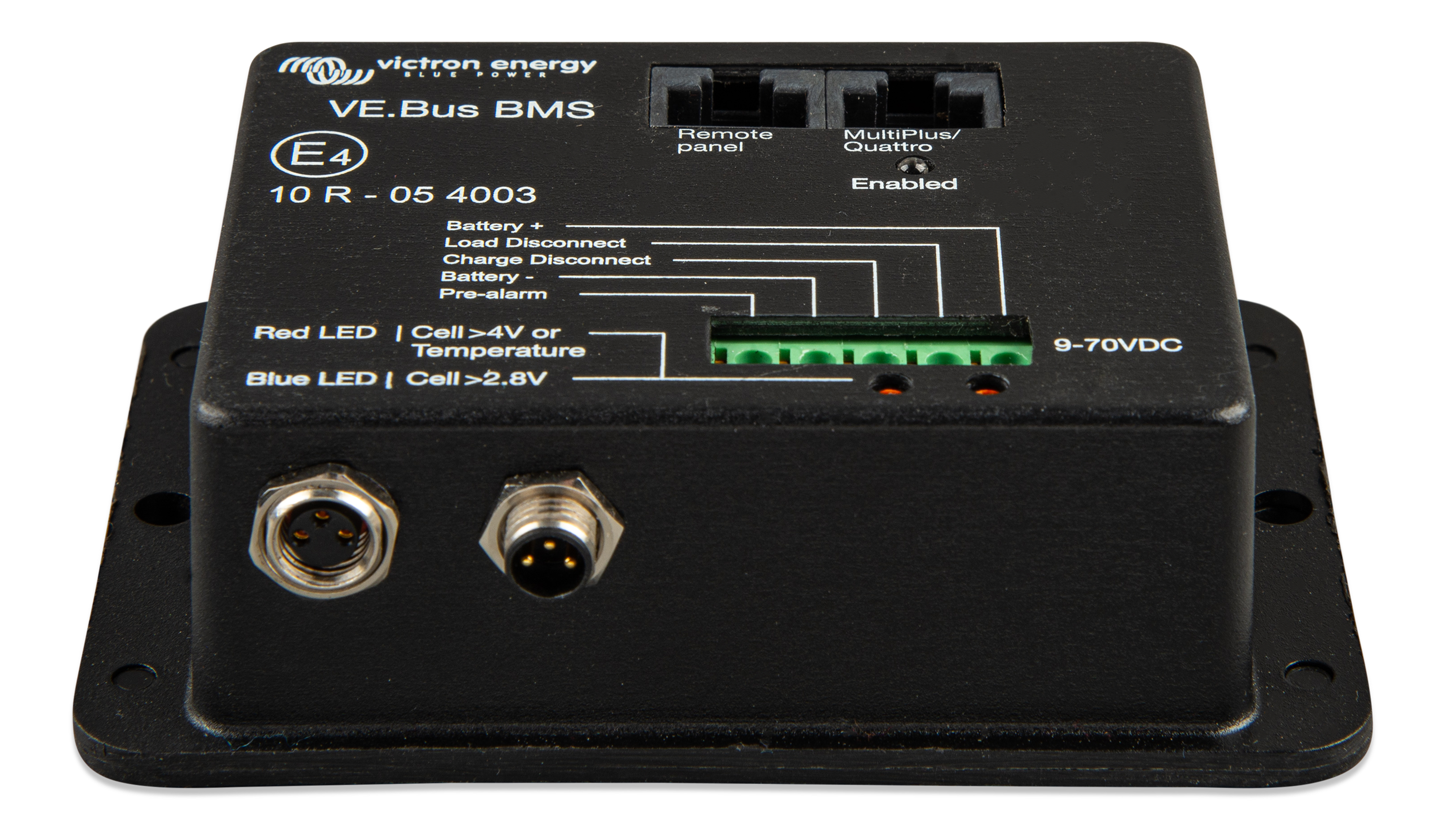

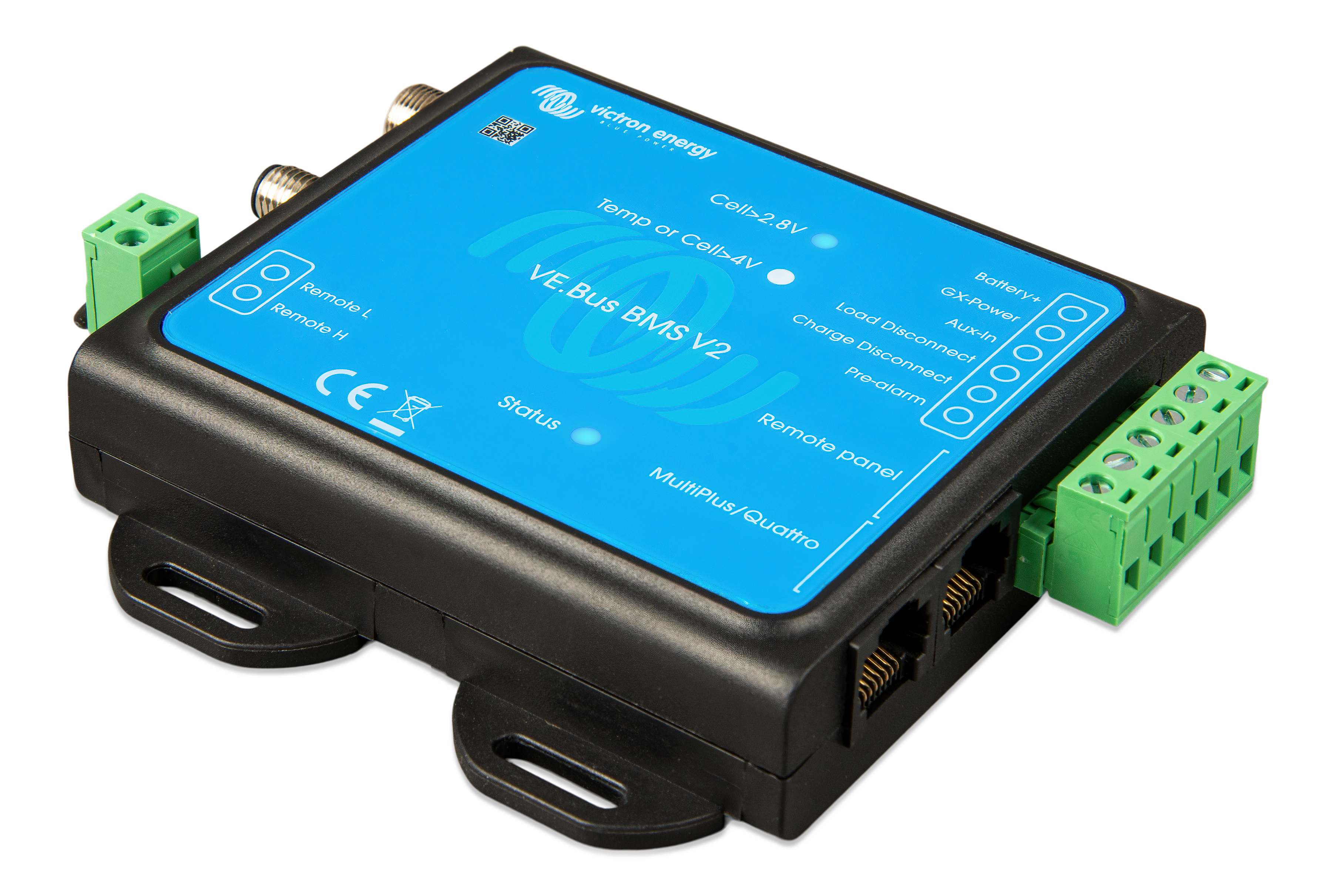

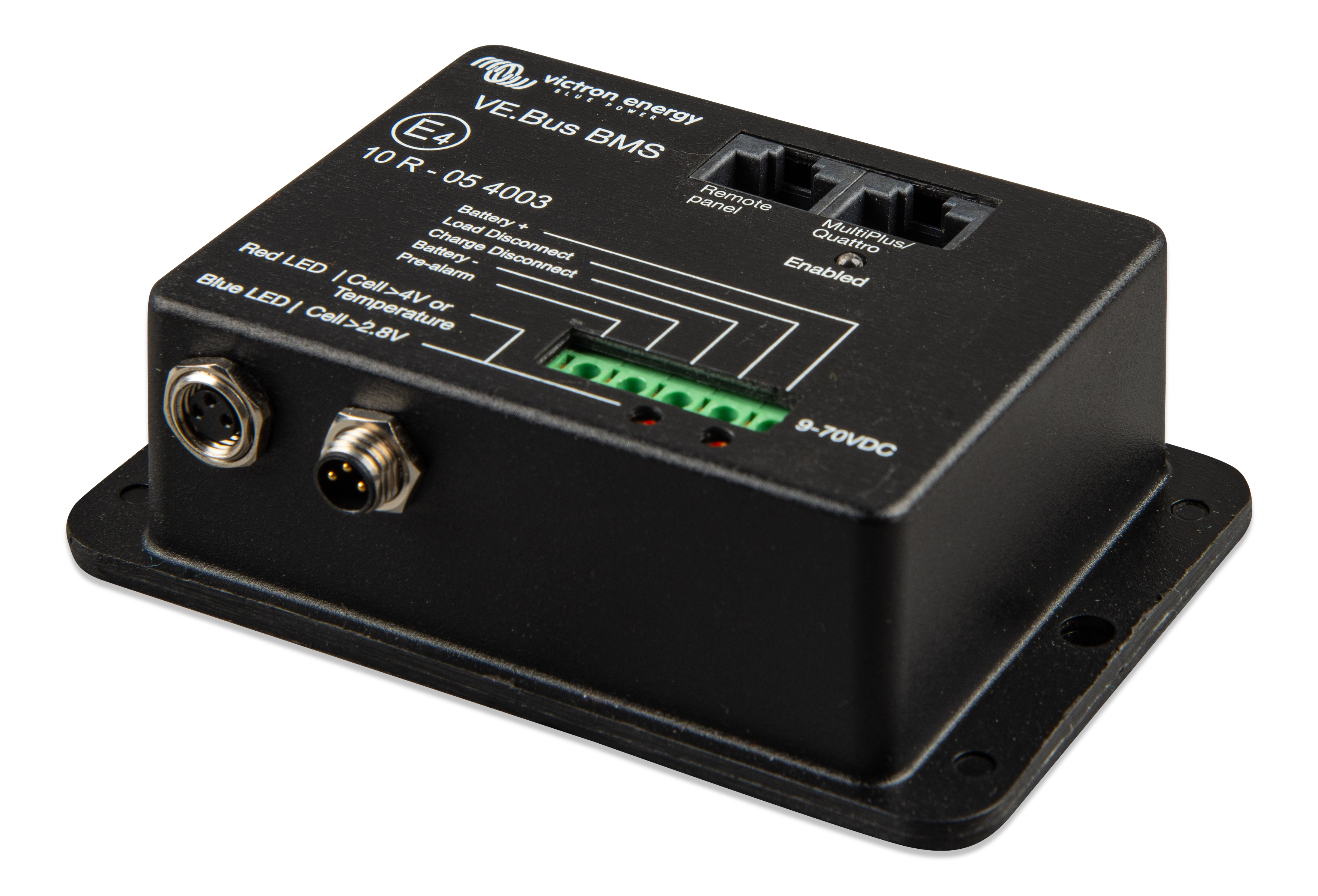

VE.Bus BMS / VE.Bus BMS V2

The VE.Bus BMS V2 is a Battery Management System (BMS) designed to interface with and protect a single, or multiple Victron Lithium Battery Smart 12,8V & 25,6V (LiFePO4 or LFP) in systems that have Victron inverters or inverter/chargers with VE.Bus communication. It monitors and protects the batteries against over voltage and under voltage of any individual cell, and also over temperature or under temperature conditions.

Based on the status of the battery or batteries, the BMS will:

  • Generate a pre-alarm signal to alert of an imminent cell under voltage condition.
  • Disable inverting in VE.Bus inverters or inverter/chargers via VE.Bus, and disable other loads via the 'Load Disconnect' terminal in the event of a cell under voltage condition.
  • Disable charging in VE.Bus inverters or inverter/chargers via VE.Bus and disable other chargers via the 'Charge Disconnect' terminal in the event of a cell overvoltage, under temperature or over temperature condition.
  • Remote on/off terminals.
  • Ability to disable VE.Direct and VE.Can solar chargers via a GX device.
  • Allowing control of the VE.Bus inverter/charger from multiple devices, like the Digital Multi Control, the VE.Bus Smart dongle and/or a GX device.
  • Auxiliary power input and output terminals that allow a GX device to remain powered in the event of a system shutdown.
Victron Specifications
DC Input Operating Voltage Range [9, 70] V
Current Draw Regular 10 mA
Current Draw Low 2 mA
Current Draw Off 1.5 mA
Aux Input Current Rating 1 A
Gx Power Current Rating 1 A
Load Disconnect Output Source 1 A
Charge Disconnect Output Source 1 mA
Pre Alarm Output Normally free floating - In case of alarm: output voltage Vbat -0.1 V
Pre Alarm Current Rating 1 A
Remote Terminals Usage modes to turn the system on or off: a) ON when the L and H terminal are interconnected (switch or relay contact) b) ON when the L terminal is pulled to battery minus (V<3.5 V) c) ON when the H terminal is high (2.9 V < VH < Vbat) d) OFF in all other conditions
Max Humidity 95 %

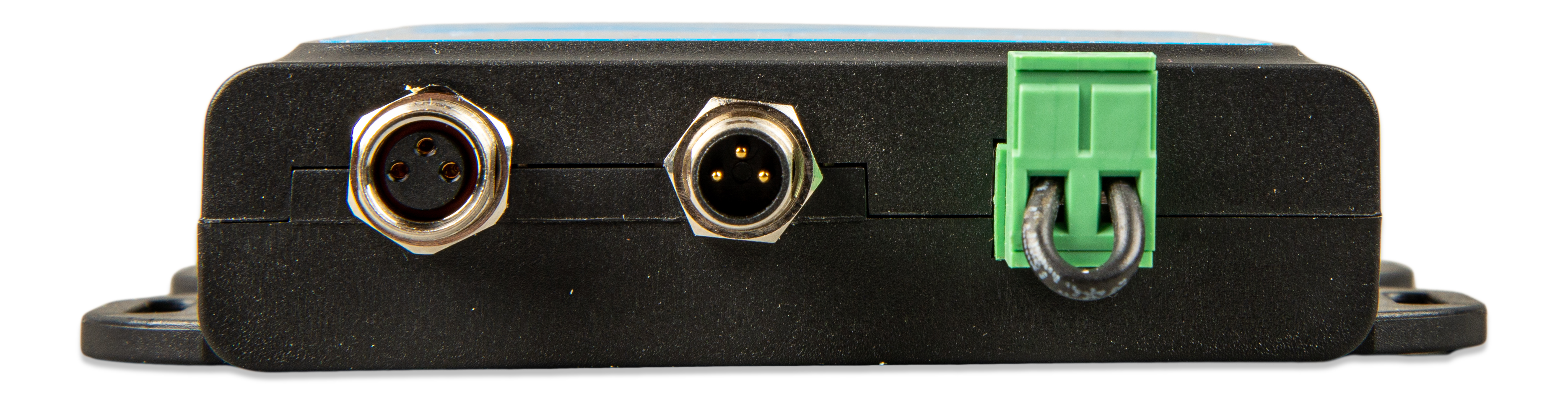

Battery Communication Terminals Terminals with M8 circular connectors
Input Output Terminals Screw terminals

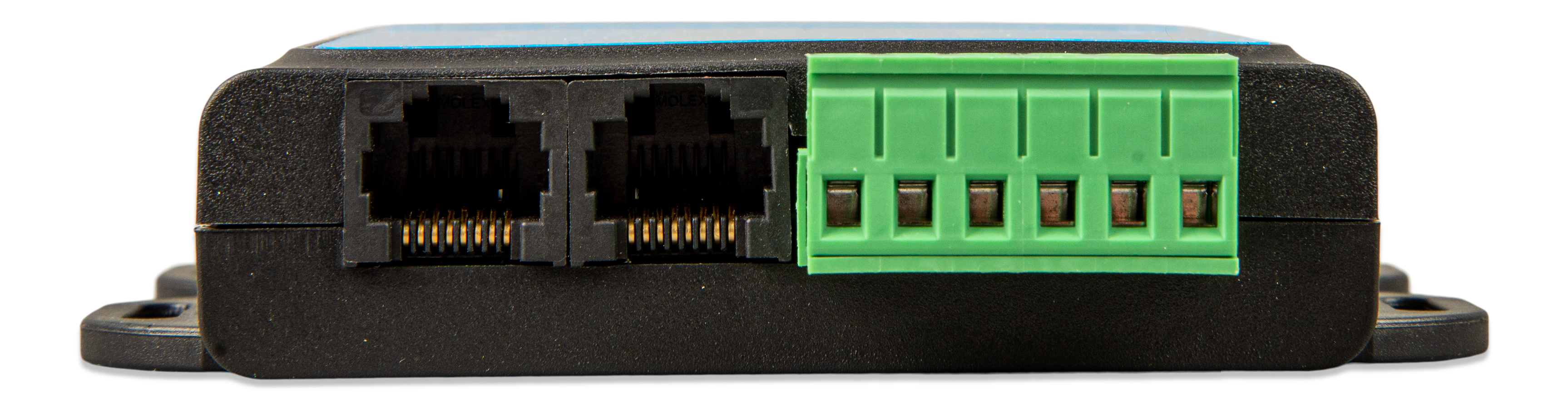

Vebus Terminals 2 x RJ45 sockets to connect to all VE.Bus products
Power Supply Cable Recommended fuse size 0.3 A - 2.5 (dependent on devices connected to Load disconnect and pre-alarm output)
Material ABS
Colour Matt black with a blue sticker
Protection Category IP20
Weight 0.12 kg
Height 23.8 mm
Width 94.5 mm
Depth 10.5 mm
Safety EN 60950
Emission EN 55014-1,EN-IEC 61000-6-3
Immunity EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive EN 50498
Battery
Watt Hours
Chemistry
Manufacturer Warranty
Standard Warranty: 5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions: Lead acid batteries 2 years
Lithium batteries 3 years
