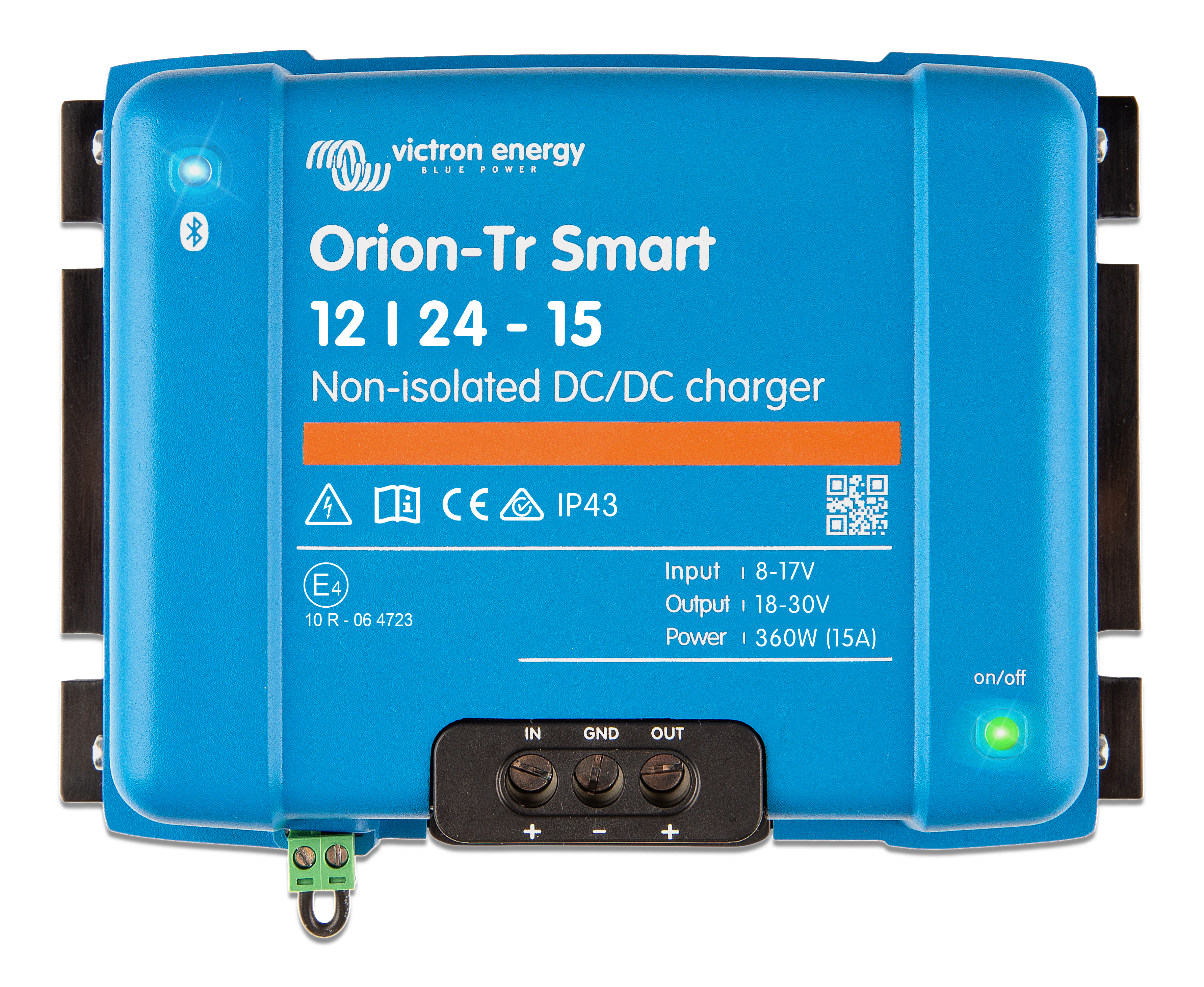

Victron Orion Smart 12V to 24V 15A (360W) DC-DC Charger, Non Isolated

Victron Orion Smart 12V to 24V 15A (360W) DC-DC Charger, Non Isolated
Price: £174.17 +vat
£209 (including VAT)
Pay Monthly Finance - Apply Now
Availability: In Stock - Delivery 1-3 days or collect from near Lewes

SKU: ORI122436140

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.


ID: 2317

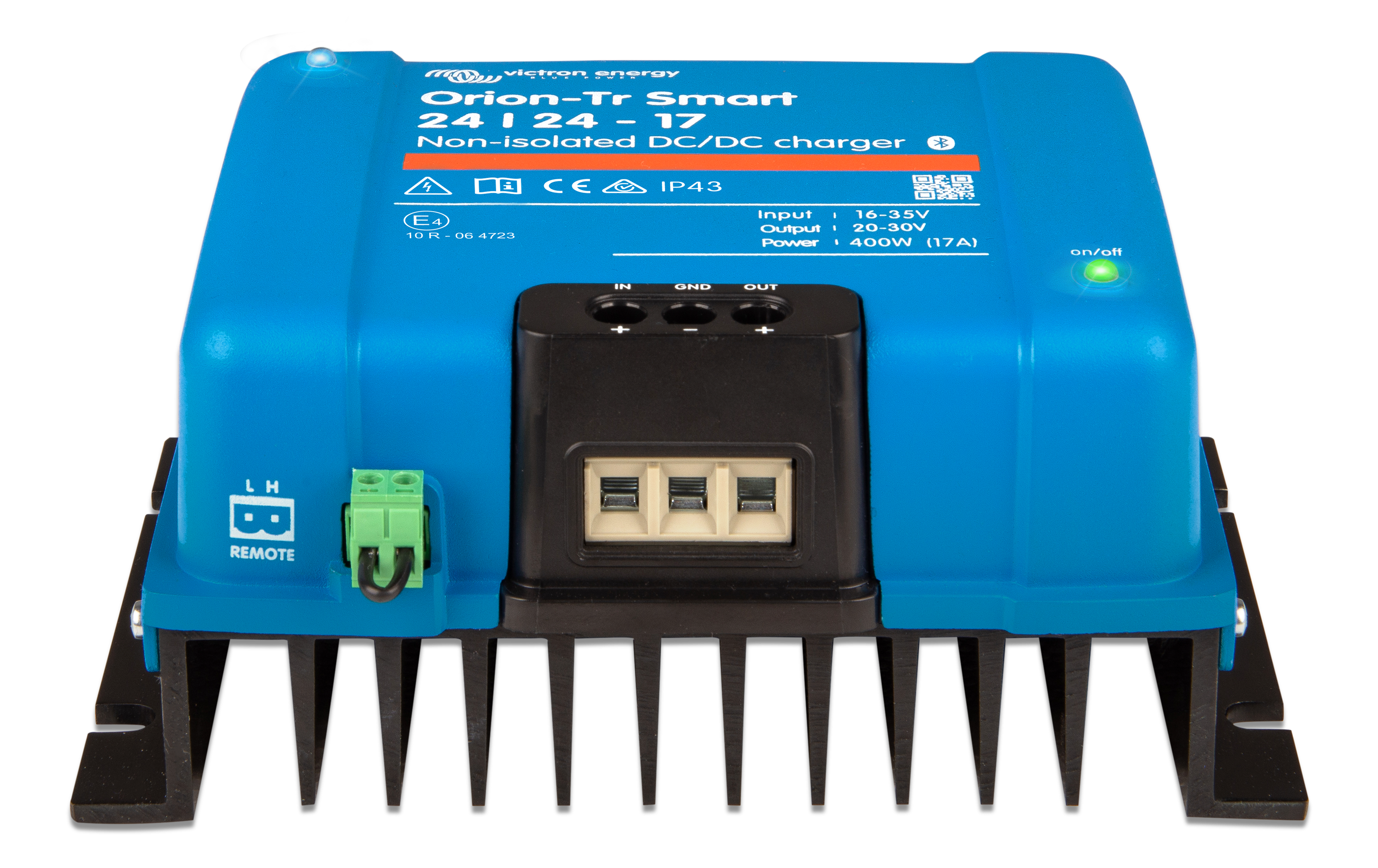

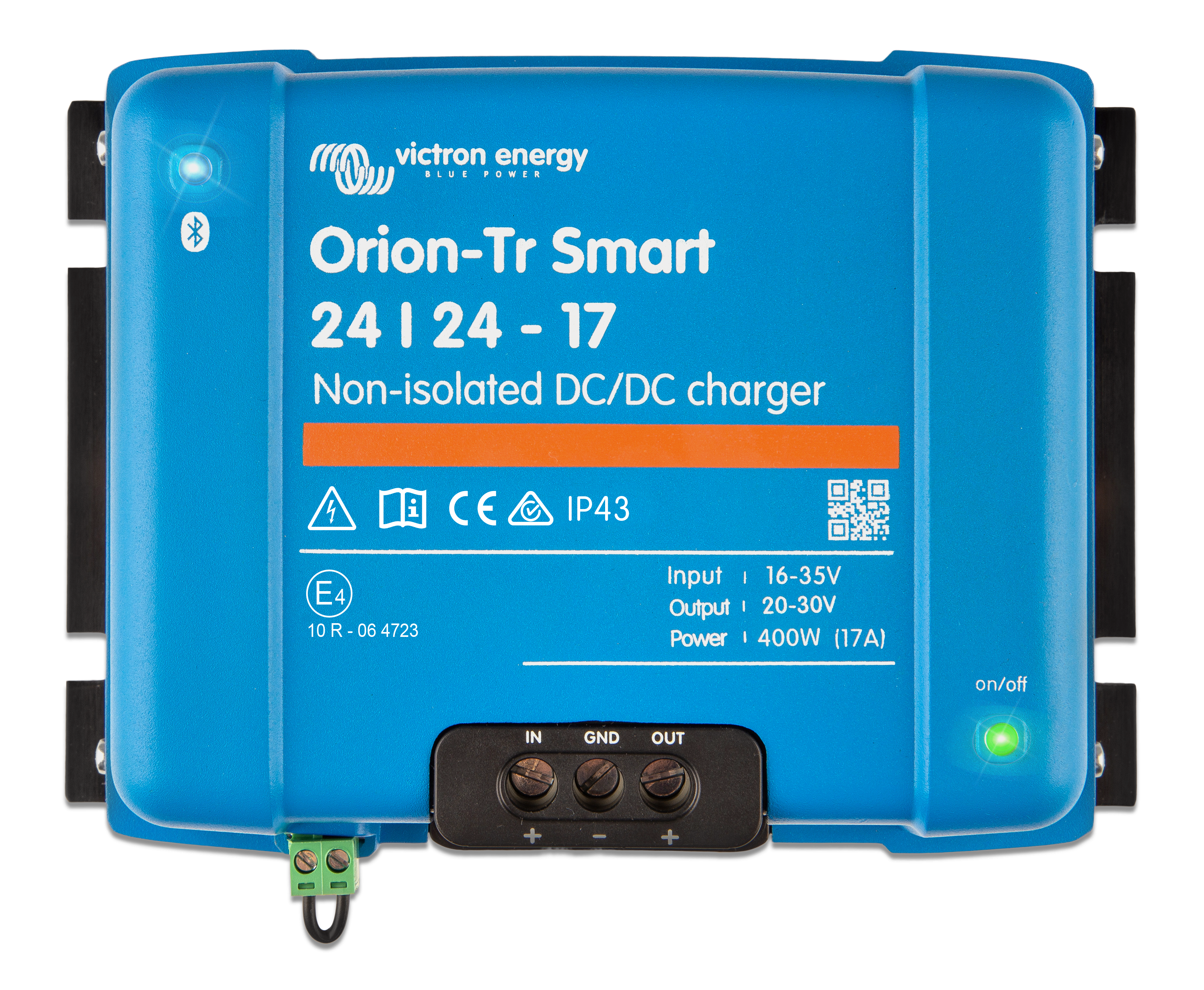

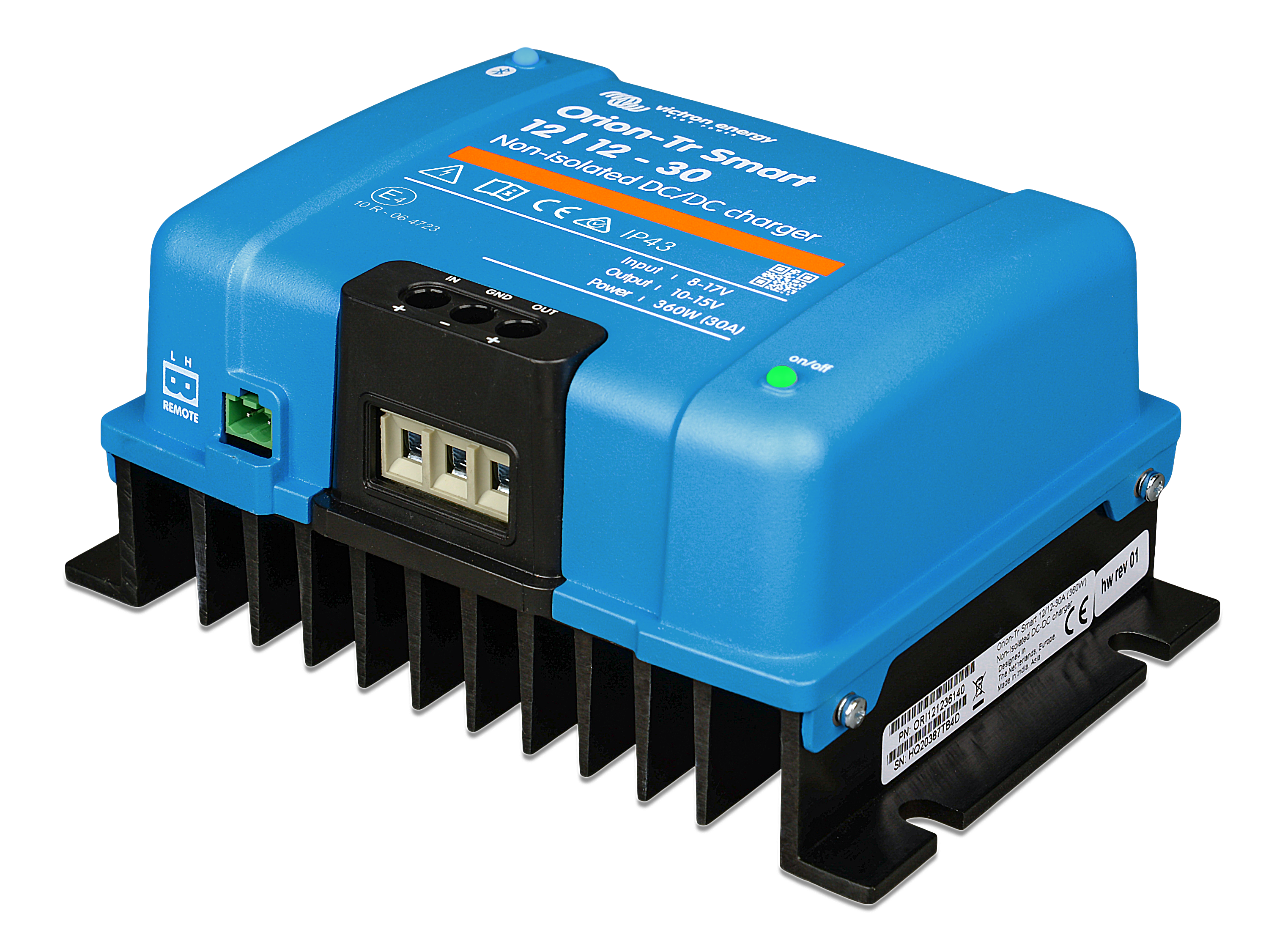

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery.  Also necessary on a vehicle application where you are charging a main lithium battery system from a lead acid starter battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

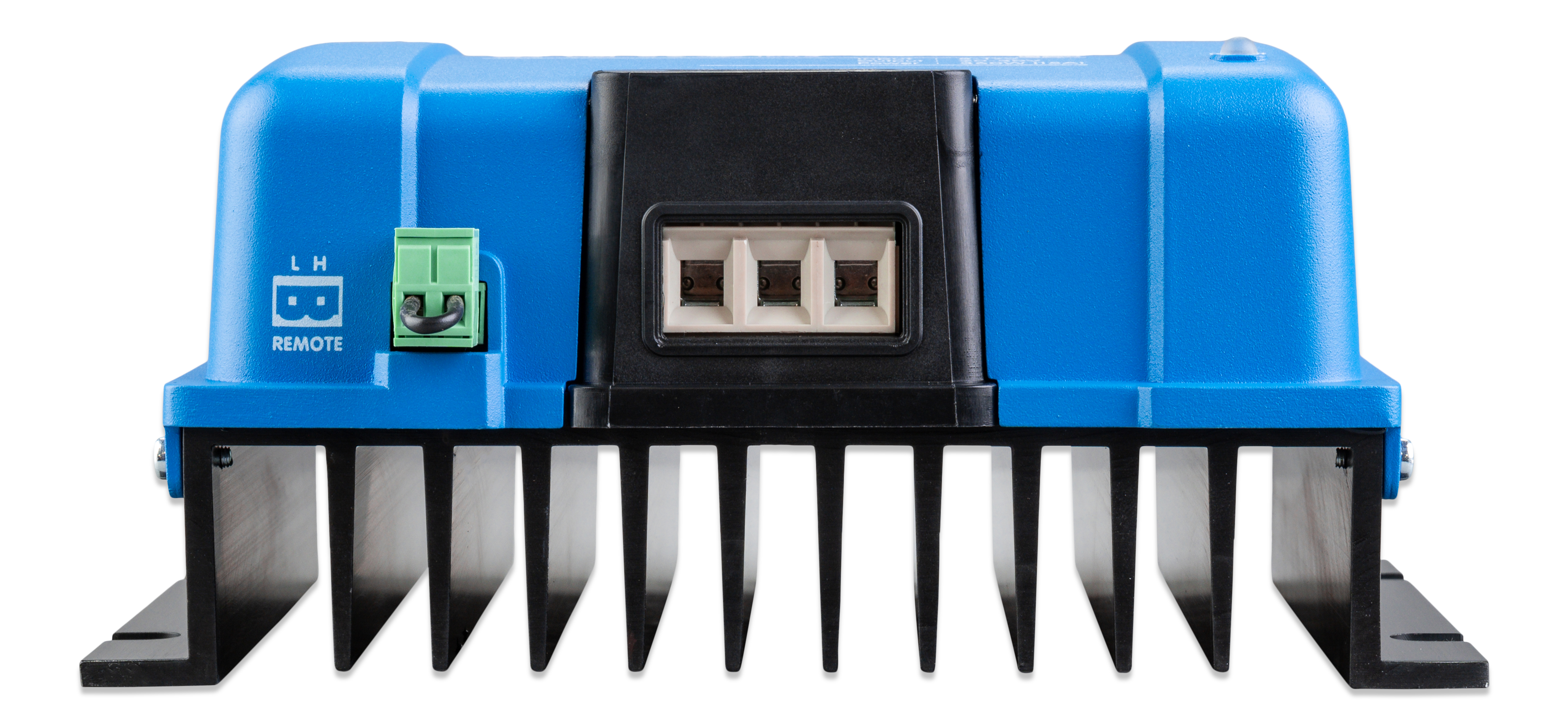

Cable Connection
Type and size 12V - 60A fuse 24V - 30A fuse
Size mm2 12V - 6mm <0.5M, 10mm <2M, 16mm <10M 24V - 4mm <0.5M, 6mm <2M, 10mm <10M
Manufacturer Warranty
Standard Warranty: 5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions: Lead acid batteries 2 years
Lithium batteries 3 years
