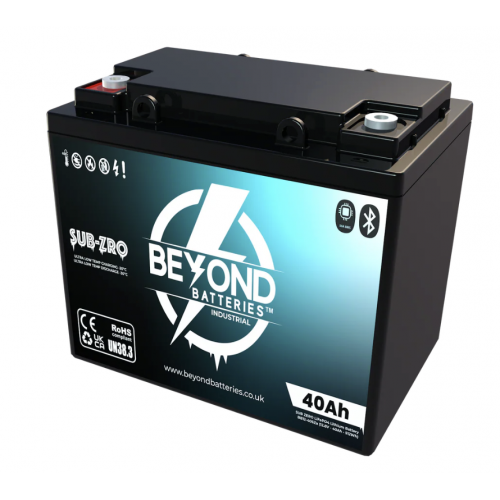

SZ40 - Uses specialised electrolyte formulas to enable ion movement in extreme cold, preventing lithium plating found in standard LiFePO4 cells. Paired with a smart BMS these batteries ensure safe, reliable operation in harsh conditions.
High Capacity - SZ40 offers 512Wh of high-capacity power, ideal for demanding applications and long use.
Grade A Cells - Beyond Batteries uses only Grade A cells for reliable, long-lasting performance.
BMS - Our high-integrity Battery Management System (BMS) ensures safe, reliable performance, with low temperature protection to keep cells safe in cold conditions.
Ultra Low Temperatures - Charge from -20℃ & discharge as low as -30℃ without the need for battery heaters.
Safety First - LiFePO4 - the proven, safe lithium option. Protected by an advanced BMS for maximum longevity.
Charge & Discharge - 50 minute fast charge, 50A continuous output, and 100A peak for high-use power start-ups.
Long Cycle Life - Provides 3000 cycles at 80% depth of discharge.
Size & Weight - Ultra compact battery, Ideally sized for security pods, detectors and lighting. Weighs just 5.1kg.

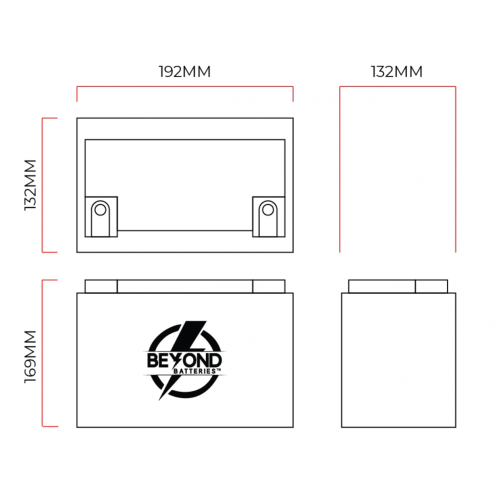

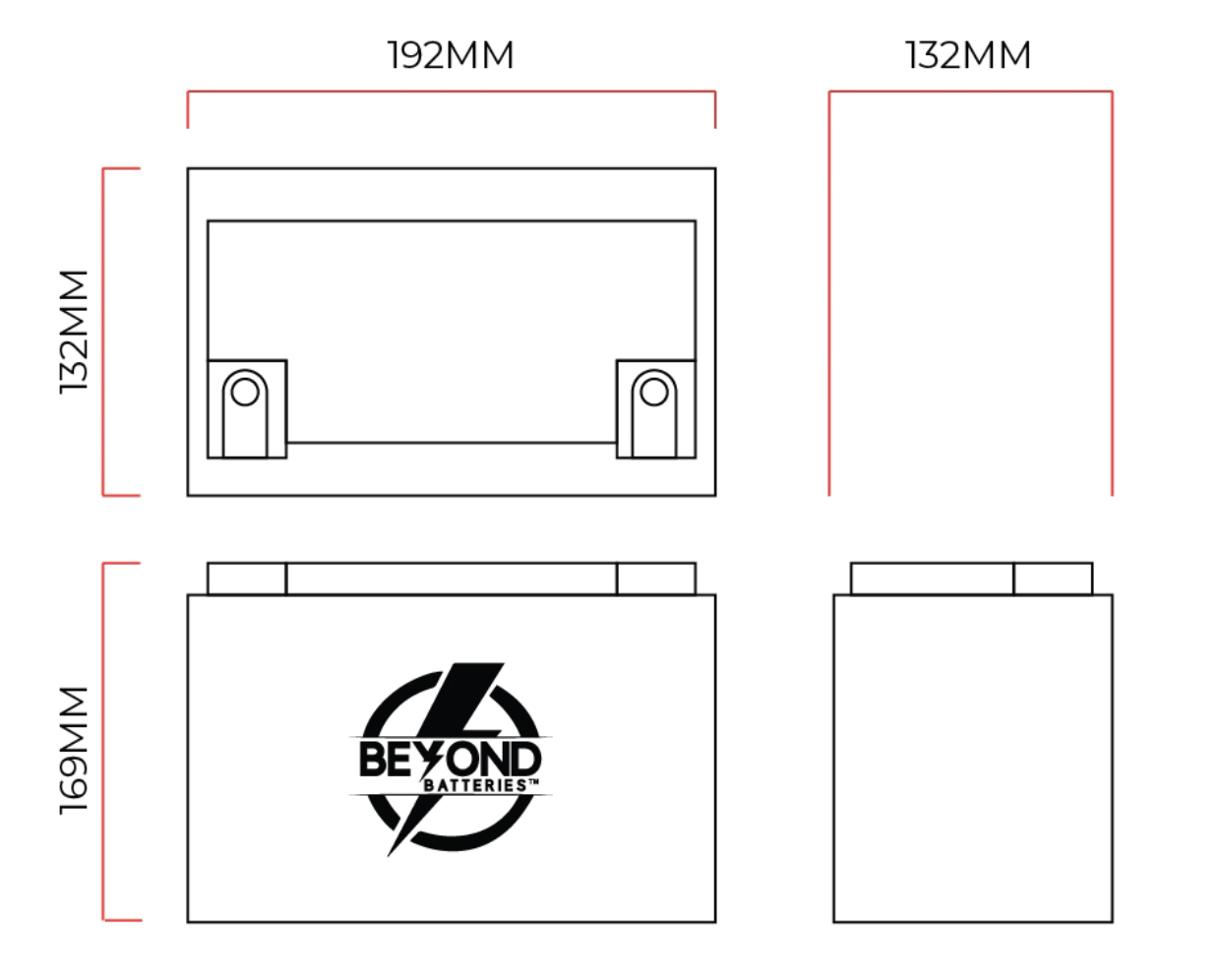

Dimensions - L:192mm W:132mm H:169mm (widest parts of casing)


| Battery | |
| Voltage | 12 |
| Length (mm) | 192 |
| Width (mm) | 132 |
| Total Height (mm) | 169 |
| Weight (KG) | 4.1 |
| Cycles | 3000 @ 80% DOD |
| Watt Hours | 512Wh total |
| Chemistry | LiFePO4 |
| Charge rate (A) | 20A / 40A |
| Discharge rate (A) | 50A / 100A |
| Cable Connection | |
| Type and size | M6 |
