Victron Phoenix Smart IP43 Battery Charger 12/50(1+1) 120V-240V - Lead Acid, Sealed, AGM, Lithium

Victron Phoenix Smart IP43 Battery Charger 12/50(1+1) 120V-240V - Lead Acid, Sealed, AGM, Lithium
Brand: Victron Energy
Price: £303.24 +vat
£363.89 (including VAT)
Pay Monthly Finance - Apply Now
Availability: In Stock - Delivery 1-3 days or collect from near Lewes

SKU: PSC125051095

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.


ID: 3797

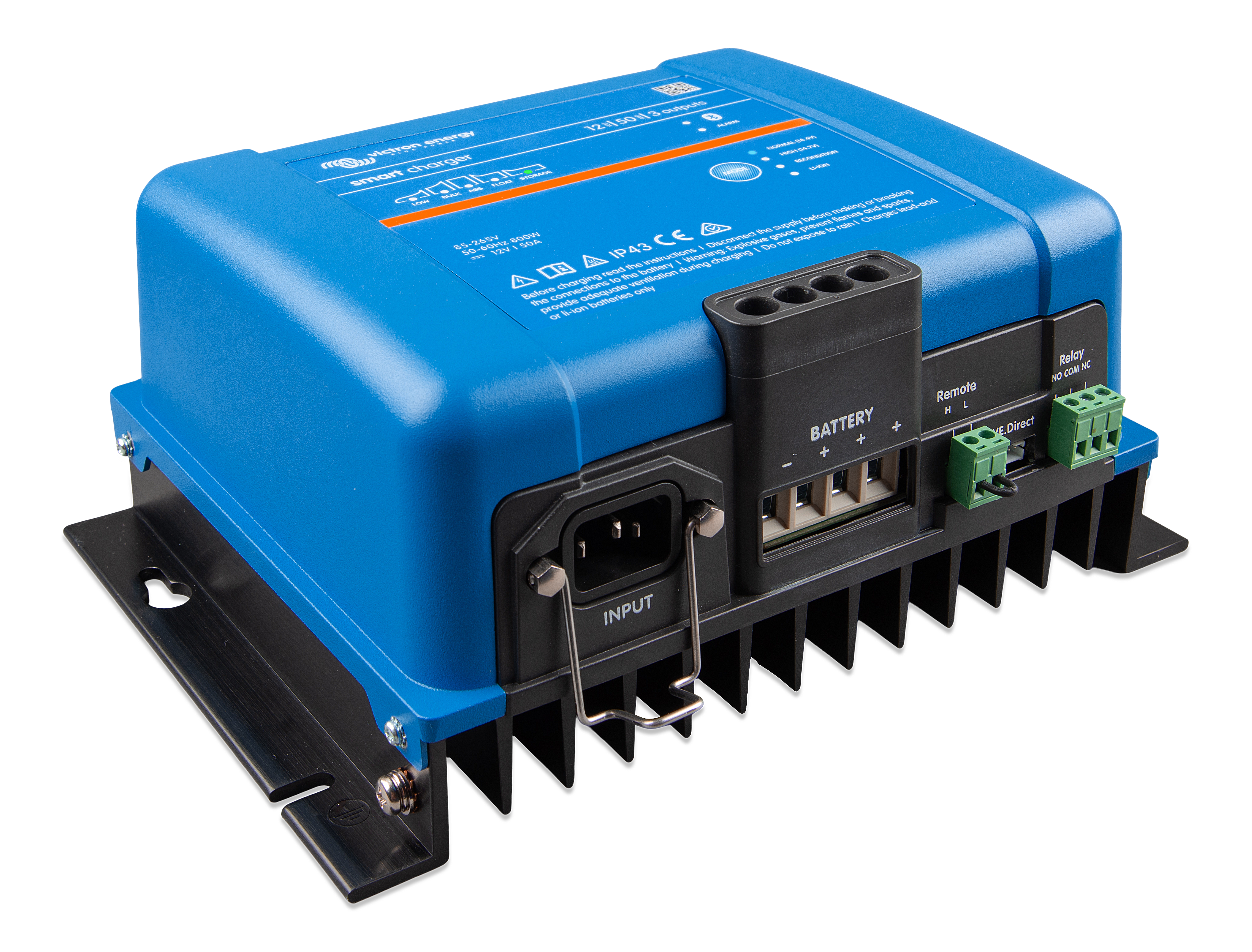

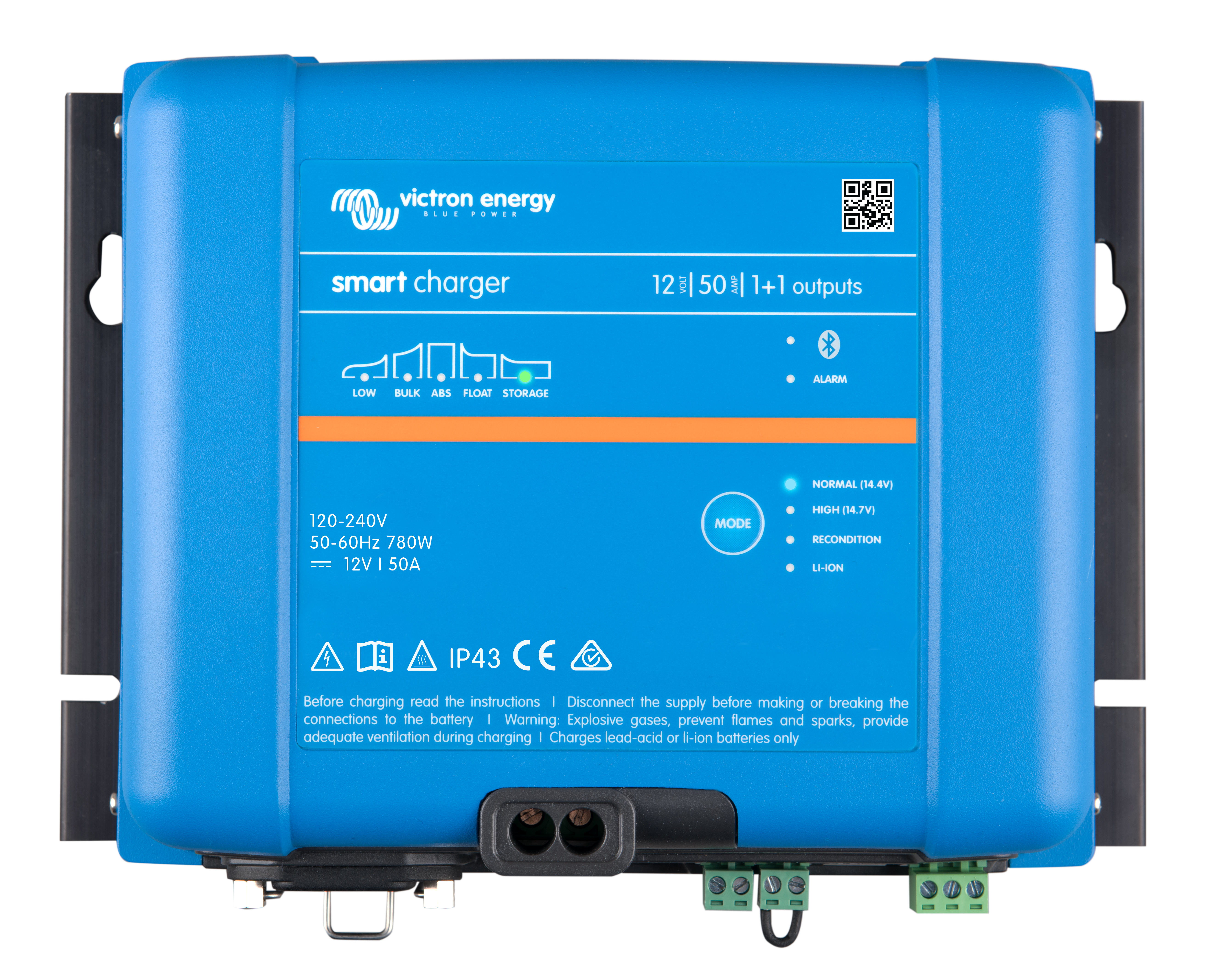

Victron Phoenix Smart IP43 Battery Charger 12/50(1+1) 120V-240V

With boat owners in mind this adaptive 5-step charger can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features – see the datasheet on the downloads tab.

You must purchase the following mains lead to power this unit as it doesn't come with one: https://www.bimblesolar.com/victron-charger-mainslead

Victron Specifications
Battery Voltage Nominal 12 V
AC Input Voltage Range [85, 250] VAC
DC Input Voltage Range [90, 375] VDC
Ac Input Frequency Range [45, 65] Hz
Power Factor 1
Back Current Drain 1 mA
No Load Power Consumption 1 W
Efficiency 94 %
Charge Voltage Absorption Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm Adaptive, 6-stage
Lithium Compatible 1
Charge Current Low 25 A
Number Full Outputs 1
Low Currentoutput 1
Temperature Sensor Optional (Smart Battery Sense)
Power Supply Mode 1
Fully Programable 1
Data Communication VE.Direct,Bluetooth
Remote On Off Terminal 1
Programmable Relay SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections Battery reverse polarity (fuse not user accessible),Output short-circuit,Over temperature
Linearly Derating 20 %
Max Humidity 95 %
Ac Connection Terminal Type Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Start Battery Terminal Type Screw terminal two pole
Remote On Off Terminal Connection Screw terminal two pole
Relay Terminal Connection1 Screw terminal 3-pole
Material Aluminium
Colour Blue (RAL 5012)
Protection Category IP22 (connection area),IP43 (electronic components)
Weight 2.7 kg
Height 180 mm
Width 249 mm
Depth 116 mm
Safety EN-IEC 60335-1,EN-IEC 60335-2-29
Emission EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3
Immunity EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration IEC68-2-6:10-150Hz/1.0G
Manufacturer Warranty
Standard Warranty: 5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions: Lead acid batteries 2 years
Lithium batteries 3 years
