PRICED TO CLEAR Victron Sun Inverter PWM Combo 24/250-10 IEC (200w)

Brand: Victron Energy

Price: £72.10 +vat
£86.52 (including VAT)

Pay Monthly Finance - Apply Now

Availability: In stock - Delivery 1-3 days or collect from near Lewes

SKU: SIN241251100

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.

ID: 2743

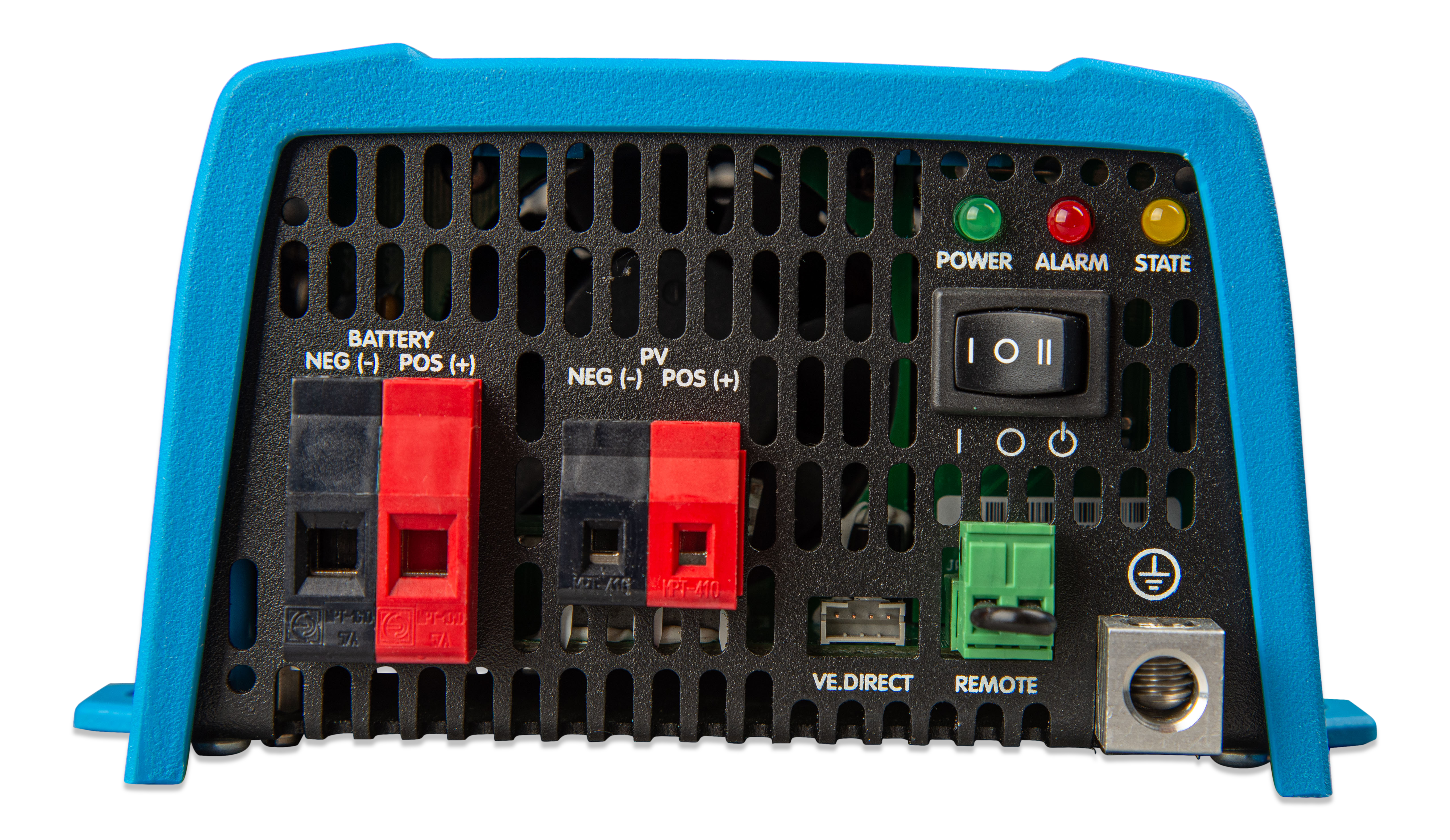

The Sun Inverter combines a sinewave inverter and a PWM solar charger in one enclosure and is easy to install, with a minimum of wiring.

The inverter allows you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V or 24V.

The solar charger ensures that the batteries are being charged by energy harvested from your solar panels. The charge algorithm is programmable.

The inverter and solar charger parameters can be read out via Bluetooth using the VictronConnect app. In addition to this, the inverter has a VE.Direct Port for connection to a GX device or GlobalLink 520 for system monitoring.

Models:12V|250VA and 24V|250VA

Victron Specifications
Battery Voltage Nominal	24 V
Cont Power W25	250 W
Cont Power W40	175 W
Peak Power Rating	400 W
AC Output Voltage	230 V
Frequency Select	50Hz or 60Hz
DC Input Voltage Range	[18.4, 34] V
DC Low Shut Down	18.6 V
DC Low Restart Alarm	21.8 V
Dynamic Low DC Shutdown	1
Battery Charged Detection Voltage	28 V
Max Efficiency	88 %
Zero Load Power	5.2 W
Zero Load Power Eco Mode	1.3 W
Solar Technology	Pulse With Modulation (PWM)
Solar Panel Type	Solar panel with 72 cells,Two solar panles with 36 cells in series
Charge Voltages	Adjustable and able to be temperature compensated
Temperature Sensor	Optional (Smart Battery Sense)
Protections	Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,Excessive DC ripple
Bluetooth	Yes
Remote On Off Terminal	1
Communication Port	Bluetooth,VE.Direct
Fully Programable	1
Max Humidity	95 %

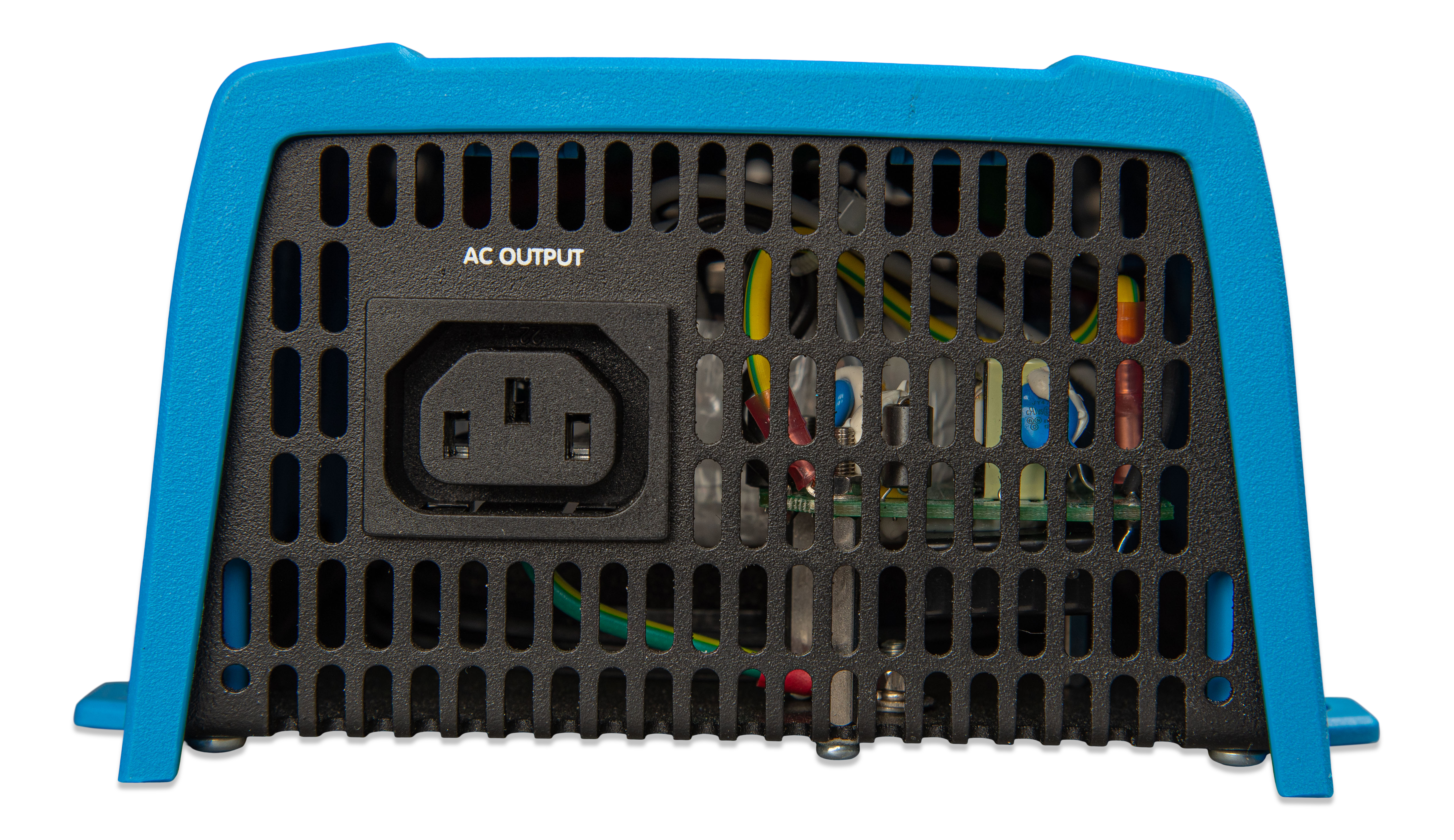

AC Outlet Socket	IEC-320 (male plug included)
Remote Terminal	Screw terminal two pole
Colour	Blue (RAL 5012)
Material	Steel chassis and plastic cover
Protection Category	IP21
Weight	2.4 kg
Height	86 mm
Width	165 mm
Depth	260 mm
Cable Connection
Type and size	63a din mount breaker or fused disconnect
Size mm2	0 - 1.5m between inverter and battery = 4mm square cable. 1.5 - 3m use 6mm square cable

Manufacturer Warranty
Standard Warranty:	5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions:	Lead acid batteries 2 years Lithium batteries 3 years
