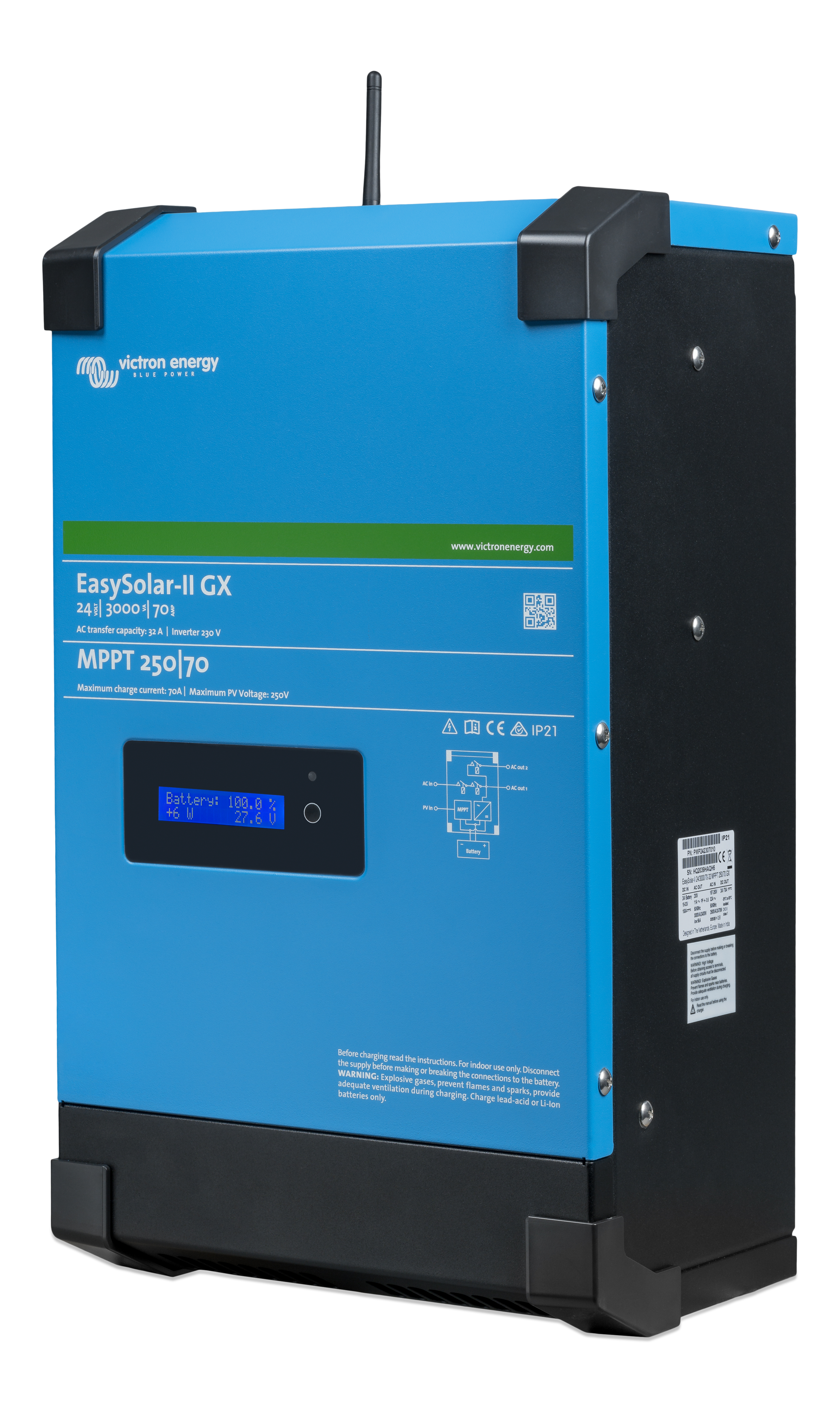

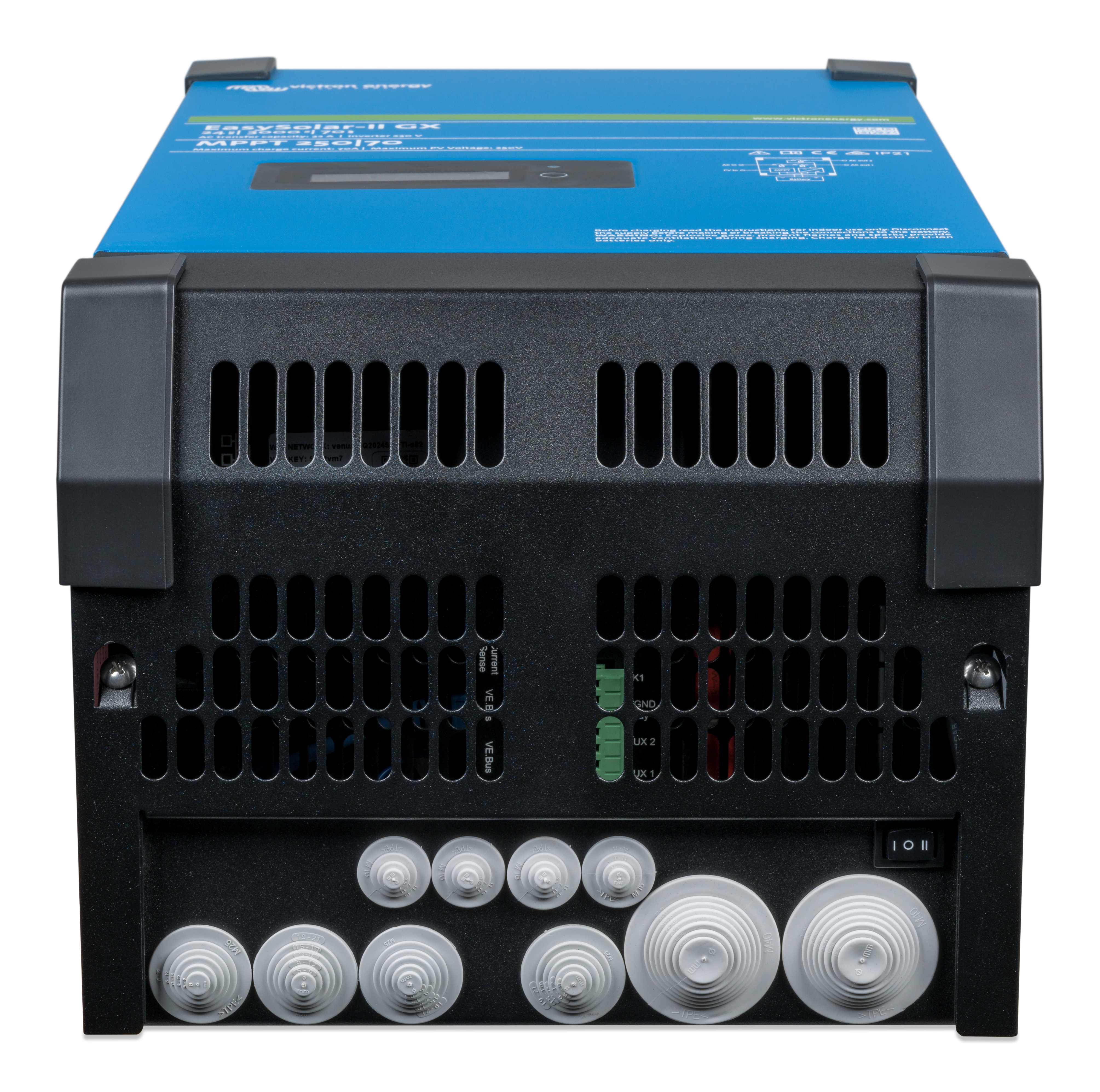

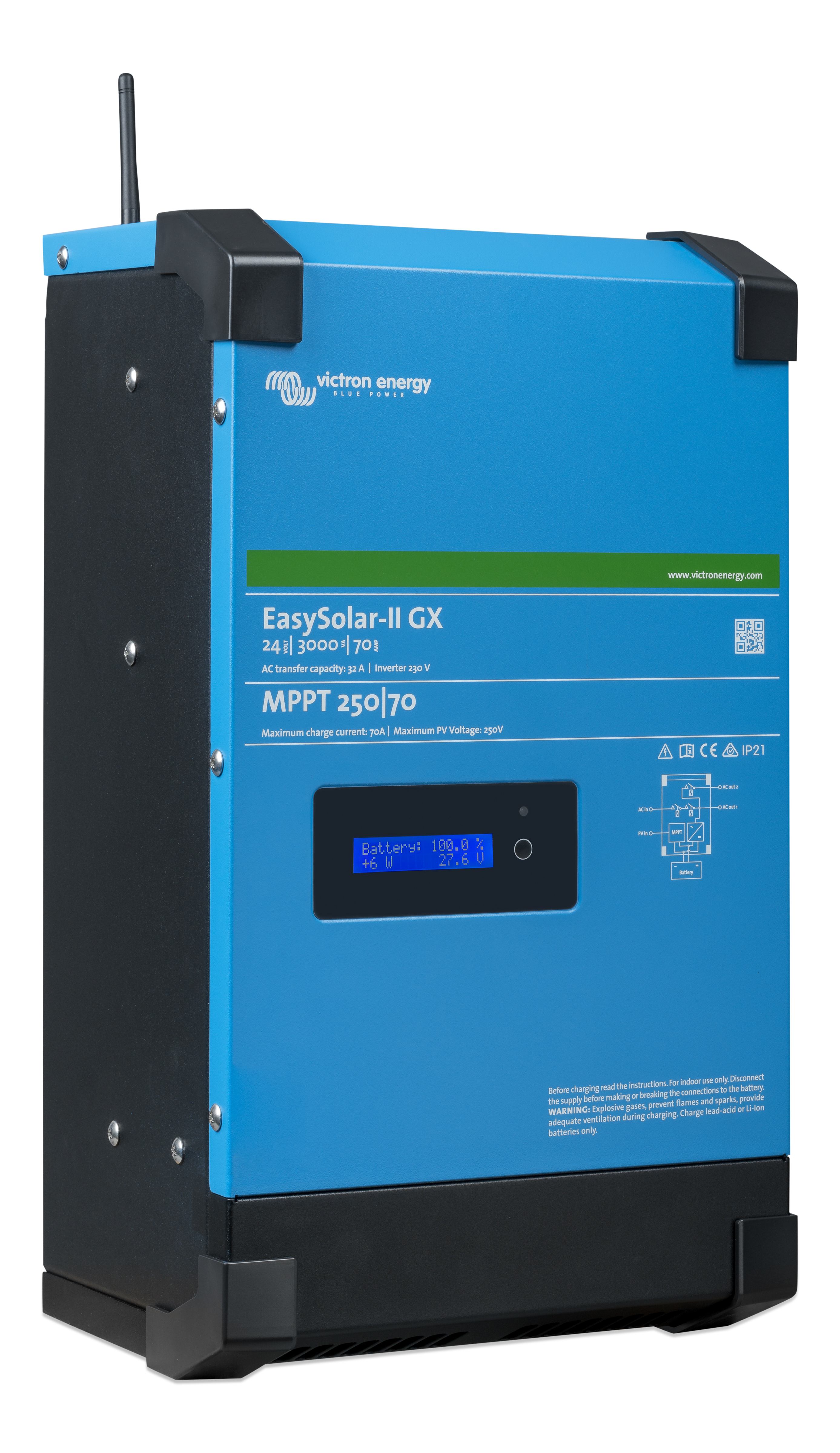

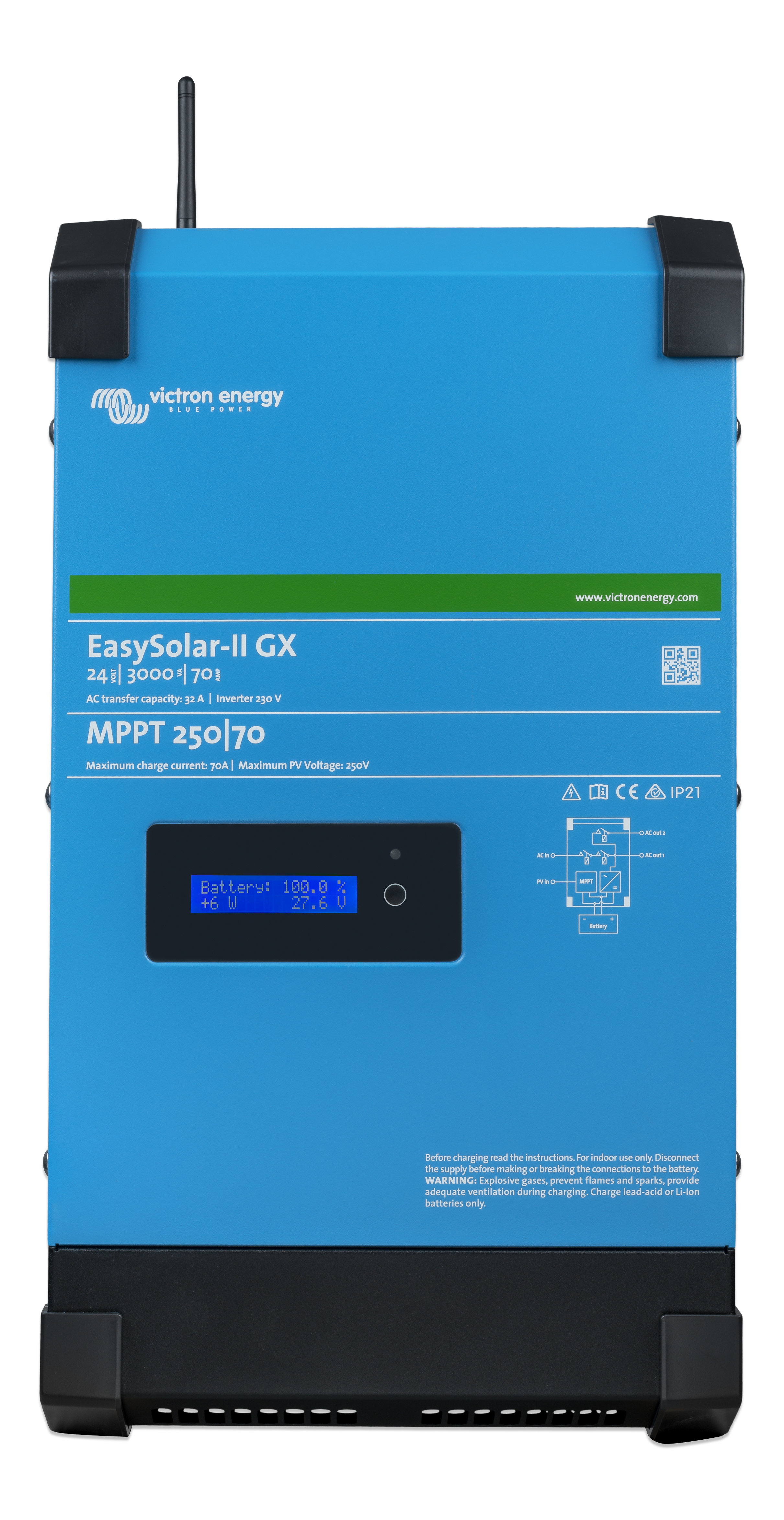

The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money. Display and Wi-Fi The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and to change settings. Solar charge controller The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT. GX device
The integrated GX device includes:
• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
The manual is available here:
https://www.victronenergy.com/media/pg/EasySolar-II_GX/en/index-en.html
The datasheet is available here:
| Charge Controller | |
| Max VOC | 250 |
| Amps | 70 |
| Voltage | 24 |
| Cable Connection | |
| Type and size | 300A fuse (250A NH1 Fuse, 250VDC For NH1 Disconnect also acceptable as is the 315a although slightly overspecced) |
| Size mm2 | 0-5m = 50mm2 5-10m = 95mm2 PV INPUT M6 BOLTS Battery connection M8 bolts |
