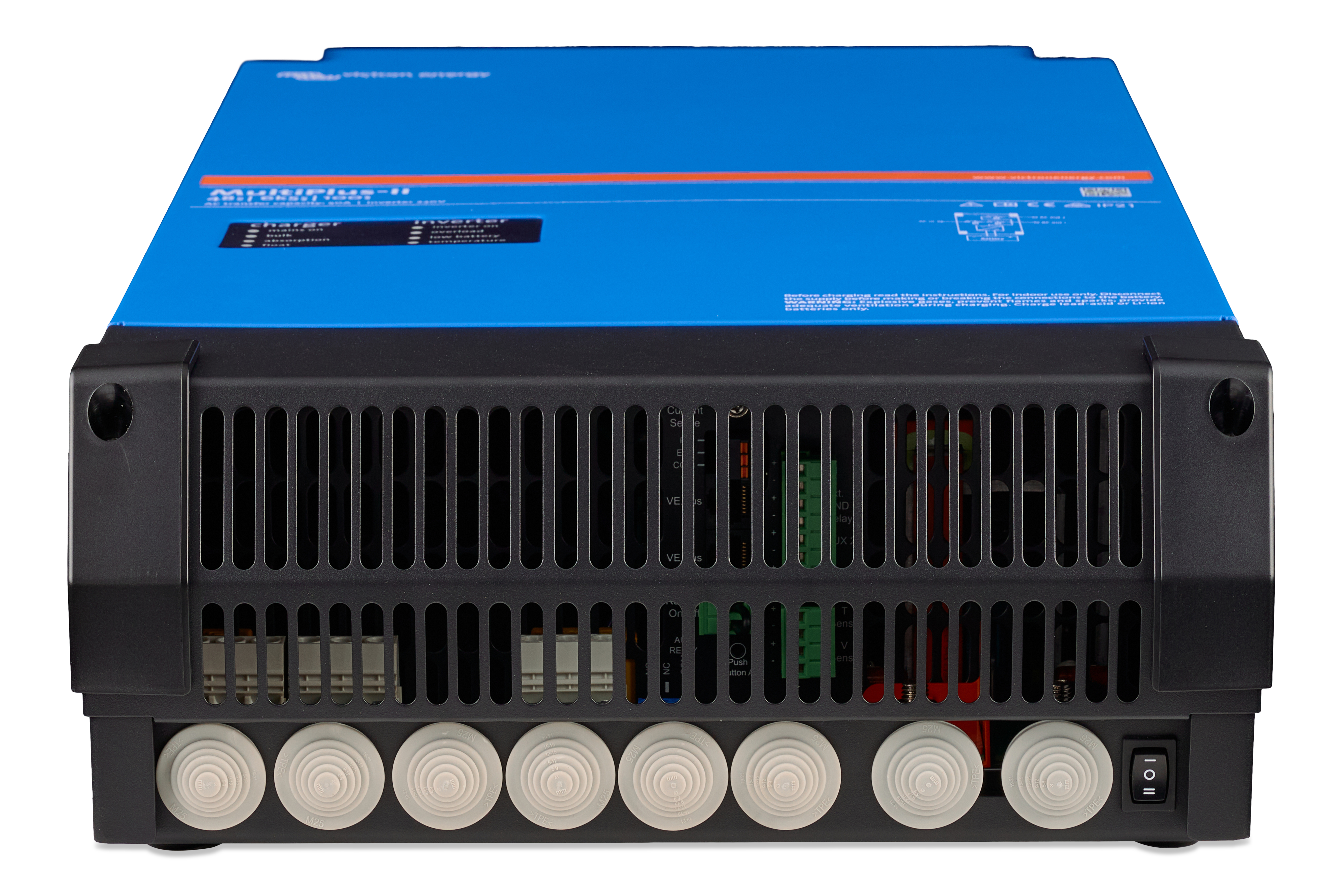

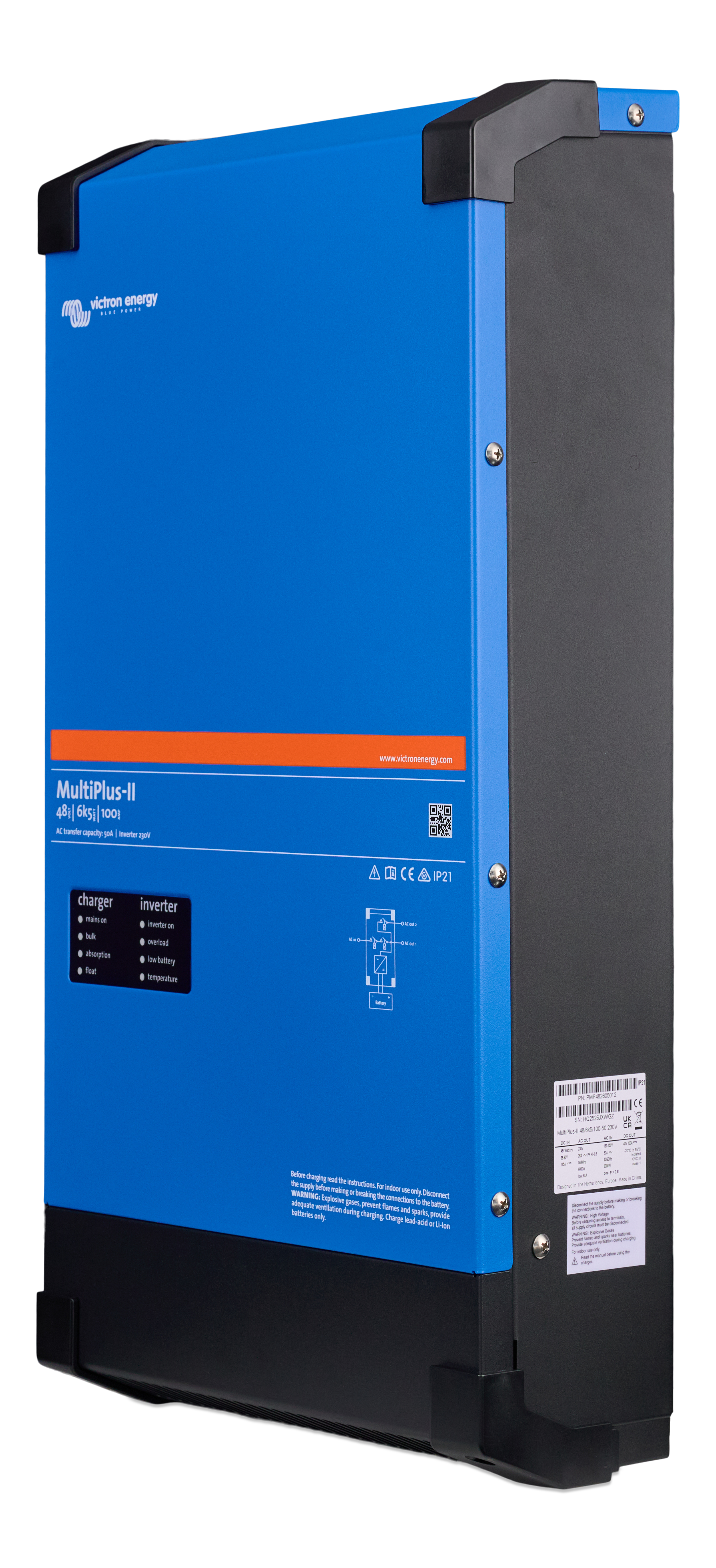

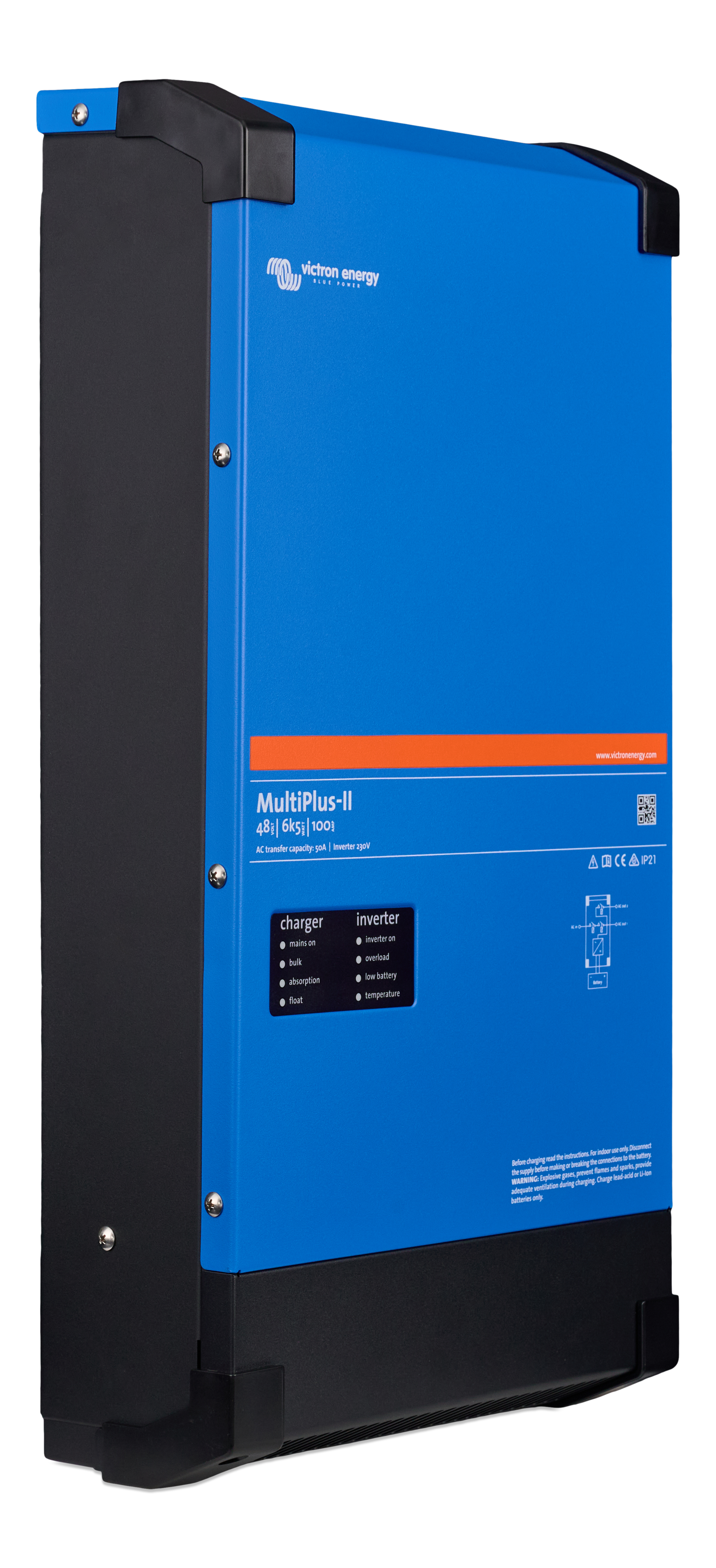

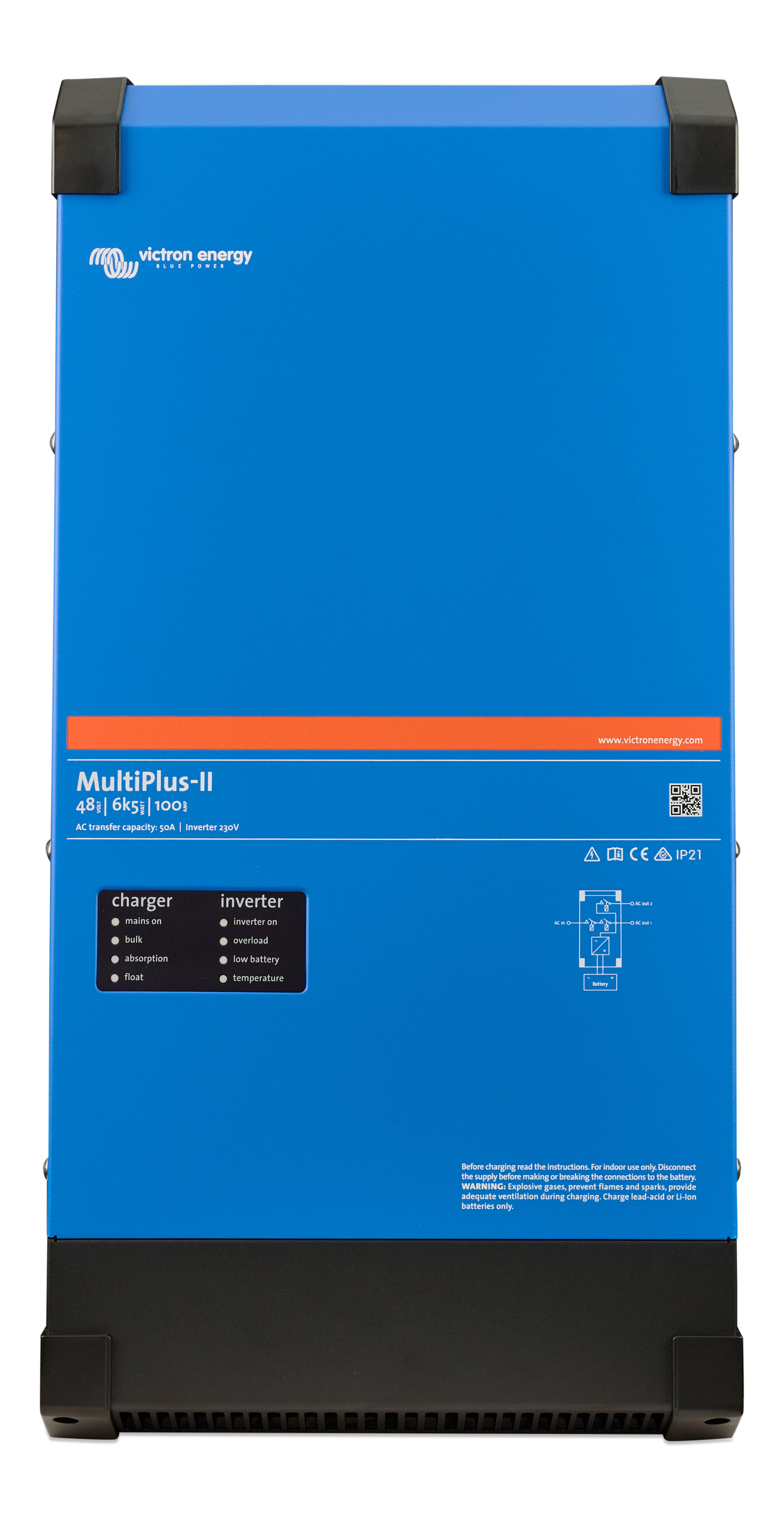

Victron MultiPlus-II 48/6k5/100-50 230V

Brand: Victron Energy

Price: £735.00 +vat
£882 (including VAT)

Pay Monthly Finance - Apply Now

Availability: In Stock - Delivery 1-3 days or collect from near Lewes

SKU: PMP482605012

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.

ID: 4034

Victron Specifications
Battery Voltage Nominal	48 V
Power Control	1
Power Assist	1
Parallel Operation	1
Three Phase Operation	1
Number Ac Inputs	1
AC Input Voltage Range1	[187, 265] VAC
Transfer Switch Current Rating	50 A
Max Ac Input Current	50 A
DC Input Voltage Range	[36, 60] VDC
AC Output Voltage	230 VAC
AC Output Frequency	50 Hz
Short Name	6k5
Cont Power W25	6,000 W
Cont Power W40	5,700 W
Cont Power W65	4,600 W
Peak Power Rating	11,000 W
Max App Feedin Power	6,000 W
Max Efficiency	96 %
Zero Load Power	28 W
Zero Load Power AES	18 W
Zero Load Power Search	8 W
AC Input Voltage Range	[187, 265] VAC
AC Input Frequency Range	[45, 65] Hz
Charge Voltage Absorption	57.6 VDC
Charge Voltage Float	55.2 VDC
Charge Voltage Storage	52.8 VDC
Maximum Battery Charge Current	100 A
Temperature Sensor	Included
Number Ac Outputs	2
Auxiliary Output	1
External Ac Current Sensor	50A or 100A (optional)
Programmable Relay	AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections	Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Communication Port	VE.Bus
Communication Port General	1
Remote Terminal	On / Off
Computer Programming	1
Fan Assist Cooling	1
Max Humidity	95 %
Max Altitude	2,000 m
Battery Connection Terminal Type	M8 bolts
Material	Steel
Colour	Blue (RAL 5012)
Protection Category	IP21
Weight	29 kg
Height	644 mm
Width	320 mm
Depth	150 mm
Safety	EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2
Emission Immunity	EN 55014-1,EN 55014-2,EN-IEC 61000-6-1,EN-IEC 61000-3-2,EN-IEC 61000-3-3, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Anti Islanding Standard	Please consult the certificates on our website
Ups Standard	Please consult the certificates on our website
Solar Panel
Watts	6500
Charge Controller
Voltage	48
Battery
Terminal Type	stud_m8

Manufacturer Warranty
Standard Warranty:	5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions:	Lead acid batteries 2 years Lithium batteries 3 years
