Pylon US5000-1C 4.8kWh Li-Ion Solar Battery 48V (Latest Model, excl. brackets)

A new battery in the US series from Pylontech. The US5000 is a 48V battery with incredible features to provide a competitive edge in the market.

Please use a dimension of 4U per module when sizing a cabinet for these batteries.

Product Features

• Modular design for ease of expansion
• Higher usable capacity resulting in less battery modules installed
• Usable capacity 4 560Wh
• Parallel Capability of up to 16 units
• Allows for large installation of up to 72.96kWh with no LV Hub
• Intelligent BMS protecting battery cells
• 95% DoD with more usable capacity
• RS485 and CAN compatible
• Comes with a 5-year warranty extendable
• Long cycle life and superior performance
• Compatible with tier 1 inverter brands


If you want to use these batteries with Victron equipment please read this article to select the correct equipment:

https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom


Here is the link to register your batteries and receive extended warranty:

https://en.pylontech.com.cn/service/registration

Note - there is no integrated breaker in this battery.

WHITE BACKSHEET, BLACK FRAME

Learn more about TCL-Solar - Click above

S Class: N-type Shingled

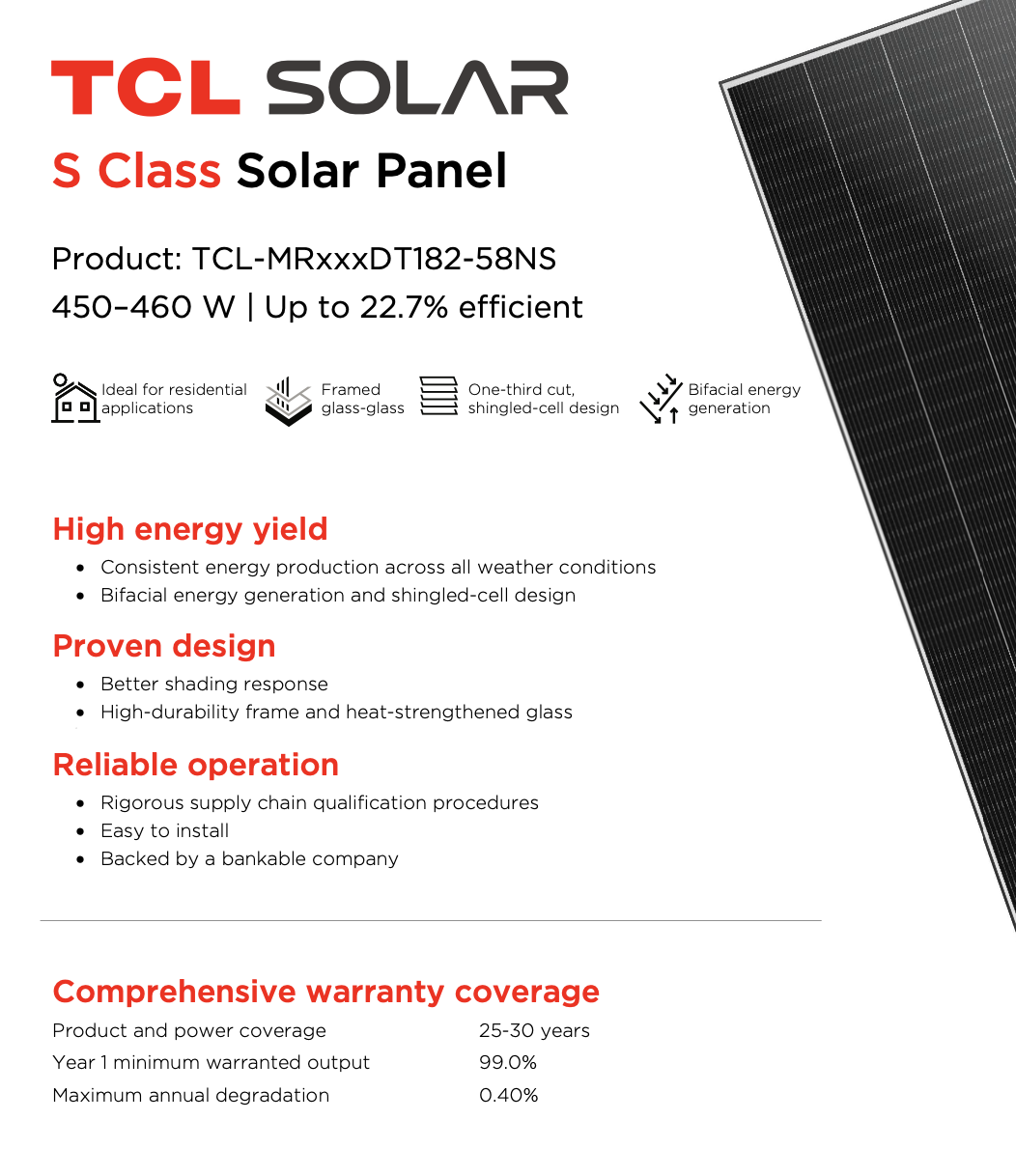

TCL Solar's S Class range of solar panels incorporates shingled cell technology, which improves overall module performance by reducing grid-line failures and minimizing the risk of cell breakage.

This innovative design also reduces energy loss in partial shading conditions, optimizing production even in challenging environments. S Class modules are designed to offer high efficiency, increased durability, and long-term reliability, adapting to a wide variety of residential and commercial applications.

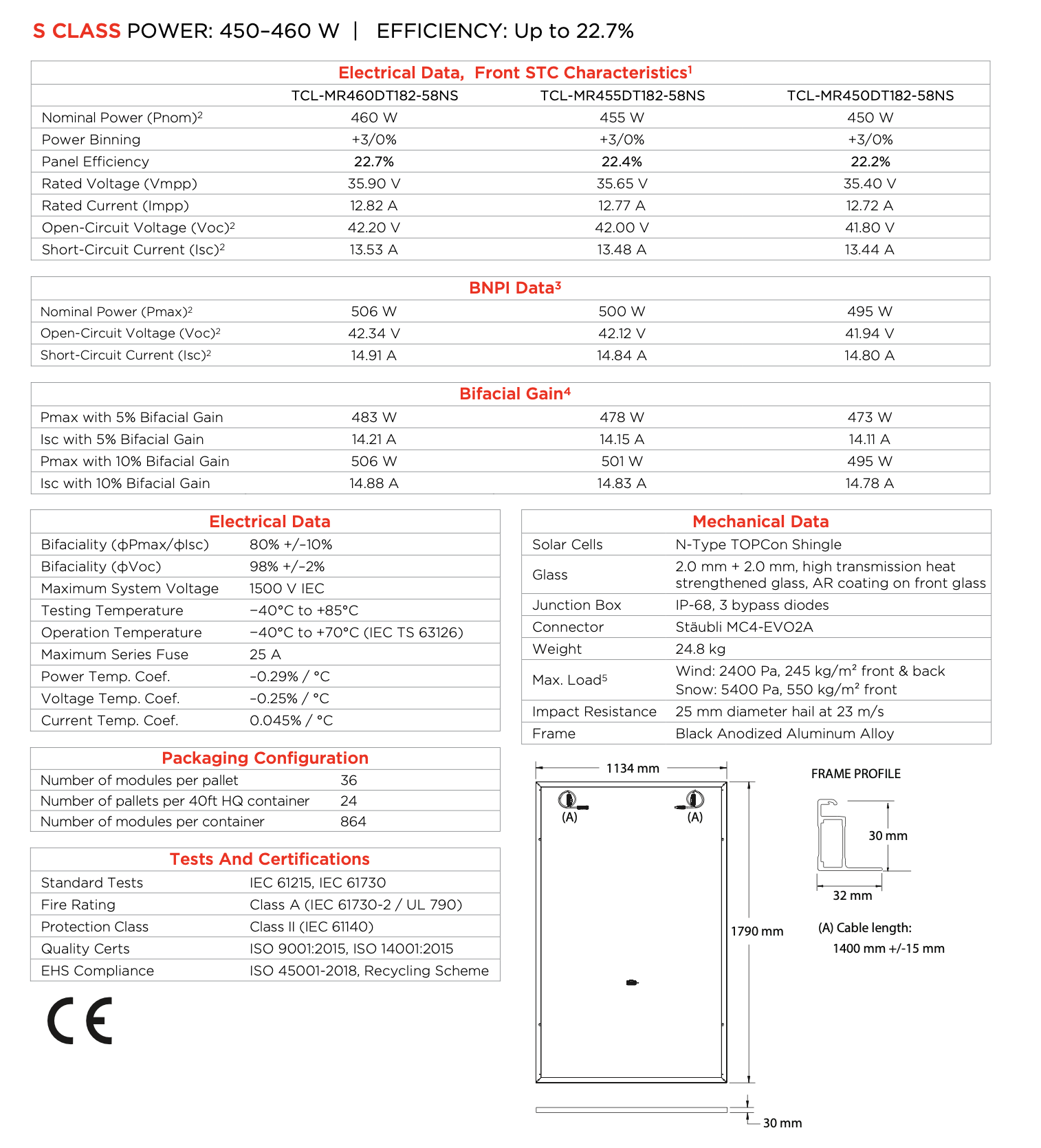

TCL-MR460DT182-58NS

Learn more about S-Class TCL-Solar Modules - Click below

About TCL SunPower Global

Backed by the global strength, financial stability, and technological leadership of the TCL Group, TCL SunPower Global is a leading player in the solar energy space. committed to delivering high-performance, reliable, and accessible solar solutions worldwide. We integrate advanced technology, vertical manufacturing, and a strong focus on sustainability to support the transition to clean energy. Positioned at the forefront of innovation, we pioneer next-generation solar technologies that empower individuals, organizations, and entire regions to shape a cleaner energy future. TCL SunPower Global brings to market two dedicated product brands: TCL Solar, focused on high-efficiency solar panels, and SunPower, offering integrated energy solutions. Together, they address the diverse needs of the global solar market, from residential rooftops to commercial installations and large-scale utility projects. Find more at sunpowerglobal.com, tclsolar.com, and on LinkedIn.

*NEW* With the G98 grid code set, the 5kVA models becomes a fully compliant 3.68kW inverter with output/export limited. (G98 3.68kW limit in firmware 510)

Victrons new 48V inverter/charger

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).  It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto starting a back generator and more...

Download Spec Sheet

Smart Solar MPPT RS max VOC 450V, 200A, 4 X independant MPPT inputs, 48 Volt battery.

This version has MC4 connnections for Solar PV input.

***Please note: these charge controllers will have a maximum charge voltage of 60V, and as such are not suitable for use with certain types of lead acid battery that require periodic equalisation at voltages above 60V***

The SmartSolar MPPT RS solar charge controllers are Victrons solution for systems with large series connected PV arrays charging 48V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.

Available in a 11.52kW(this listing) and 5.76kW models, features include a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.

Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller The MPPT RS SmartSolar is a 48V Solar charge controller with up to 450VDC PV input, 200A Output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.

Multiple independent MPPT tracking inputs With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your specific location.

Isolated PV connections for additional safety Full galvanic isolation between PV and battery connections provide additional overall system safety.

Wide MPPT voltage range 80 – 450 VDC PV operating range, with a 120VDC PV startup voltage.

Light weight, efficient and quiet Thanks to high frequency technology and a new design this powerful charger weighs only 13.7 kg for the 200A model. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth The display reads battery, and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.

PV Isolation resistance monitoring for peace of mind at higher voltages The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.

VE.Can and VE.Direct port for connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronize their charging.

I/O Connections Programmable Relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron smallBMS, and other BMS with allow-to-charge signal.

6mm² Solar Cable - Price is for a 100 meter reel. If you wish to buy in lower quantity meter lengths, please see https://www.bimblesolar.com/6mmcable

Double Insulated UV protected solar cable

Max load: 70A in air

Our solar cable is ozone resistant according to BS EN 50396

UV resistant according to HD 605 S2 and is tested for durability according to EN 60216

Flexible tinned copper conductor

Conductor
Class 5 flexible tinned copper conductor
Insulation
Halogen-free cross-linked compound
Sheath
Halogen-free cross-linked, flame retardant compound
Sheath Colour
Black
Other colours available on request if bulk order

A set of battery brackets which allows vertical stacking of the Pylon US5000 battery unit. 1 set required per battery.

The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. The internal cable connections are M8.

For the Lynx product that accepts the mega fuses see: https://www.bimblesolar.com/V-LYNX-DIS-M10

300A Battery isolator switch, 900A for 30 secs, up to 48 Volt, M10 connection. Can be use on 12, 24 or 48 Volt system as long as switch current rating is not exceeded.

**Please note: as per the image, the switch does not come with hardware to fix the 2 sections together, and this must be purchased separately, depending on type of installation (surface mount, panel mount, etc)**

BLUE SEA M-SERIES SELECTOR SWITCHES

M-SERIES BATTERY SWITCHES

300 Ampere continuous rating.

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3⁄8" (M10) ring terminals
• 7⁄8" (22mm) stud length accepts multiple cable terminals
• One-piece terminal stud design never loosens over time
• Case design allows surface or rear panel mounting options
• Label with international legends
• Tactile indicator conveys knob position by feel

Regulatory

• CE marked, ISO 8846
• UL Listed - UL 1107 electric power switches
• Meets ABYC requirements
• Meets UL1500 and SAE J1171 external ignition protection requirements
• IP66 protects against powerful water jets

The GX Touch 50 is the display accessory for our Cerbo GX. The five inch a touch screen display gives an instant overview of your system and allows to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, its super slim waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

The display comes with a 2m long HDMI and USB cable for connection to the Cerbo GX.

Download full specsheet

Pylon battery cable accessory kit for use with all the different battery models. Each battery unit includes the interlink battery cables for parallel connection to another battery, whereas this pack is for connecting to the inverter/charger.

Please check the number of cable packs you need, according to your inverter/charge specifications. Each cable pack is rated at 100A continuous, and 125A peak.

This cable pack includes the following cables:

2 x 2m long power cables (1x positive and 1x negative) The cables are 25mm² and have an M8 eyelet on one end of each cable.

Latest version!

The main differences between the original version and this MK2 version are:

• Two fully functional canbus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port.
• VE.Can 1 is isolated. On previous models, there was no isolated canbus port.
• RJ-45 sockets have been rotated 180 degrees, so its easier to take the cables out.
• All three USB ports are fully functional. Instead of two functional and one for power (to a GX Touch) only.
• Digital inputs can do pulse counting

The Victron Cerbo is the all-new communication-centre allowing you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.

The Lynx Distributor contains a positive and a negative busbar. The positive busbar has four fuse-protected connections with fuse monitoring. The negative busbar has four connections and a ground connection.

The fuse and cable connections are always M8. The Lynx Distributor has a power LED and four fuse status indication LEDs. If connected to a Lynx Smart BMS, up to 4 Lynx Distributors can send fuse status information to the Lynx Smart BMS. This feature is not available when connected to a Lynx Shunt VE.Can.

It will monitor the status of each fuse and indicate its condition with a LED if used in conjunction with Lynx Shunt VE Can. The Lynx Distributor is part of the modular Lynx distribution system. See here for the Lynx Power In bus bar: https://www.bimblesolar.com/V-LYNX-PWRIN-M10

LB Series DC Switch Disconnects comply with the latest specifications for modern low voltage devices. Outstanding electrical characteristics of LB Switches with compact design, contribute to space saving installation and operational convenience. Basic construction and design of the switch makes it compact, safe and highly reliable. The switch uses polyamide glass filled material, having excellent track resistance (CTI) for Insulation to prevent flashover even in the most severe conditions. The special contact design and configuration makes the switch highly reliable to withstand high short circuit currents.

Features

• Compact and reliable
• Finger protection
• Easy installation
• Wiping contacts
• Excellent switching and high short circuit capacity

Applications

• Photovoltaic - Isolators
• Isolator
• Main Switch
• Emergency ON/OFF
• Inverter Applications
• AC / DC Changeover in Solar Pumps

Enclosure Technical

• Degree of Protection: IP66
• Switch rear mounted for easy connection
• Enclosure colour: Dark grey base and light grey cover.
• Switch mounted in ABS enclosure.
• Round padlocking device (Max.3 padlocks) to prevent the Switch from being made ON by unauthorised personnel
• Interlock Feature (Cover opens only in OFF position)
• 4 + 4 Knockouts so two strings can be wired (500V / String)
• M12 Knockouts suitable for MC4 Connectors
• Switch rated at 1500V

Comes with a really handy key for checking connections when the cover is off .

Knock outs are also screw in which is really easy

70mm² cable per meter, Class 6 multi-stranded extra flexible tinned copper conductor, 355A rated for 5mins @ 100% Duty cycle

Conductor diameter 9.4mm, Overall diameter including sheath 16mm

Why Orange?  Why no Red & Black options...

We only sell loose orange weld cable which is better than the red or black alternatives. It's top quality tinned copper cable, you need to accept the colour of the sheath or heat shrink over it. The benefits of tinned copper is better conductivity and much great corrosion resistance for marine and mobile applications.

In addition, our battery cables are manufactured in accordance with BS 638 Part 4 & EN 50525-2-81. It has a rubber compound to achieve the 85deg temp rating to meet all the requirements of EM5, that allows the cable to achieve the increased current carrying capacity.

Inferior cable has PVC instead of rubber and can only achieve a 70deg temp rating, which suggest a reduced current carrying capacity and inability to meet EM5 standards.

70mm² cable per meter, Class 6 multi-stranded extra flexible tinned copper conductor, 355A rated for 5mins @ 100% Duty cycle

Conductor diameter 9.4mm, Overall diameter including sheath 16mm

Why Orange?  Why no Red & Black options...

We only sell loose orange weld cable which is better than the red or black alternatives. It's top quality tinned copper cable, you need to accept the colour of the sheath or heat shrink over it. The benefits of tinned copper is better conductivity and much great corrosion resistance for marine and mobile applications.

In addition, our battery cables are manufactured in accordance with BS 638 Part 4 & EN 50525-2-81. It has a rubber compound to achieve the 85deg temp rating to meet all the requirements of EM5, that allows the cable to achieve the increased current carrying capacity.

Inferior cable has PVC instead of rubber and can only achieve a 70deg temp rating, which suggest a reduced current carrying capacity and inability to meet EM5 standards.

**Please note: these fuse holders are designed to be opened in a specific way (see attached diagram in downloads section for guidance). Failure to follow the correct method will result in damage to the fuse holder, which is not covered by warranty.**

Fuse holder for NH type fuses, suitable for protecting and isolating cables between the battery and inverter or PV charge controller and the battery. Integrated handle enabling use as an isolator.

The 3 pole holder can be used to fuse and isolate both positive and negative at the same time, leaving a spare pole, or the positive conductor from 3 charge controllers or batteries, for example.

NH00 rated at  250VDC, 160A,

Choose NH00 or NH000 fuses separately

One pole DIN rail mount fuse holder for 10 X 38 type fuses, suitable for protecting and isolating solar panel strings between the array and the charge controller input for example.

Rated to 1000VDC, 32A, accepts up to 16mm² cable. For use stand alone or for incorporation into a PV combiner Box with the 13 way bus bar and feeder terminal to take off  the supply to a solar charge controller or solar inverter.

Choose fuse separately

Item dimensions 75mm H X 16mm W X 55mm D

The crimp-free Stäubli PV connector: MC4-Evo ready

The Original MC4 product portfolio now offers a PV connector with the easy-to-use snap-in technology. This PV DC connector is quick to install as it enables crimp-free assembly without the need for special tools. The reduced complexity of the assembly process allows to save time while granting Stäubli quality.

The MC4-Evo ready is mateable with the Stäubli Original MC4 product portfolio as proved by TÜV Rheinland interoperability test with triple test severity.

CLICK HERE for instruction video from Stäubli

Safe connections: quick and easy installed

The crimp-free Original MC4-Evo ready complements the Stäubli PV DC product range of cable couplers for in-string and homerun connections. The new connector provides safe connections that are quick and easily installed for long-term reliability.

No crimping tools - Quick assembly with easy snap-in technology, Reliable connection, TÜV Rheinland certified

Product Main Features

• Crimp-free cable connection: no crimping necessary, the contact is made by an automatically closing spring clamp based on snap-in technology
• No single parts. The connectors are complete and pre-screwed: Insert the stripped PV wire, screw on the housing: done!
• Mateable with Original MC4 product portfolio

It is acceptable to hand tighten these connectors, but if you wanted to use a spanner type Staubli tool the reference is 32.6070 (MC4-MS-EVO READY) and currently you will need to source this yourself.

Protect your off-grid or grid tied PV system from unexpected string faults using Mersen’s HelioProtection® fuse line

Developed specifically for the protection of PV string wiring for 1000VDC industrial rooftop and utility scale photovoltaic systems. Its robust construction makes it ideal for continuous temperature and current cycling withstand adding to system longevity. The 1000VDC rated fuse is designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays.

The 10 X 38mm fuse can be used standalone with the DIN mount string fuse holder to fuse a single circuit or as a bank of fuses in a solar combiner box.

This item fits String Fuse holder

Premium Enhanced Cat5e UTP Patch Cables

Communications cable for use with equipment that requires ethernet RJ45 cables. This model is 3 metres long, blue in colour and the connections are booted - partially covered as per image.

• Connectors: 50 micron gold RJ45 plugs
• Cable: UL approved Cat.5 Enhanced 24AWG stranded cable
• To reduce crosstalk, short bodied connectors maintain speed & data integrity
• Moulded design suitable for advanced and new build networks

NH00 high capacity fuses suitable for protection of cables from batteries to inverters or charge controllers.

Fuses are rated at 250VDC

8 Way unit can hold our Tomzn DC and AC breakers

 Unit can hold the following options:

• 4 x AC RCBos
• 8 x DC breakers Under 60A
• 4 x DC breakers 80A - 125A
• 4 x Under 60A + 2 x Over 80A

Measurements of the consumer unit are 249mm wide, 231mm tall and <=102mm deep.

This is an empty unit, you must add the breakers you need to your cart as well, see related items tab above to see the breakers that fit.

• Complies to ISO 20934
• Cu alloy element
• Tin plated integrated heatsink
• Riveted PPA GF35 thermoplastic colour coded housing
• Colour coded housing with value in OCR font on both sides

ELECTRICAL & SPECIFICATIONS
Input Voltage 70V DC Maximum
Breaking capacity 2500A at 70VDC
Dimensions 68mm x 19mm x 10.5mm
Hole size M8
Hole centres 50.9mm
Maximum torque 12Nm ± 1 Nm
Identification Colour coded housing and value in OCR font on both sides

Use this cable to connect a CAN-bus enabled battery, not from Victron, to a Victron system. Types A - normally for Pylontech C series batteries and BYD battery applications. Please review the battery manual for details on which cable to use for which brand/model of battery.

The GX Touch wall mount accessory allows easy mounting of the GX Touch on a solid wall. No drilling or cut-out is required, other than the three screws that fix the wall mount onto the wall.

• Complies to ISO 20934
• Cu alloy element
• Tin plated integrated heatsink
• Riveted PPA GF35 thermoplastic colour coded housing
• Colour coded housing with value in OCR font on both sides

ELECTRICAL & SPECIFICATIONS
Input Voltage 70V DC Maximum
Breaking capacity 2500A at 70VDC
Dimensions 68mm x 19mm x 10.5mm
Hole size M8
Hole centres 50.9mm
Maximum torque 12Nm ± 1 Nm
Identification Colour coded housing and value in OCR font on both sides

The VE.Can RJ45 terminator comes in a bag of two when ordered separately. The terminators are also included with some products, for example with the CANUSB.

25mm squared cable end lug for crimping onto 25mm² multi-stranded battery cable. Heavy duty lug with flared cable entry. Tin plated copper. Made in the UK
