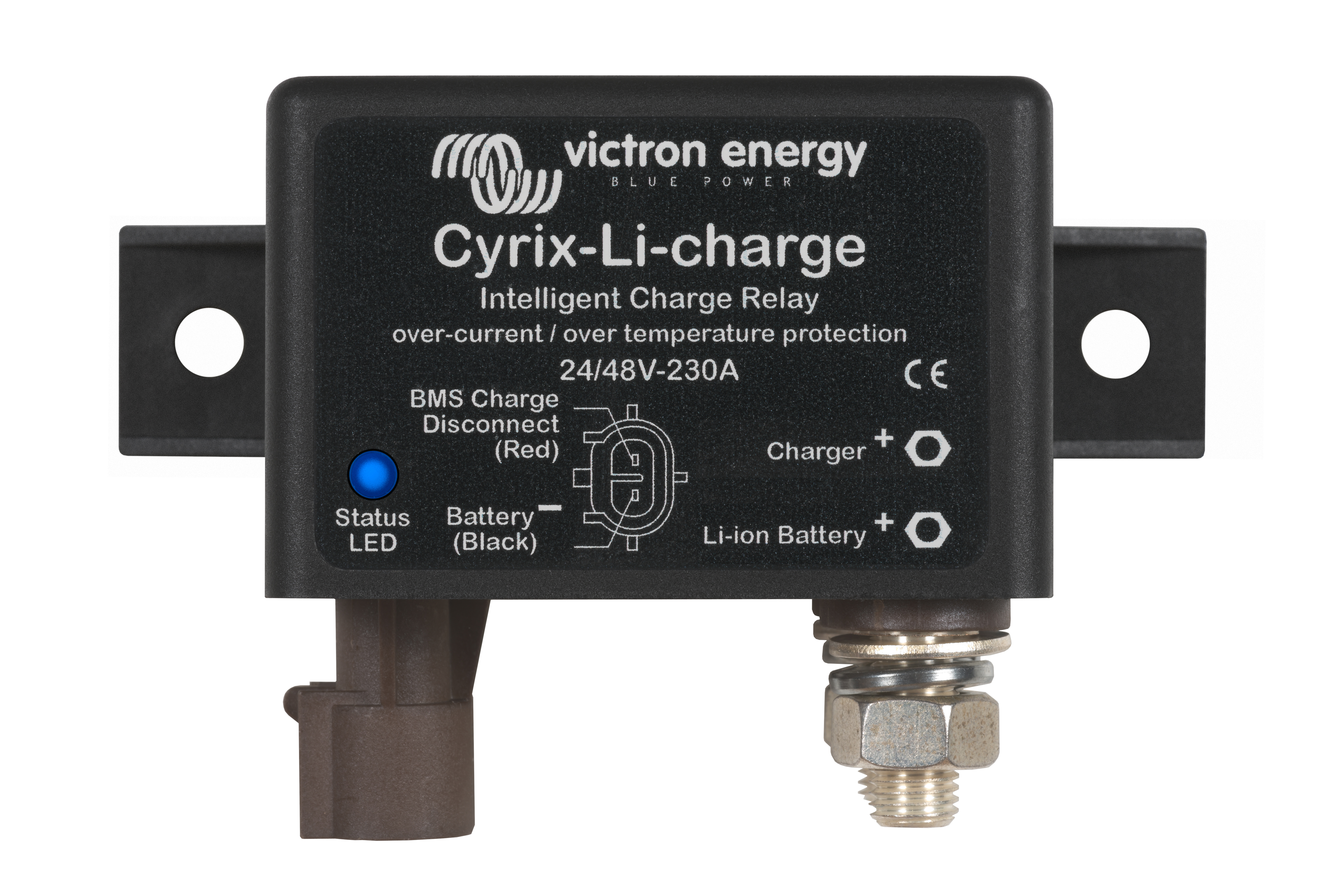

Victron Cyrix Li Charge 24/48V - 230A intelligent charge relay

Victron Cyrix Li Charge 24/48V - 230A intelligent charge relay
Brand: Victron Energy
Price: £92.62 +vat
£111.14 (No VAT, outside of UK)
Pay Monthly Finance - Apply Now
Availability: In Stock - Delivery 1-3 days or collect from near Lewes

SKU: CYR020230430

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.


ID: 2430

Victron Cyrix-Li-Charge

The Cyrix-Li-Charge will connect a battery charger with 3 seconds delay: - if the charge disconnect output of the VE.Bus BMS is high, and - if it senses 13,7 V (resp. 27,4 V or 54,8 V) or more on its battery charger connection terminal, and - if it senses 2 V or more on its battery terminal (the Cyrix will remain open if not connect to the battery). The Cyrix-Li-Charge will disengage immediately whenever its control input becomes free floating, signalling cell over voltage or cell over temperature. In general a cell over voltage alarm will reset shortly after charging has been stopped. The Cyrix will then reconnect the charger after a delay 3 seconds. After 2 attempts to reengage with 3 seconds delay, the delay increases to 10 minutes. Whenever battery voltage is less than 13,5 V (resp. 27 V or 54 V), the Cyrix will disengage with a delay of 1 hour. Note 1: In case of zero discharge current, or a small discharge current, the Cyrix will not disengage shortly after the charger has been switched off and/or disconnected, because battery voltage will remain higher than 13,5 V. Note 2: If, after the Cyrix has disengaged, the output of the battery charger immediately increases to 13,7 V or more, the Cyrix will reengage, with 3 seconds delay

Victron Specifications
Nominal Battery Voltage 24V or 48V (automatic detection)
Continuous Current1224 230 A
Continuous Current48 80 A
Connect Profiles See our website
Control Input The Cyrix engages when the control input is high (appr. Battery voltage) The Cyrix disengages when the control input is left free floating or pulled low
Current Consumption Open 4 mA
Led Status Indication 1
Control Cable Included 1
Protection Category IP54
Weight 0.27 kg
Height 65 mm
Width 100 mm
Depth 50 mm
Cable Connection
Type and size See Manual
Size mm2 See Manual
Manufacturer Warranty
Standard Warranty: 5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions: Lead acid batteries 2 years
Lithium batteries 3 years
