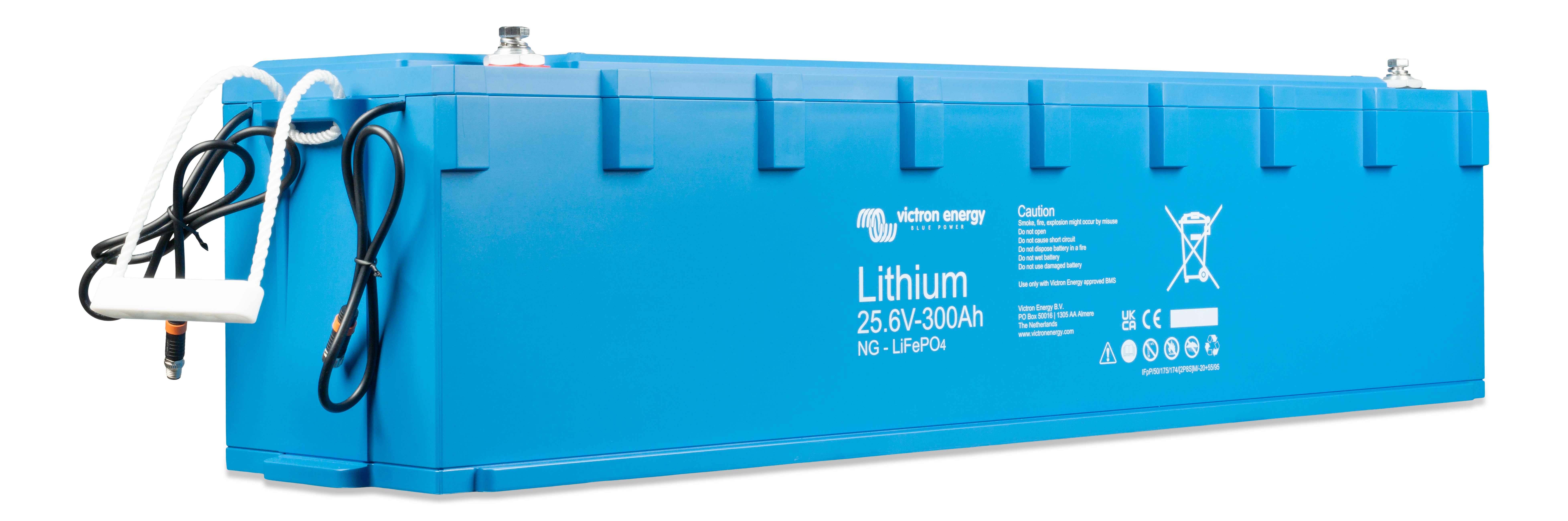

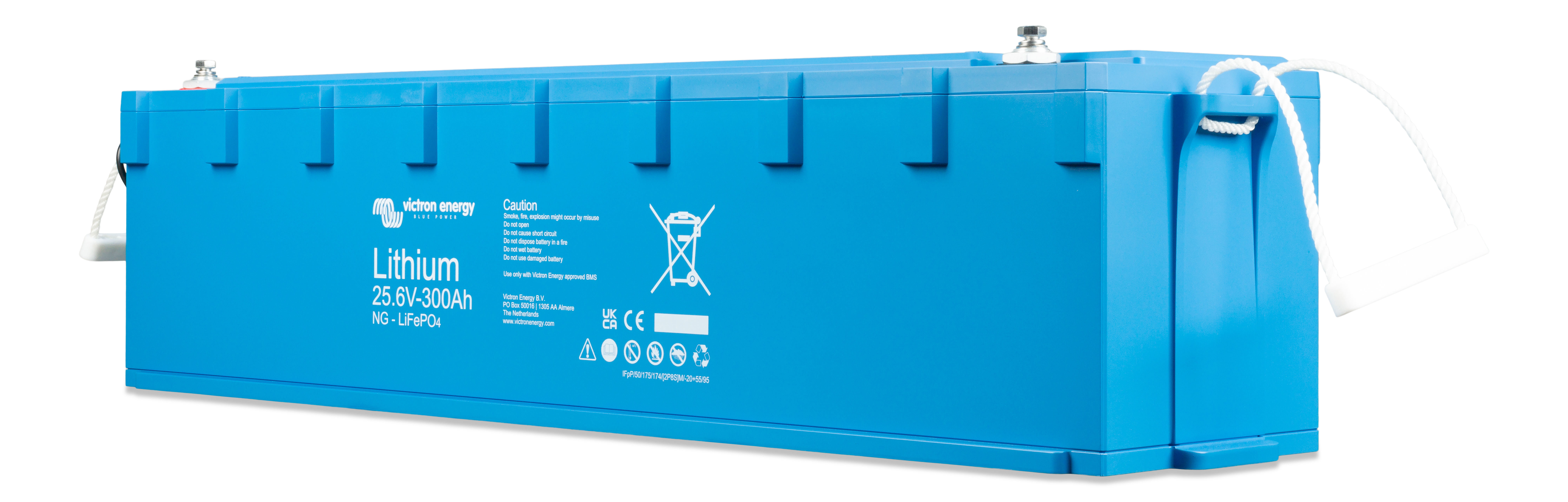

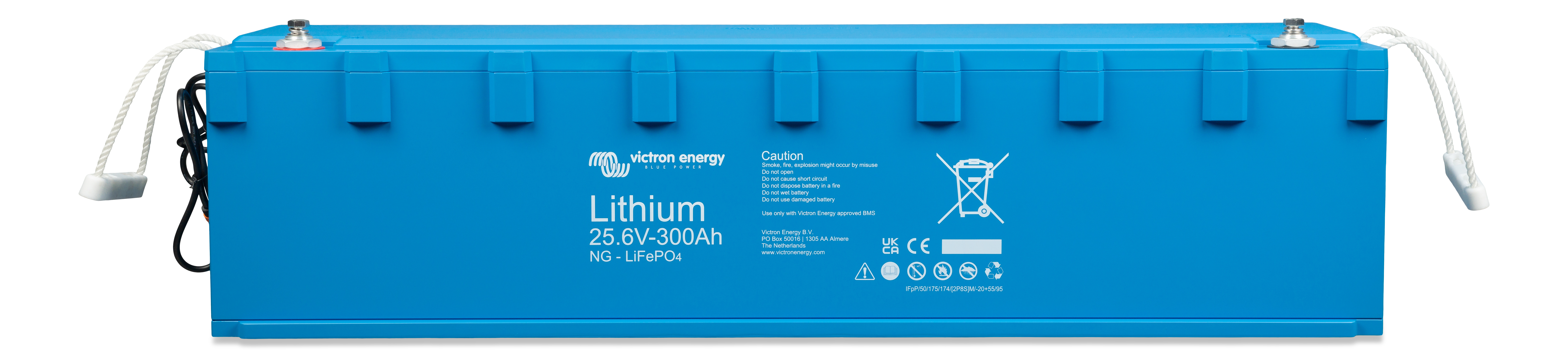

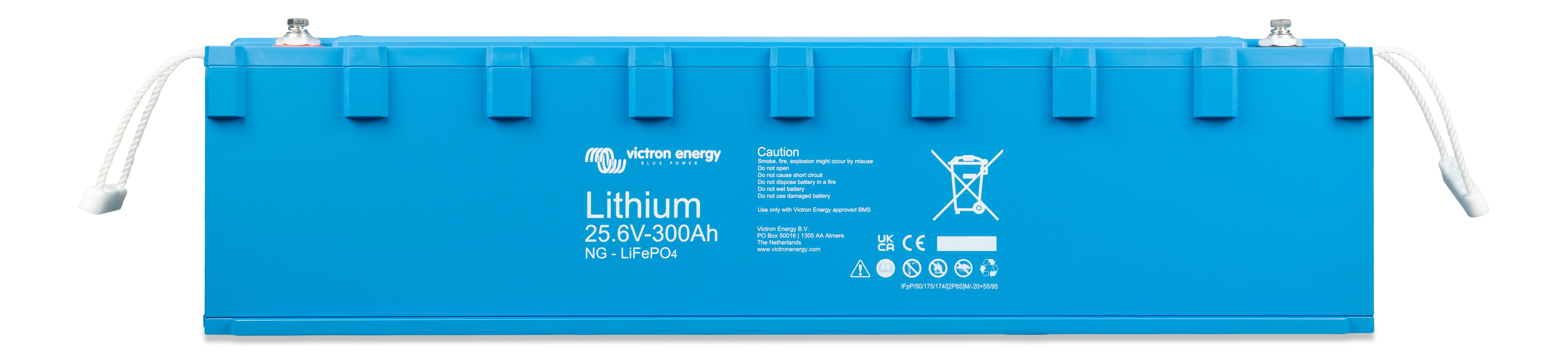

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO₄ or LFP) batteries available in various capacities with nominal voltages of 12.8 V, 25.6 V and 51.2 V.
They can be connected in series, parallel, or a combination of both to create battery banks for system voltages of 12V, 24V, or 48V.
A maximum of 50 batteries can be used when configuring a bank with 12V or 24V batteries, while up to 25 batteries can be used with 48V batteries. This allows for a maximum energy storage capacity of 192 kWh with 12V batteries, up to 384 kWh with 24V batteries, and 128 kWh with 48V batteries.
Integrated shunt
The battery data (battery voltage, current and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication centre, or to create and issue specific warnings and alarms.
Automatic setup, monitoring and control via VictronConnect App or a GX device and the VRM Portal
All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series and series/parallel connection. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately. Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication centre or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current and temperatures in real-time. The battery firmware is automatically updated by the BMS.
Easy bracket mounting
Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.
Increased ingress protection (IP-rating)
The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.
Low self-discharge rate
The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.
Our Lithium NG batteries have integrated cell balancing and cell monitoring. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS).
Battery Management System (BMS)
The BMS will:
1. Generate a pre-alarm whenever the voltage of a battery cell decreases to less than 3.0 V.
2. Disconnect or shut down the load whenever the voltage of a battery cell decreases to less than 2.8 V.
3. Stop the charging process whenever the voltage of a battery cell increases to more than 3.6 V or when the temperature becomes too high or too low.
See the BMS datasheets for more features.
| Victron Specifications | |
| Battery Voltage Nominal | 25.6 V |
| Battery Voltage Nominal Bucket | 24 |
| Battery Capacity Nominal | 300 Ah |
| Nominal Energy | 7,680 Wh |
| Capacity Loss | 1 % |
| Energy Loss | 1 % |
| Efficiency | 92 % |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Cycle Design Life80 | 2,500 cycles |
| Cycle Design Life70 | 3,000 cycles |
| Cycle Design Life50 | 5,000 cycles |
| Max Continuous Discharge Current | 300 A |
| Max Pulse Discharge Current | 600 A |
| End Discharge Voltage | 22.4 V |
| Internal Resistance | 1 m? |
| Self Discharge Rate | 3 % |
| Float Charge Voltage | 27 V |
| Max Continuous Charge Current | 300 A |
| Max Pulse Charge Current | 450 A |
| Max Humidity | 95 % |
| Bms | Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately |
| Cell Monitoring | Cell voltages and temperatures, battery current |
| Bms Cable | 50 cm male and female cable with M8 circular connector with high-speed digital communication |
| Alarm Feature | Pre-alarm contact on BMS |
| Bluetooth | In the BMS |
| Max Battery Per Bms | 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled) |
| Firmware Updates | Battery firmware automatically updated by BMS |
| Repairable | Yes (cover can be removed with screws) |
| Battery Terminals | M8 threaded inserts |
| Material | ABS |
| Colour | Blue (RAL 5012) |
| Protection Category | IP65 |
| Mounting Method | Strap or mounting brackets |
| Mounting Orientation | The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down |
| Weight | 52 kg |
| Height | 206 mm |
| Width | 841 mm |
| Depth | 205 mm |
| Safety Cells | UL 1973 (pending),UL 9540A (pending),IEC 62619 (pending) |
| Safety Battery | IEC 62619 (pending) |
| E MC | EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Automotive | ECE R10-6 |
| Performance | IEC 62620 |
| Battery | |
| Voltage | 25.6V |
| Length (mm) | 841 |
| Width (mm) | 205 |
| Total Height (mm) | 206 |
| Weight (KG) | 52kg |
| Cycles | 80 % DoD 2500 cycles 70 % DoD 3000 cycles 50 % DoD 5000 cycles |
| Watt Hours | 7680 |
| Chemistry | LiFePO4 |
| Charge rate (A) | 300A recommended, 450A max |
| Discharge rate (A) | 300A recommended, 600A max |
| Manufacturer Warranty | |
| Standard Warranty: | 5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote) |
| Warranty Exceptions: | Lead acid batteries 2 years Lithium batteries 3 years |
