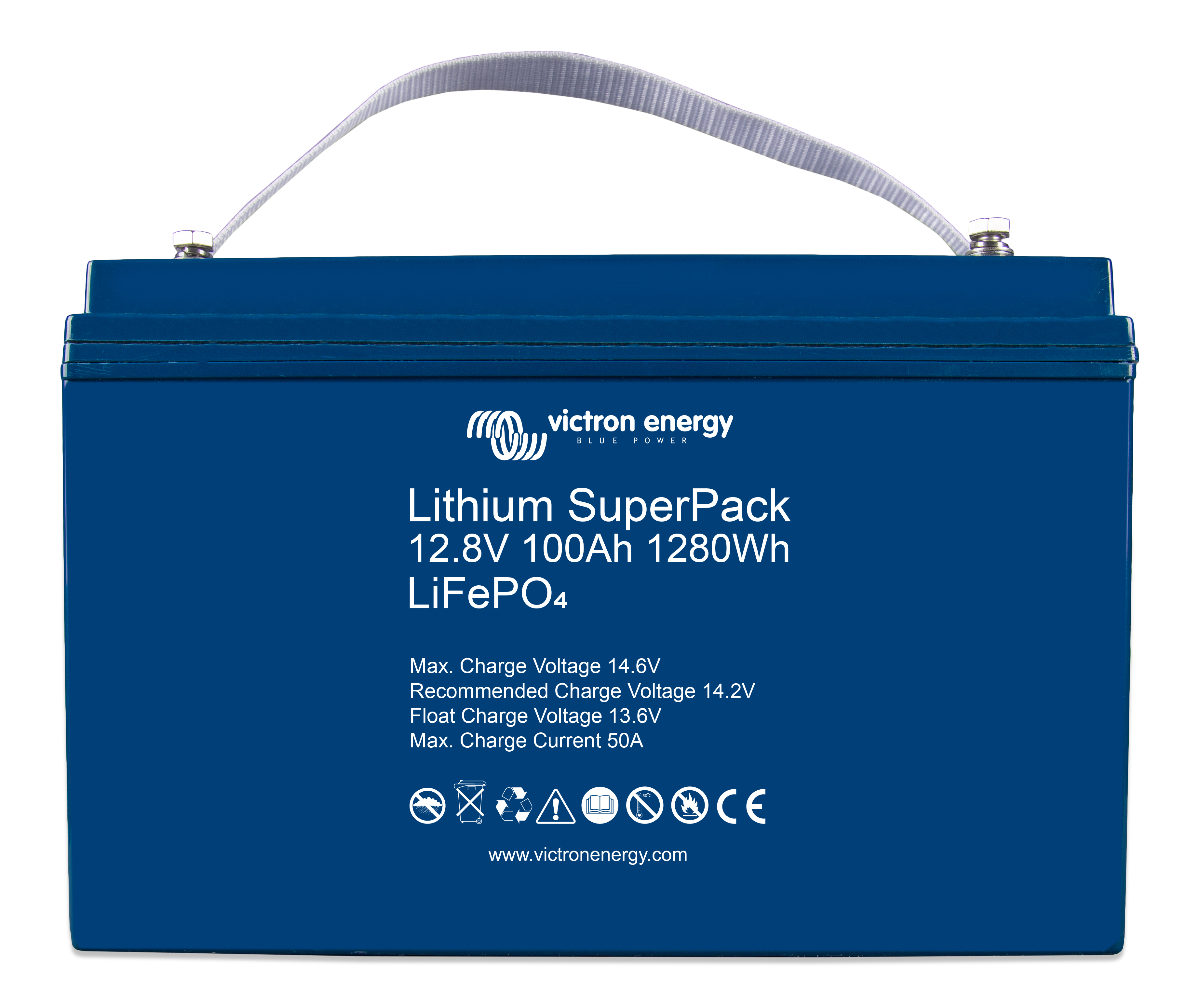

12V Victron Lithium SuperPack LiFePO4 12.8V 100AH Battery with integrated BMS and safety switch (High current discharge version)

12V Victron Lithium SuperPack LiFePO4 12.8V 100AH Battery with integrated BMS and safety switch (High current discharge version)
Brand: Victron Energy
Price: £336.46 +vat
£403.75 (including VAT)
Pay Monthly Finance - Apply Now
Availability: In Stock - Delivery 1-3 days or collect from near Lewes

SKU: BAT512110712

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.


ID: 2141

Integrated BMS and safety switch

The SuperPack batteries are extremely easy to install, not needing any additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.

The batteries can be connected in parallel. Series connection is not allowed.

Note: The Victron Lithium Superpack does not have the same discharge current capacity as the Victron Lithium Smart. Please compare the data sheets of both batteries to ensure they suit your application or ask us. This 100Ah version has high current discharge of 100A.

Victron Specifications
Battery Voltage Nominal 12.8 V
Battery Voltage Nominal Bucket 12
Battery Capacity Nominal 100 Ah
Nominal Capacity0 80 Ah
Nominal Energy 1,280 Wh
Cycle Design Life80 2,500 cycles
Capacity Loss 1 %
Energy Loss 1 %
Efficiency 92 %
Chemistry Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current 100 A
Peak Discharge Current 150 A
End Discharge Voltage 10 V
Absorption Charge Voltage Range [14.2, 14.4] V
Float Charge Voltage 13.5 V
Max Storage Time25 1 y
Max Storage Time40 3 mo
Max Humidity 95 %
Parallel Configuration Yes, Unlimited
Series Configuration No
Bms Included 1
Battery Terminals M8 threaded inserts
Protection Category IP43
Mounting Orientation Upright or on its side (providing the terminals do not face downward)
Weight 10.5 kg
Height 215 mm
Width 306 mm
Depth 169 mm
Battery
Voltage 12.8V
Length (mm) 330
Width (mm) 172
Total Height (mm) 220
Weight (KG) 14kg - Tunnel Restriction Code (E) - Packing Group II
Cycles 2500 to 80% DOD
Watt Hours 1280
Chemistry LiFePO4
Charge rate (A) 50A
Discharge rate (A) 50A (100A peak for 10s)
Manufacturer Warranty
Standard Warranty: 5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions: Lead acid batteries 2 years
Lithium batteries 3 years
