Power cable for 32K LV : 95mm2 M8 Connector end required, sold separately as loose cable and lugs for installer to make on site.
If the total parallel output current exceeds 300A, using a busbar becomes essential for system safety and stability.
Please note that only one WiFi Stick LV is needed per system, product found under 'related products' tab.
In the box - 1.4M CAN comms cable and wall mount come included.

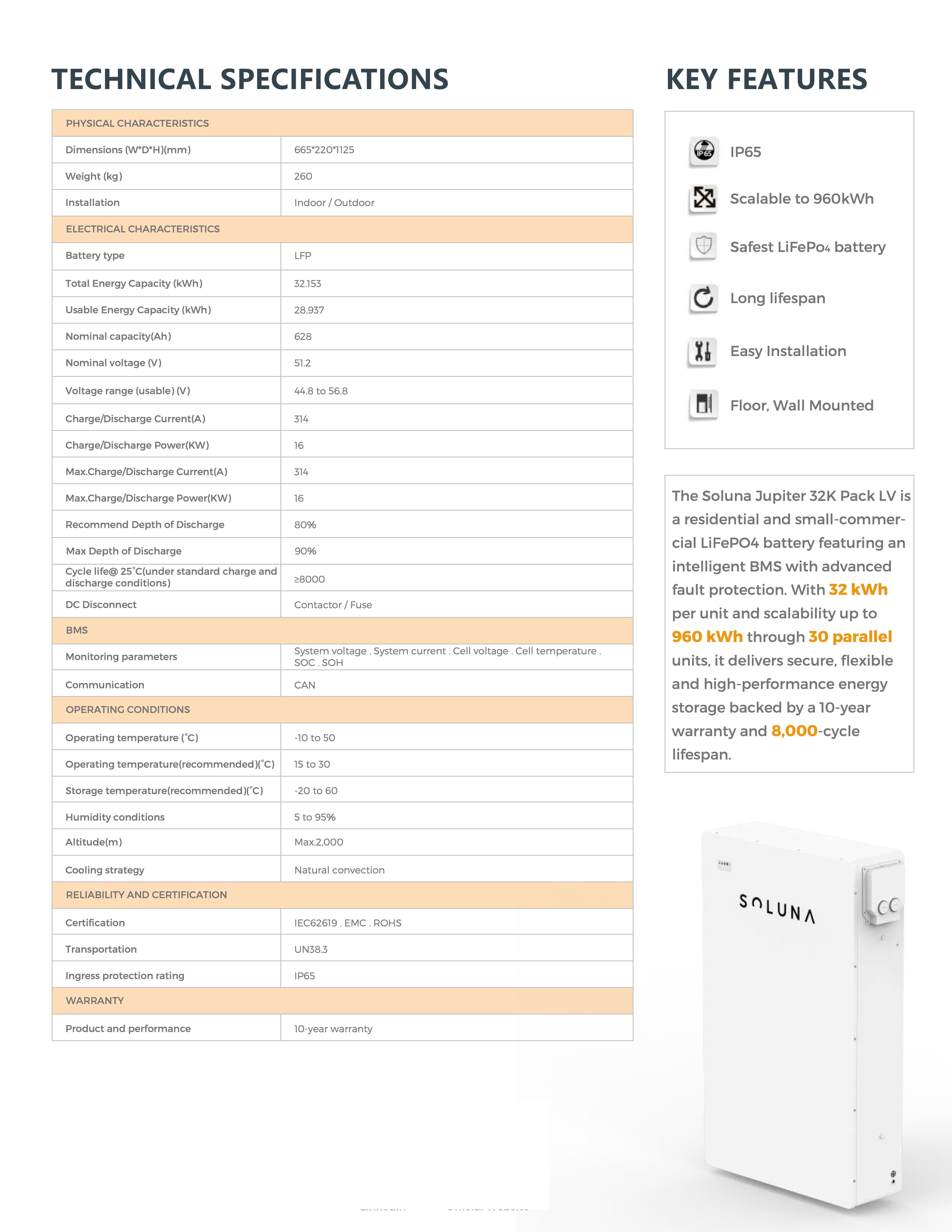

| Battery | |
| Voltage | 51.2 |
| Length (mm) | 665 |
| Width (mm) | 220 |
| Total Height (mm) | 1125 |
| Weight (KG) | 260 - Tunnel Restriction Code (E) - Packing Group II |
| Cycles | >8000 |
| Watt Hours | 32153 |
| Chemistry | LFP |
| Manufacturer Warranty | |
| Standard Warranty: | 10 year warranty for product and performance. |
