Victron 600 Amp DC bus bar, 4 terminal, tin plated copper, with ABS plastic cover

Victron 600 Amp DC bus bar, 4 terminal, tin plated copper, with ABS plastic cover
Brand: Victron Energy
Price: £79.38 +vat
£95.26 (including VAT)
Pay Monthly Finance - Apply Now
Availability: In Stock - Delivery 1-3 days or collect from near Lewes

SKU: VBB160040010

Victron Price Match, Pre-Programming, Pre-Made Boards & Extended Warranty:

We can price match or beat any supplier, do get in touch.
Pre-Programming, we can program your system to save you time & money.
Pre-made Boards, we offer mounted and wired van electrical boards also custom pre-built off grid electrical boards to any size.
Extended Victron Warranty is available 10% surcharge 5 years to 10 years.
Contact us 01273 931110 or [email protected] for any of the above.


ID: 2154

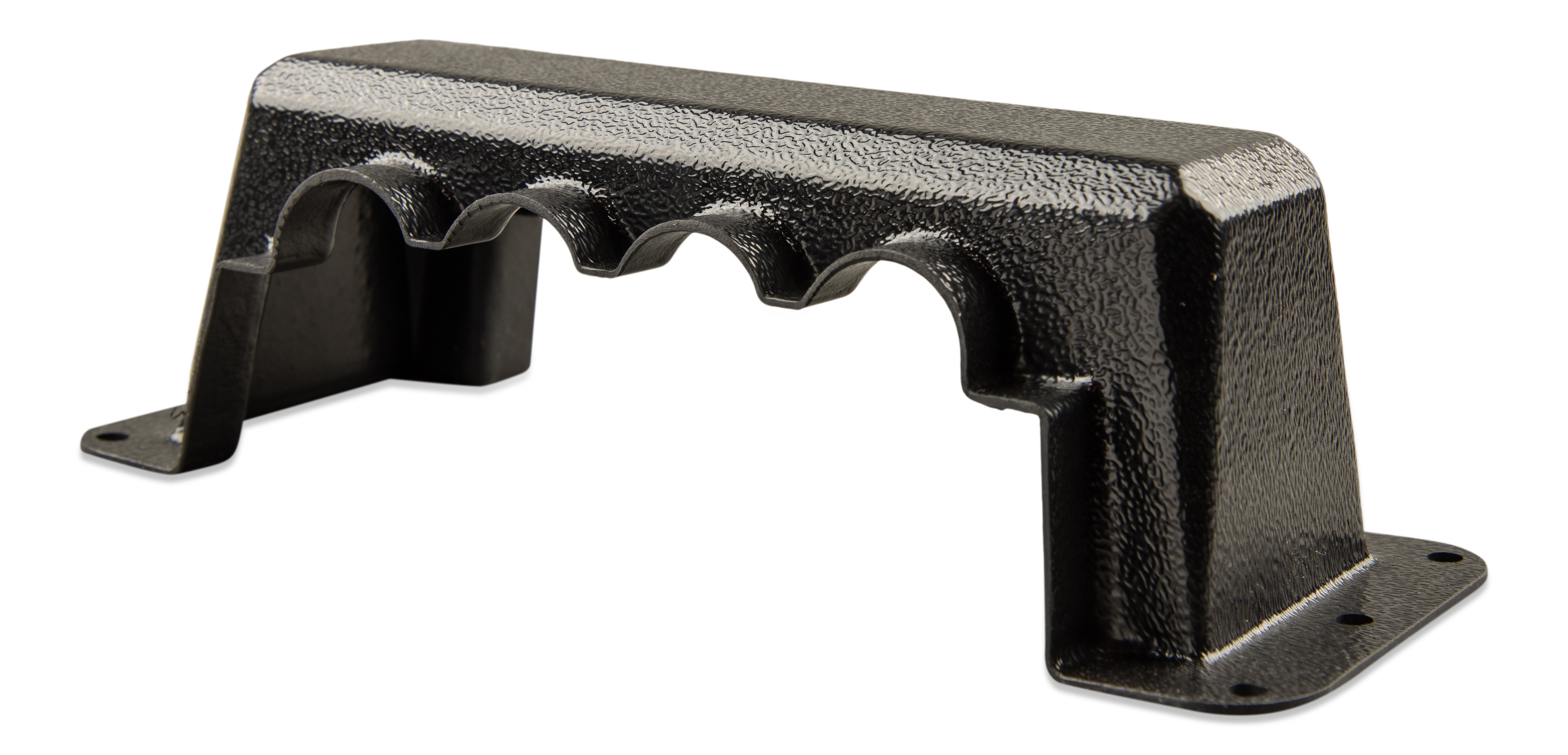

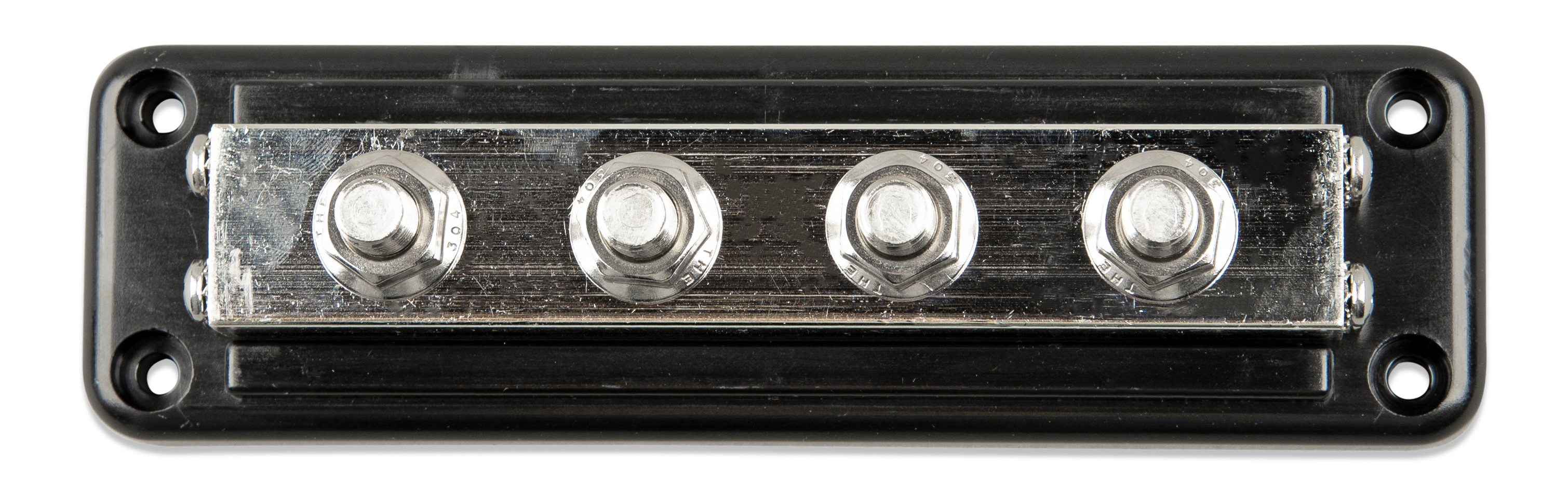

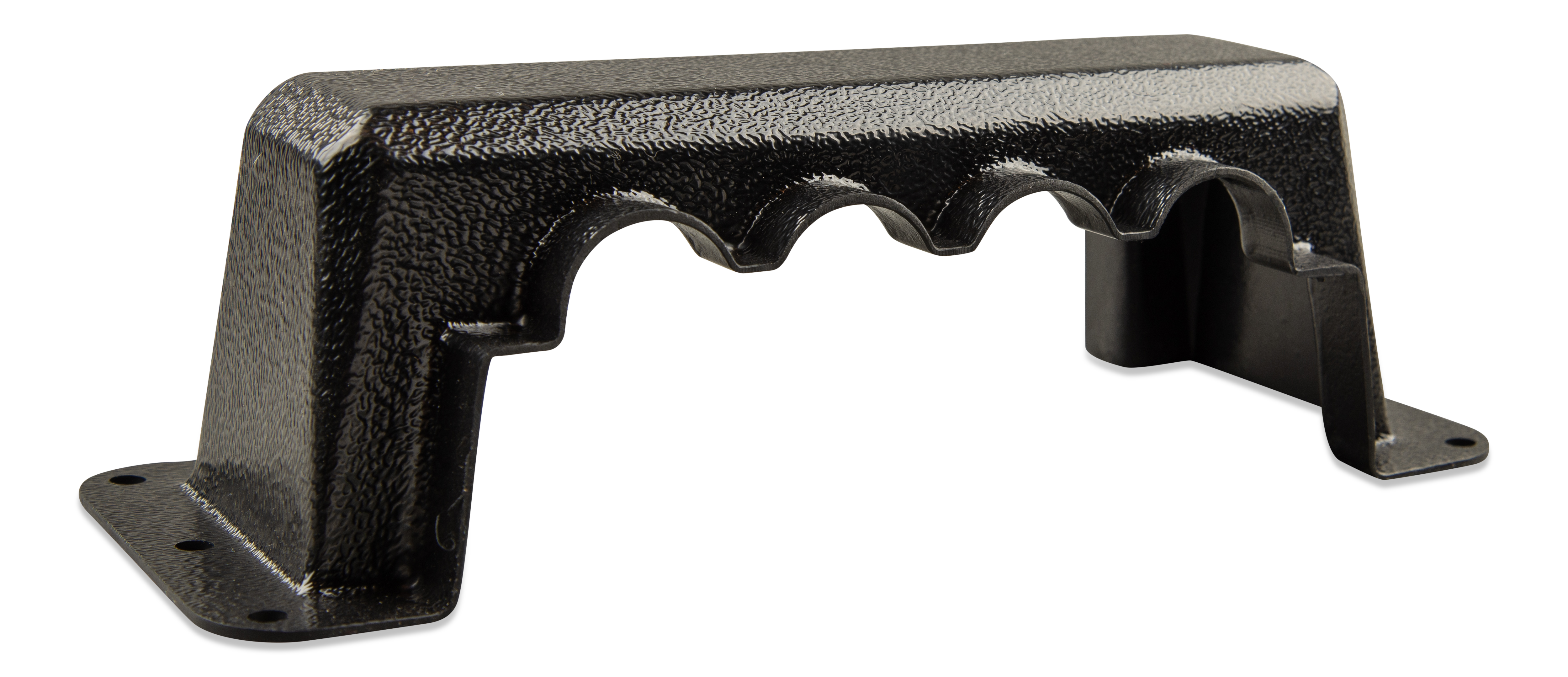

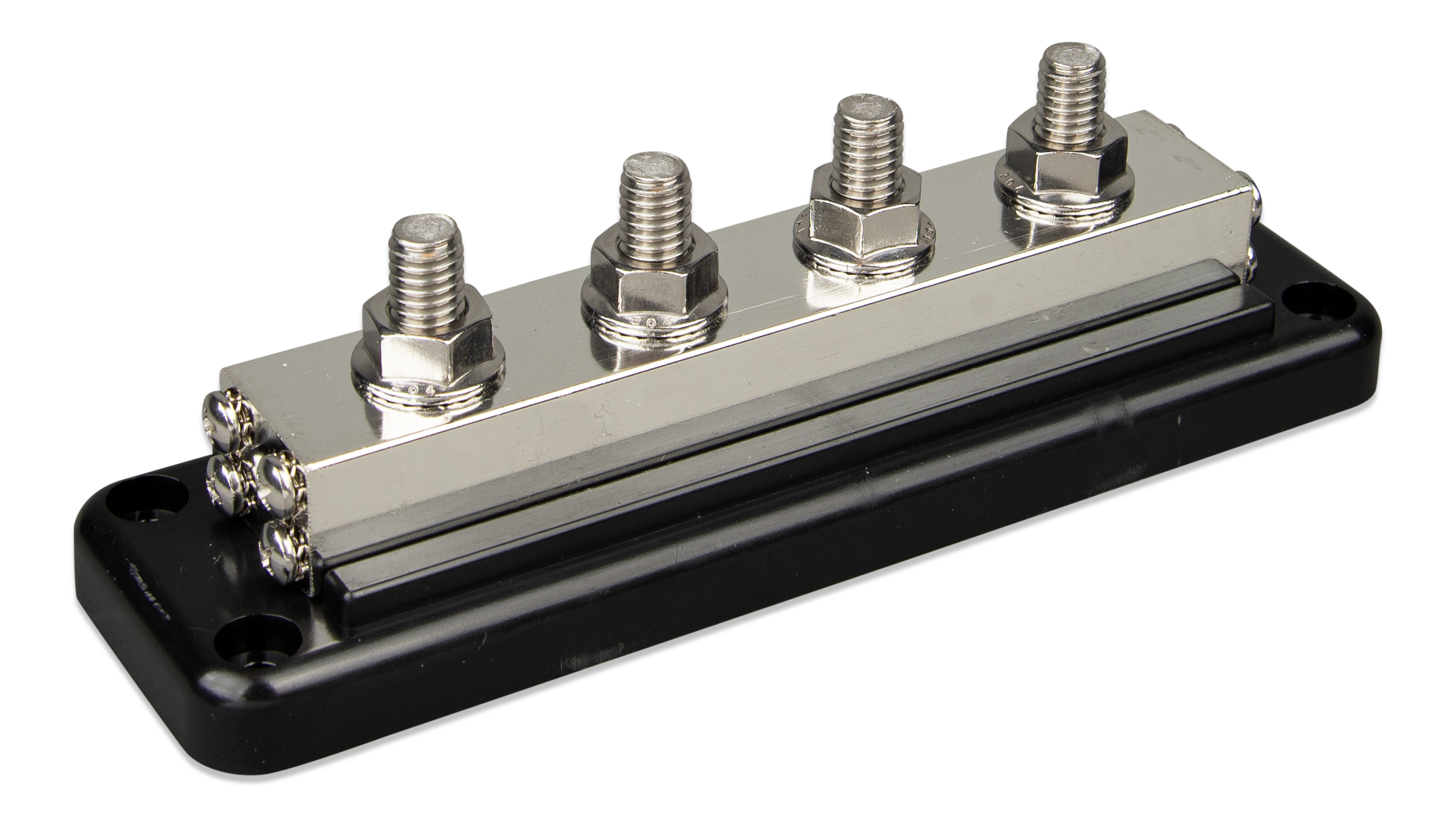

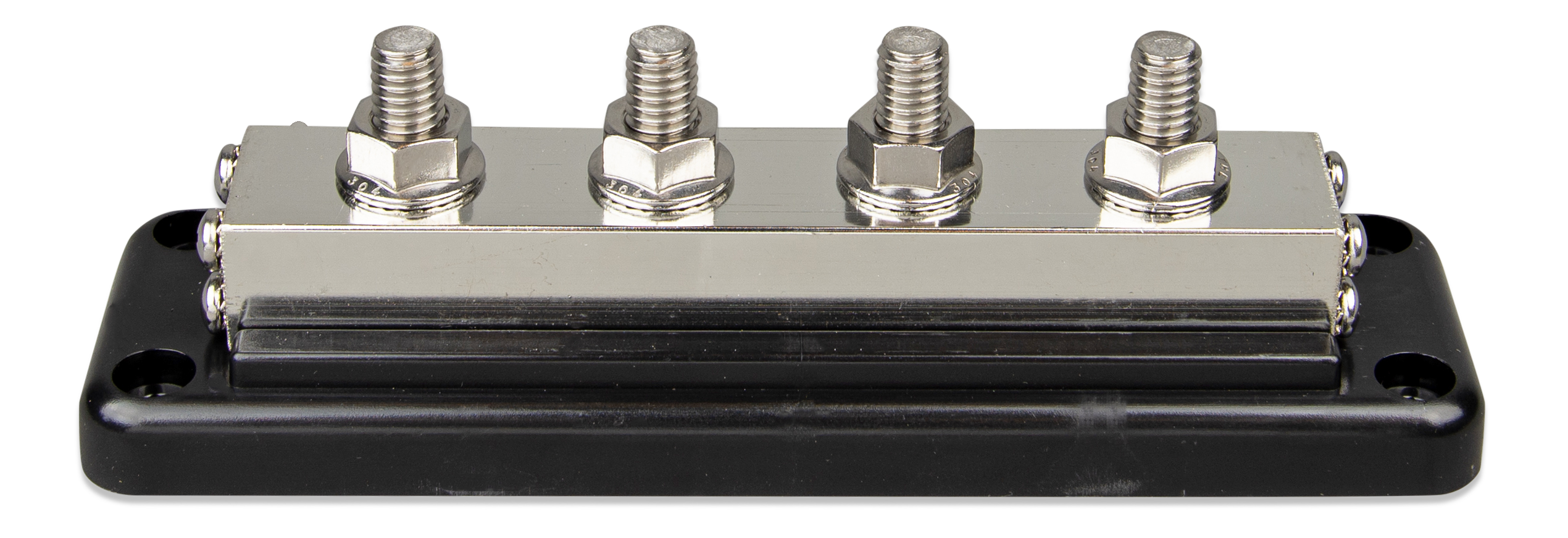

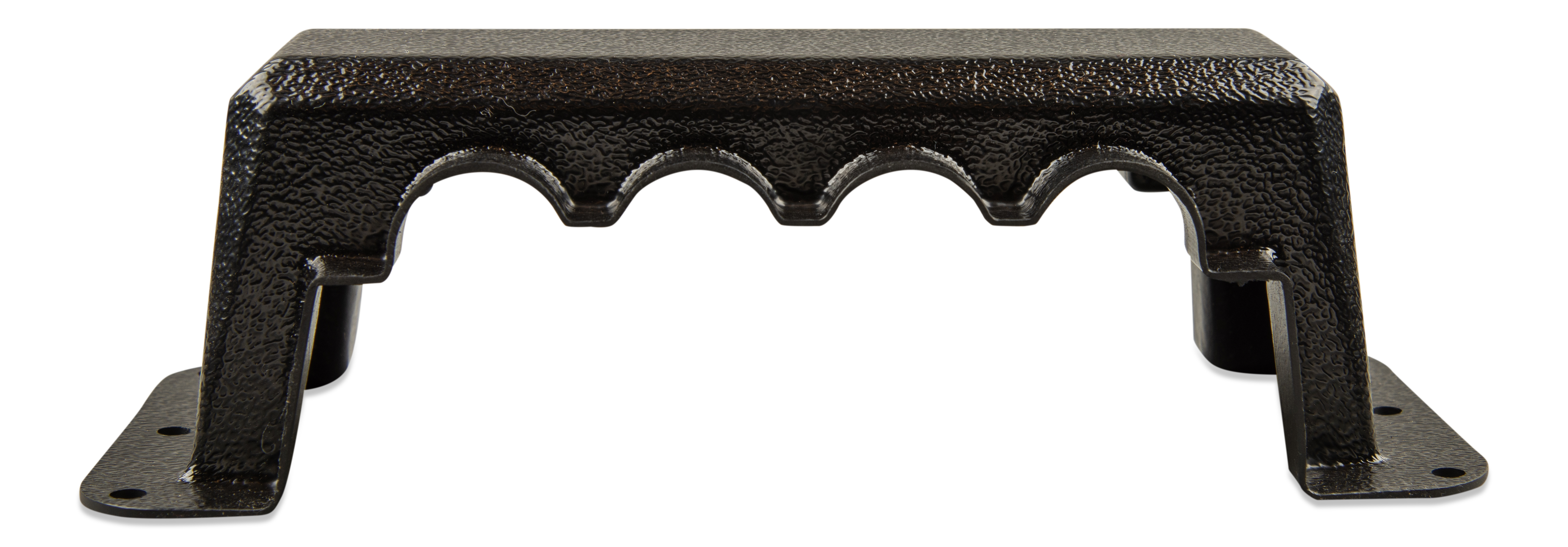

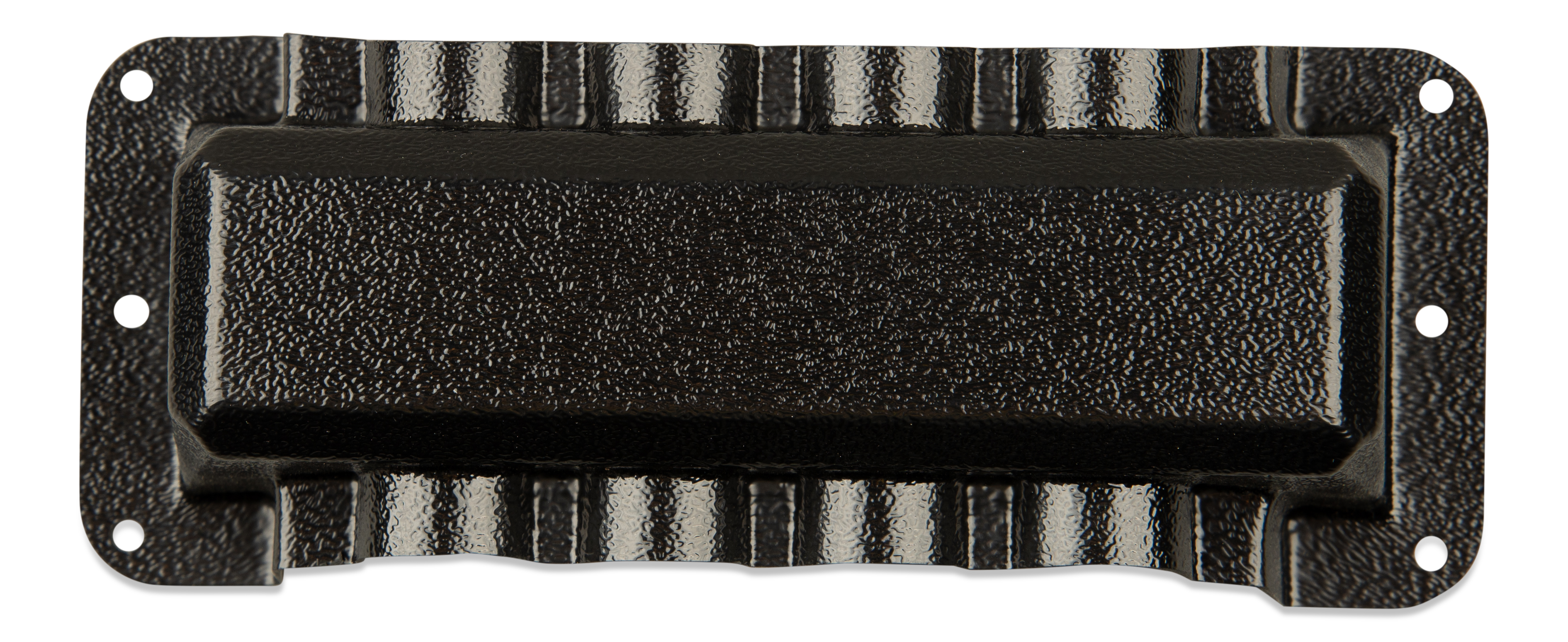

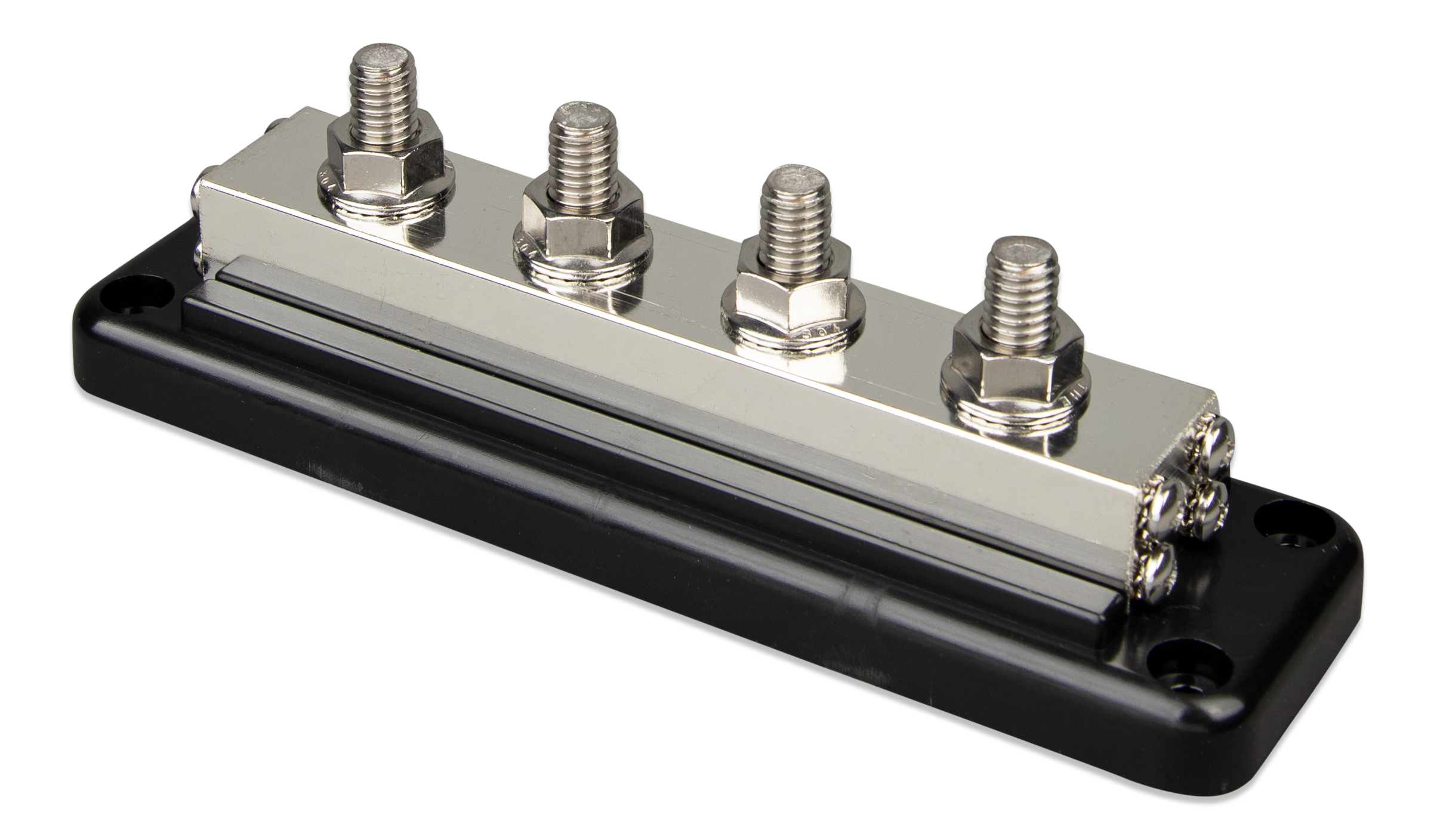

A stand alone DC bus bar 600Amp, 70 Volt DC. Tin plated copper bus bar with stainless steel stud terminals, M10 nuts and black plastic cover.

Please view the Data sheet under the downloads tab for further details and product dimensions





Victron Specifications
Max Current 600 A
Max Voltage 70 V
Busbar Material Tin plated copper
Busbar Dimensions 19mm x 24mm
Terminal Diameter1 9.35 mm
Terminal Height1 19 mm
Terminal Material Stainless steel
Hex Nut Material Stainless steel
Screw Terminal Diameter 4.2 mm
Screw Terminal Material Stainless steel
Base Material ABS
Base Colour Black
Base Fire Rating UL 94 V-0
Cover Material ABS
Cover Colour Black (RAL 9017)
Cover Fire Rating UL 94 V-2
Weight 1.7 kg
Height 65 mm
Width 216 mm
Depth 86 mm
Manufacturer Warranty
Standard Warranty: 5 years (5 years extension to 10 years for additional 10% fee - contact us for a quote)
Warranty Exceptions: Lead acid batteries 2 years
Lithium batteries 3 years
